Barometric Pressure Sensor: Service and Repair

Barometric Pressure (BARO) Sensor

Removal and Installation

1. Turn the ignition switch to the OFF position.

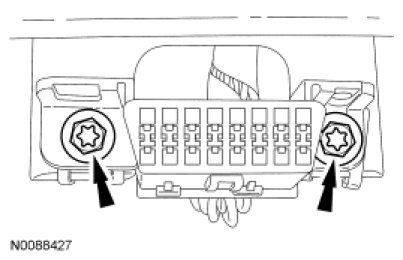

2. Remove the 2 screws from the Data Link Connector (DLC).

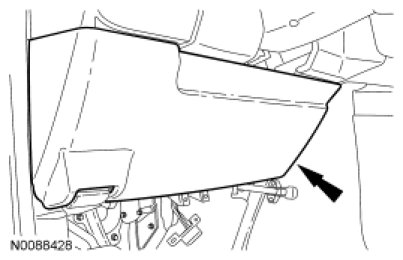

3. Remove the instrument panel steering column cover.

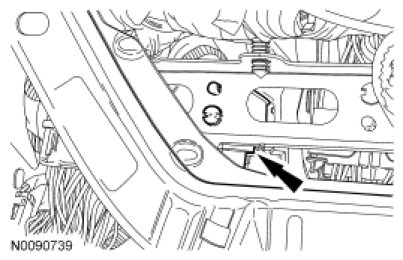

4. Disconnect the Barometric Pressure (BARO) sensor from the mounting and position out.

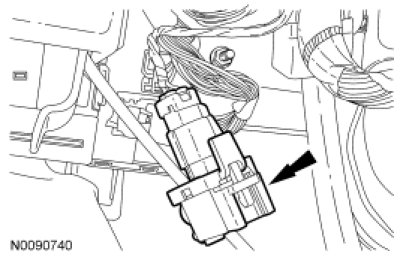

5. Disconnect the electrical connector and remove the BARO sensor.





6. To install, reverse the removal procedure.
