Exhaust Pressure Sensor: Service and Repair

Exhaust Pressure Sensor









Removal and Installation

1. Turn the ignition switch to the OFF position.

2. Remove the engine cover.

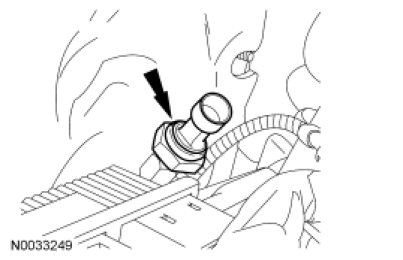

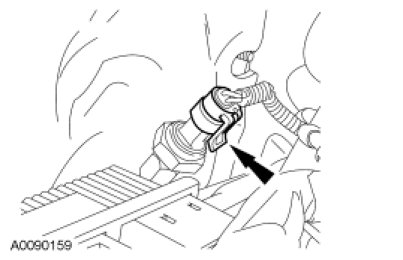

3. Disconnect the Exhaust Pressure (EP) sensor electrical connector.





4. NOTICE: Support the Exhaust Pressure (EP) sensor tube flange nut when removing the EP sensor, or damage to the tube may occur.

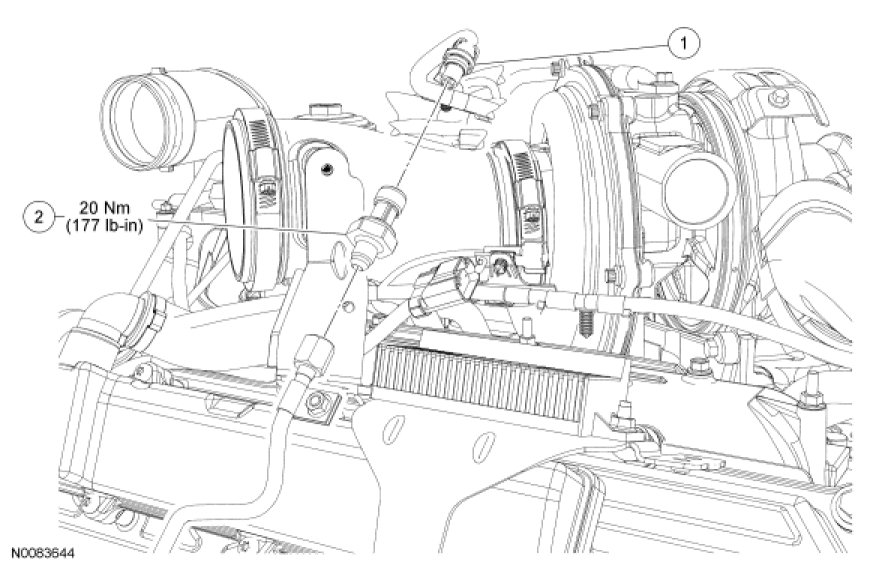

Remove the EP sensor.
- To install, tighten to 20 Nm (177 lb-in).





5. To install, reverse the removal procedure.
