Connecting Rod, Engine
CONNECTING ROD6.0L (Hydraulic Valve Adjuster / Camshaft / Cylinder Block / Crankshaft):
6.0L (Crankshaft / Piston And Connecting Rod):
a Refer to the Cylinder Head Distortion procedure.

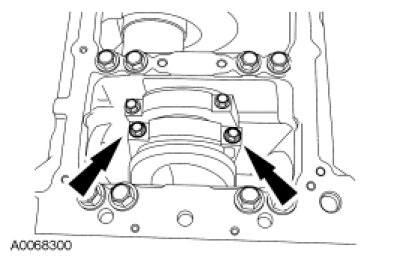

ROD BEARING CAP
Install the connecting rod cap and tighten the bolts in 2 stages.
Stage 1: Tighten to 43 Nm (32 lb-ft).
Stage 2: Tighten to 68 Nm (50 lb-ft).
