Piston, Engine

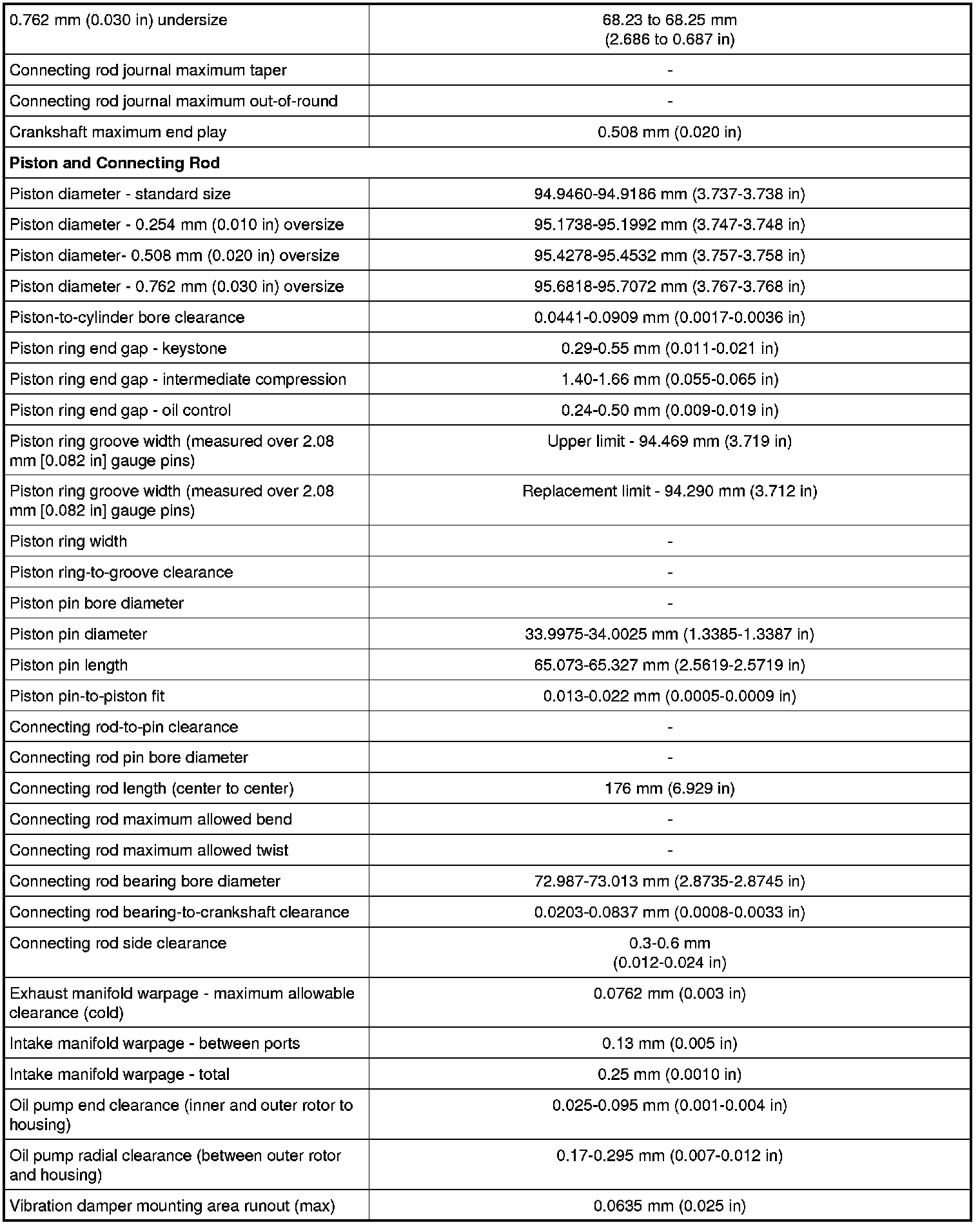

6.0L (Crankshaft / Piston And Connecting Rod):





6.0L (Piston And Connecting Rod):





a Refer to the Cylinder Head Distortion procedure.
