Intake Manifold

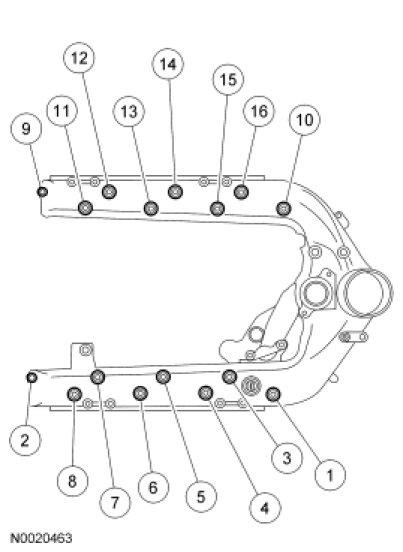

Install the intake manifold, 5 stud bolts and 11 bolts. Tighten in 3 stages, in the sequence shown.

Stage 1: Loosely installed bolts 1-8.
Stage 2: Tighten bolts 9-16 to 11 Nm (97 lb-in).
Stage 3: Tighten all bolts to 11 Nm (97 lb-in).
