Acceleration/Deceleration Sensor: Service and Repair

Stability Control Sensor Cluster













Removal and Installation

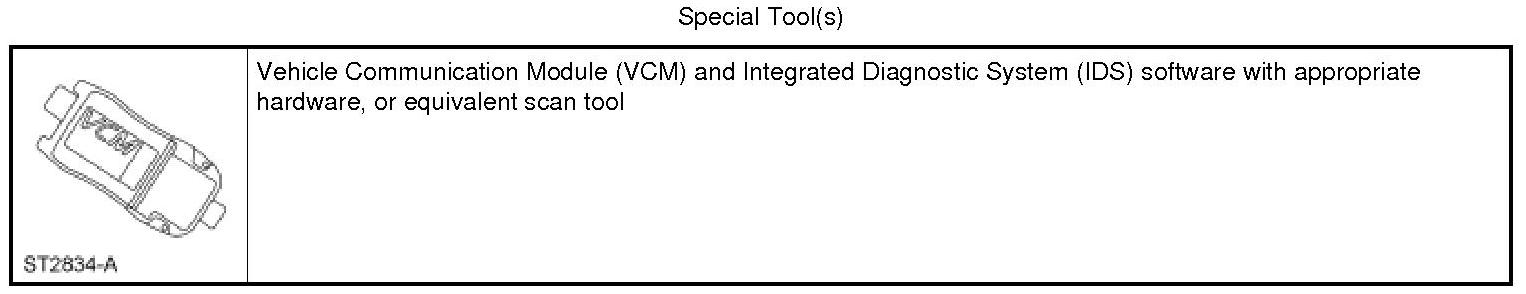

NOTE: When installing a new stability control sensor cluster, the sensor cluster must be calibrated. Follow the scan tool directions for the calibration procedures.

1. NOTE: The sensor is located on the RH side of the vehicle, under the rear seat.

Remove the rear seat.

2. Remove the right rear scuff plate.
- Position the carpet aside.

3. Disconnect the stability control sensor cluster electrical connector.

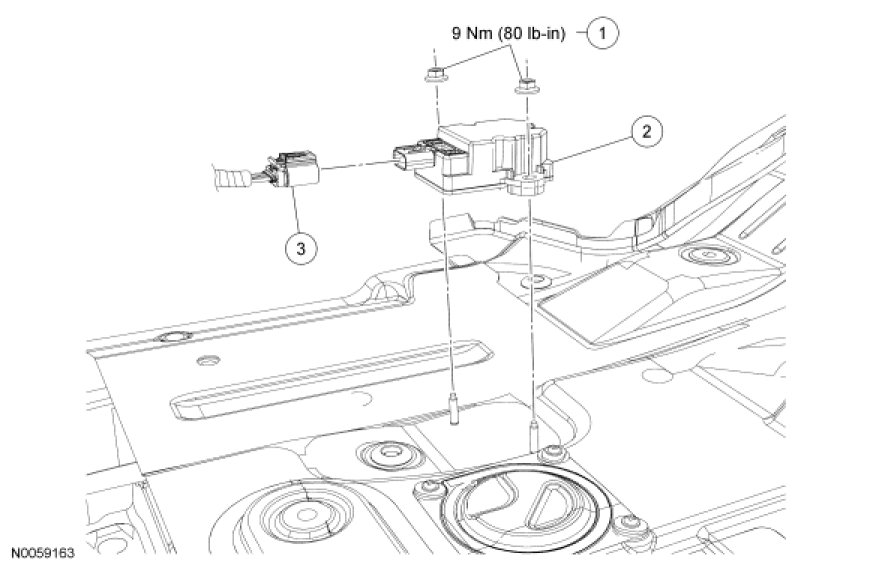

4. Remove the 2 stability control sensor cluster nuts and the stability control sensor cluster.
- To install, tighten to 9 Nm (80 lb-in).

5. To install, reverse the removal procedure.
- Carry out the IVD Initialization sequence. Follow the scan tool directions.
