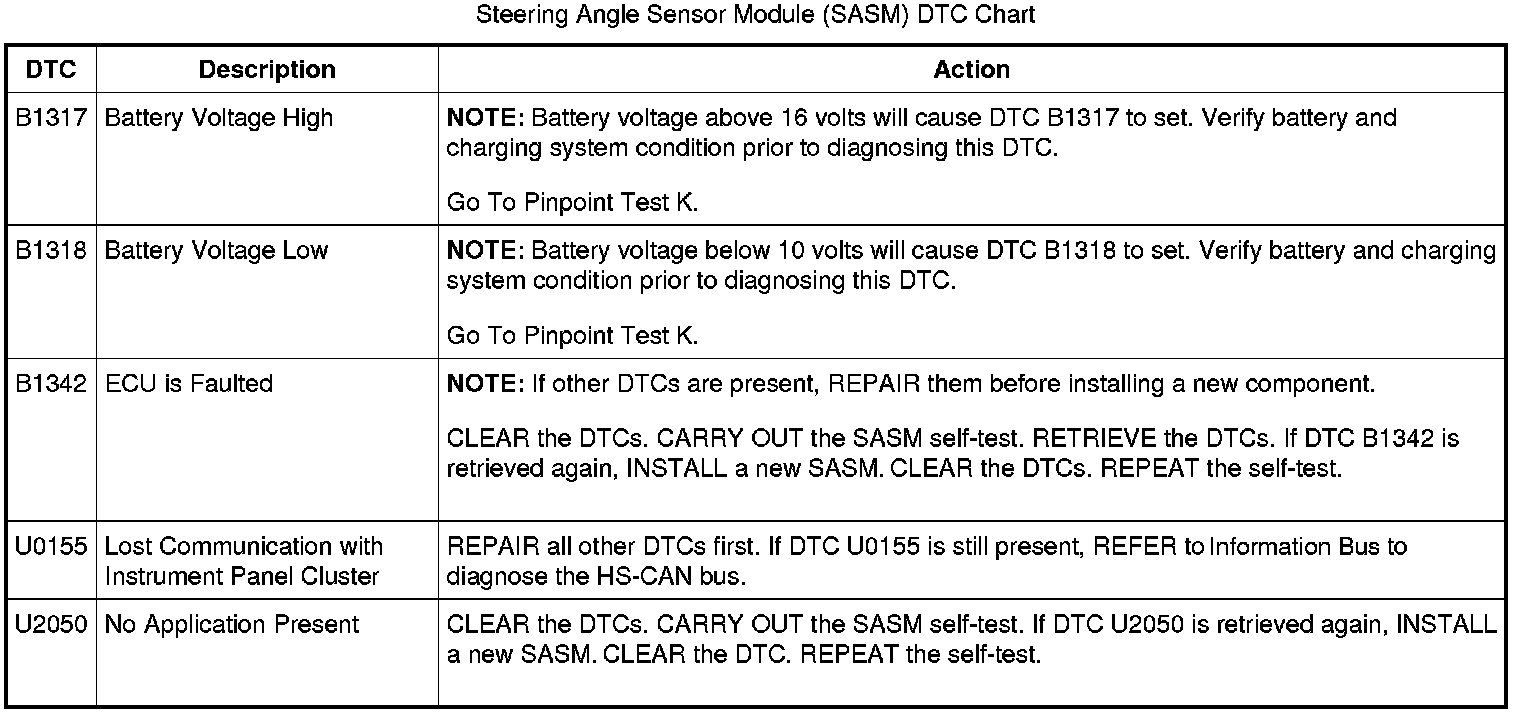

Steering Angle Sensor Module (SASM) DTC Chart
Anti-Lock Control
DTC Charts
B1317-B1342 / U0155-U2050:
