Seat Occupant Sensor
>>

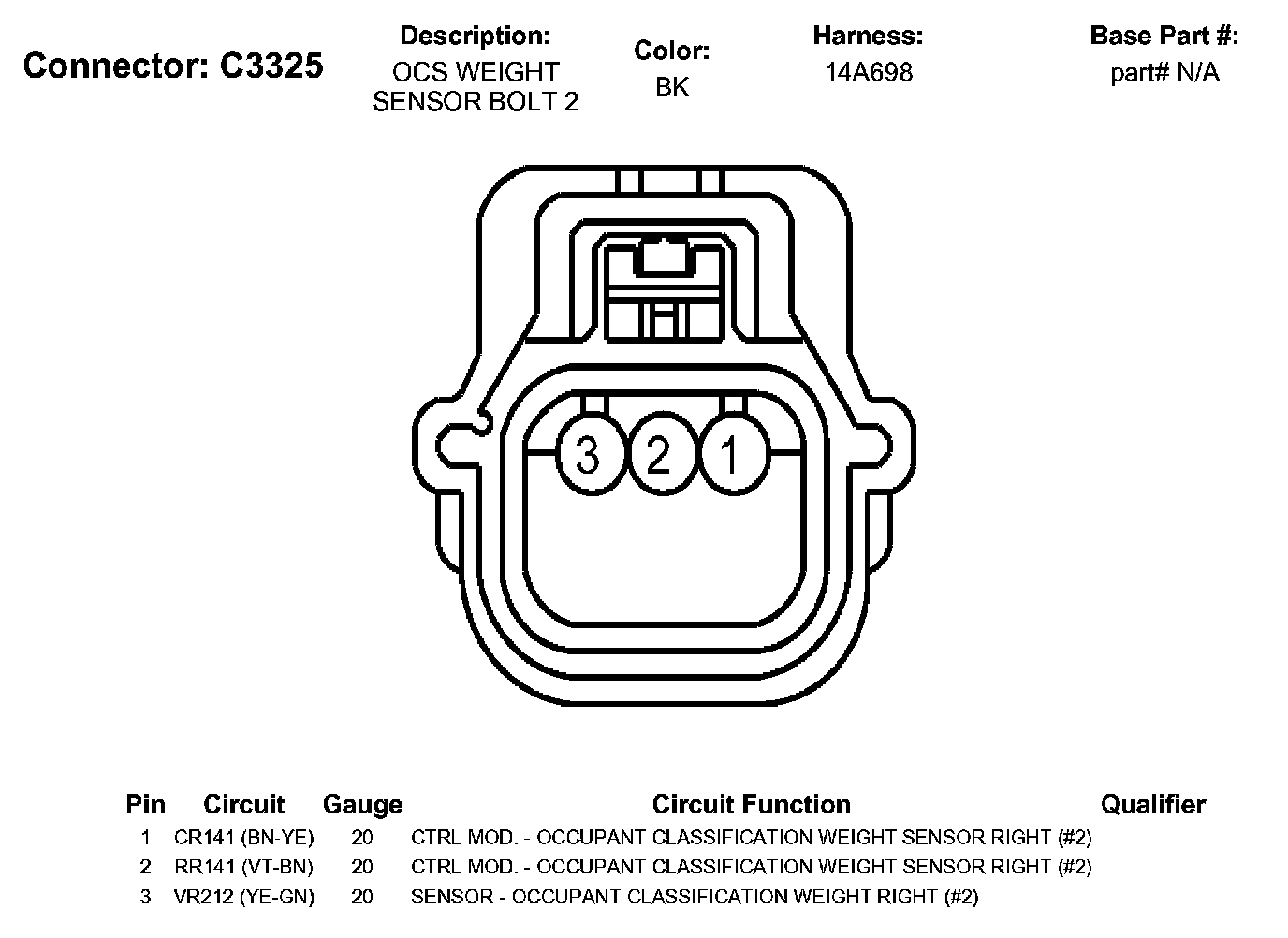

OCS Weight Sensor Bolt 2
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
OCS Weight Sensor Bolt 2
