Blower Motor Switch: Service and Repair

Blower Motor Speed Control

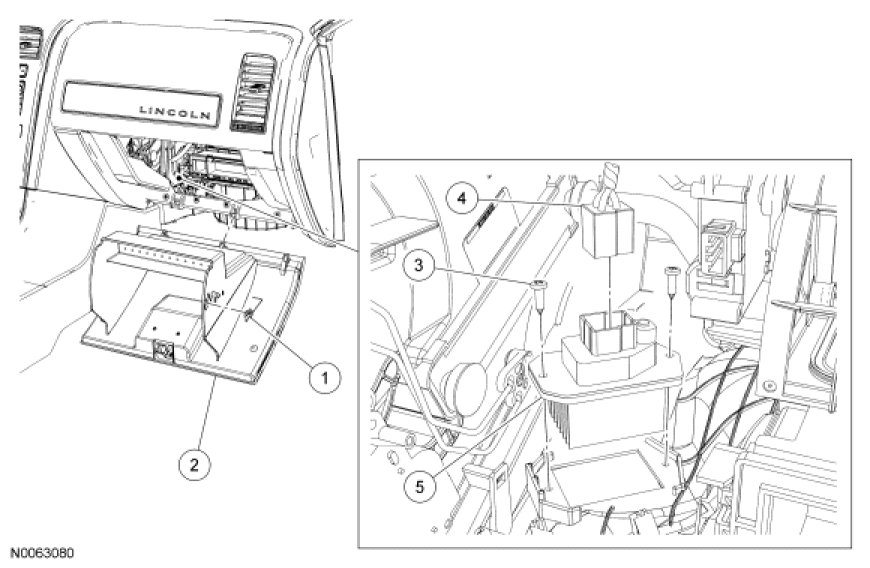

NOTE: Blower motor speed control shown, blower motor resistor similar.










Removal and Installation

1. Detach the glove compartment damper from the glove compartment.

2. Remove the glove compartment.

3. Disconnect the blower motor speed control electrical connector.

4. Remove the 2 blower motor speed control screws.

5. Remove the blower motor speed control.

6. To install, reverse the removal procedure.
