Fog/Driving Lamp: Service and Repair

Fog Lamp









Removal and Installation

NOTE: Make sure the headlamp switch and the ignition switch are in the OFF position.

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the 2 screws and position the fender splash shield aside.

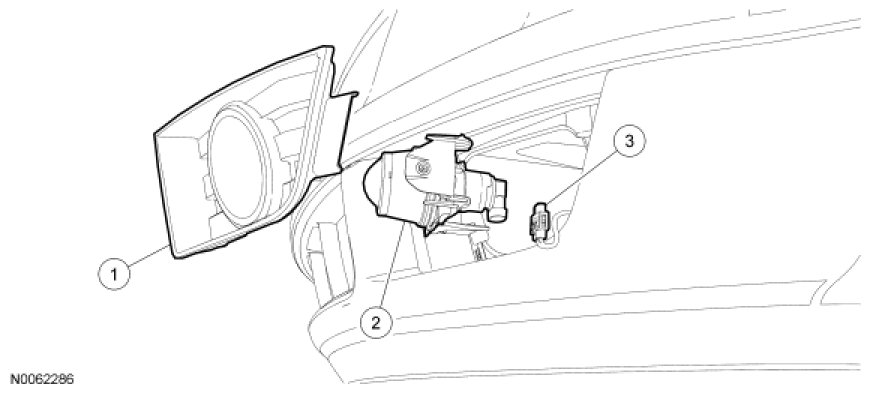

3. Release the tabs and remove the fog lamp bezel.

4. Release the locking tabs and remove the fog lamp.
- Disconnect the electrical connector.

5. To install, reverse the removal procedure.
