HM - Secondary Air Injection (AIR) System
PINPOINT TEST HM: SECONDARY AIR INJECTION (AIR) SYSTEM

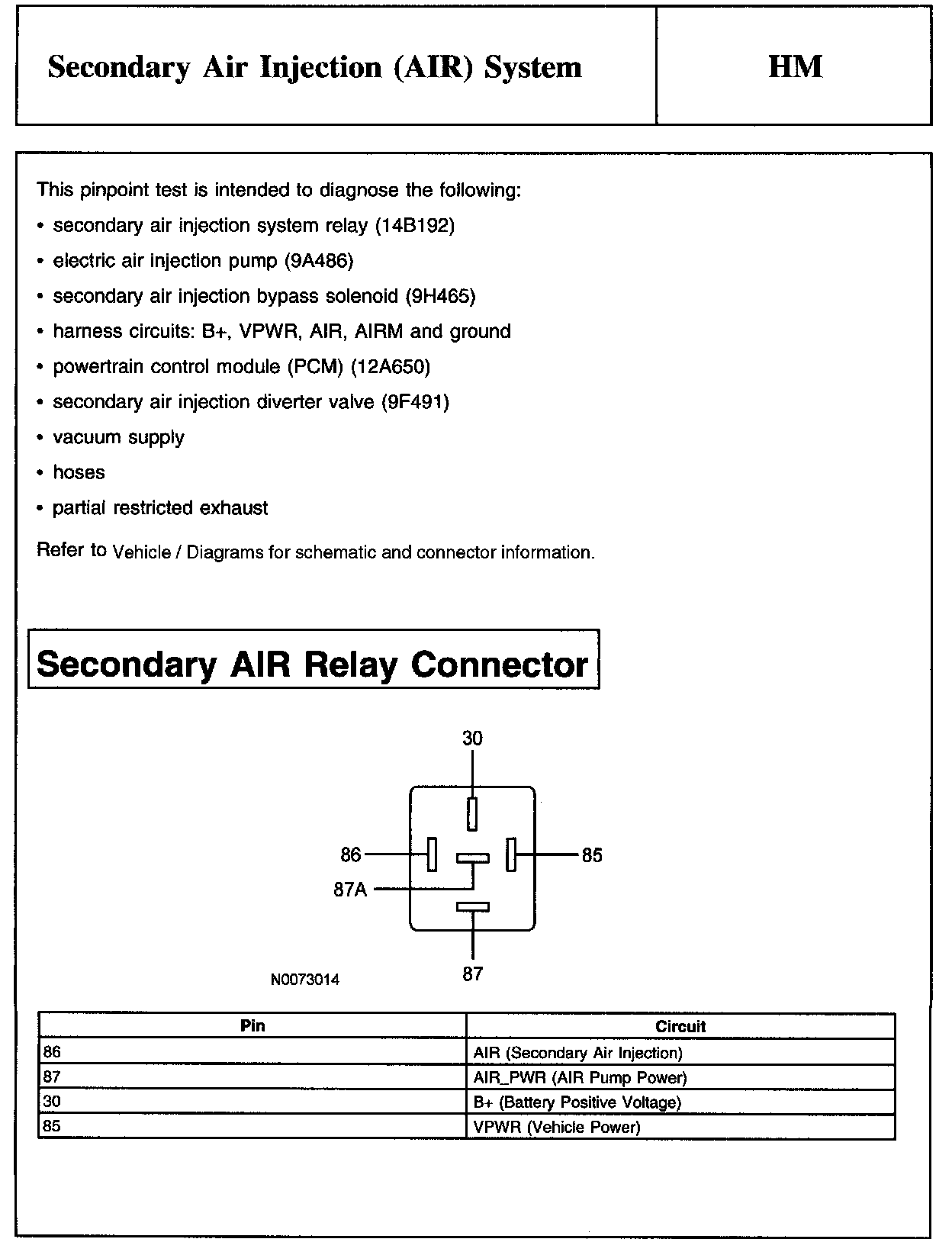

Secondary AIR Relay Connector:

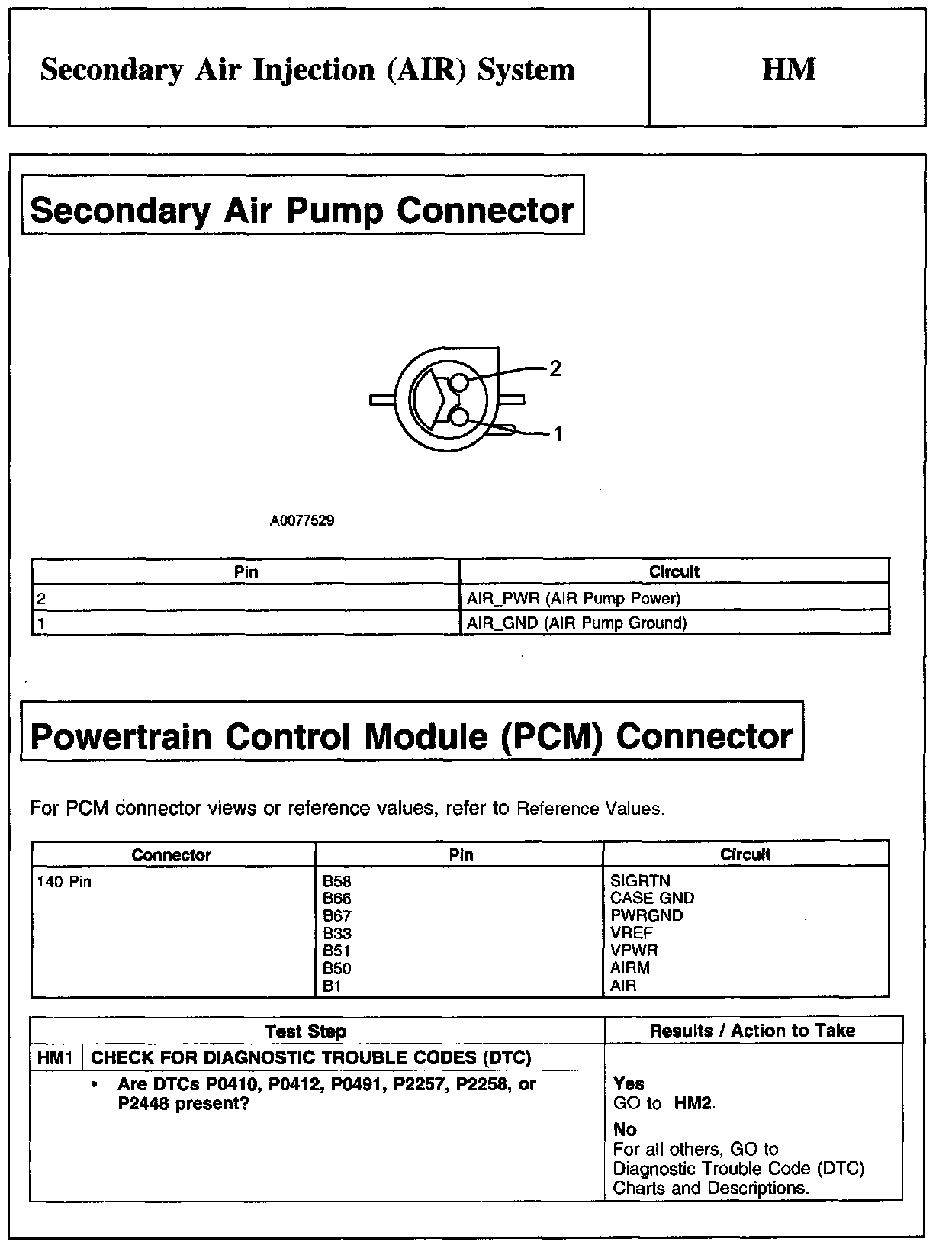

HM1:

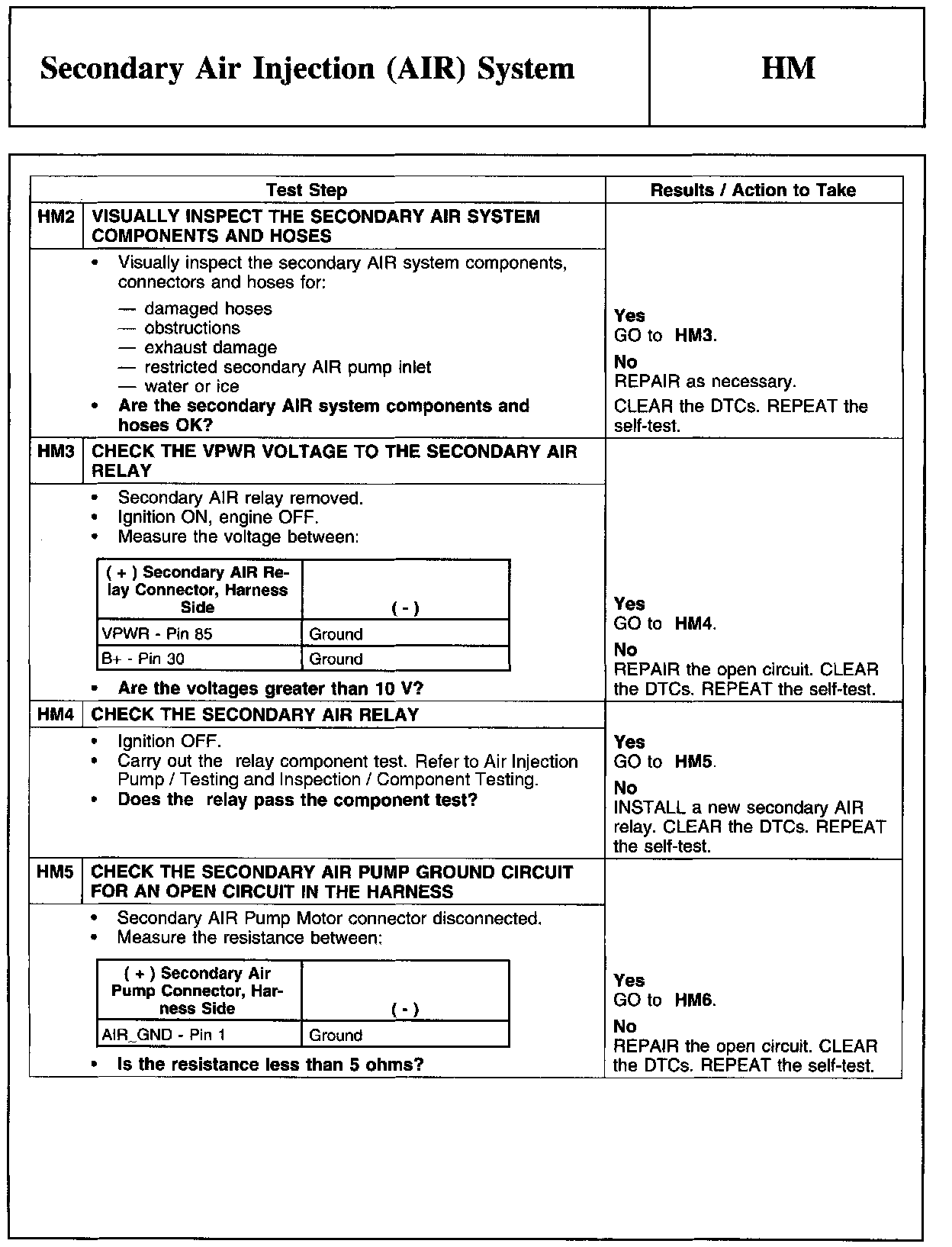

HM2-HM5:

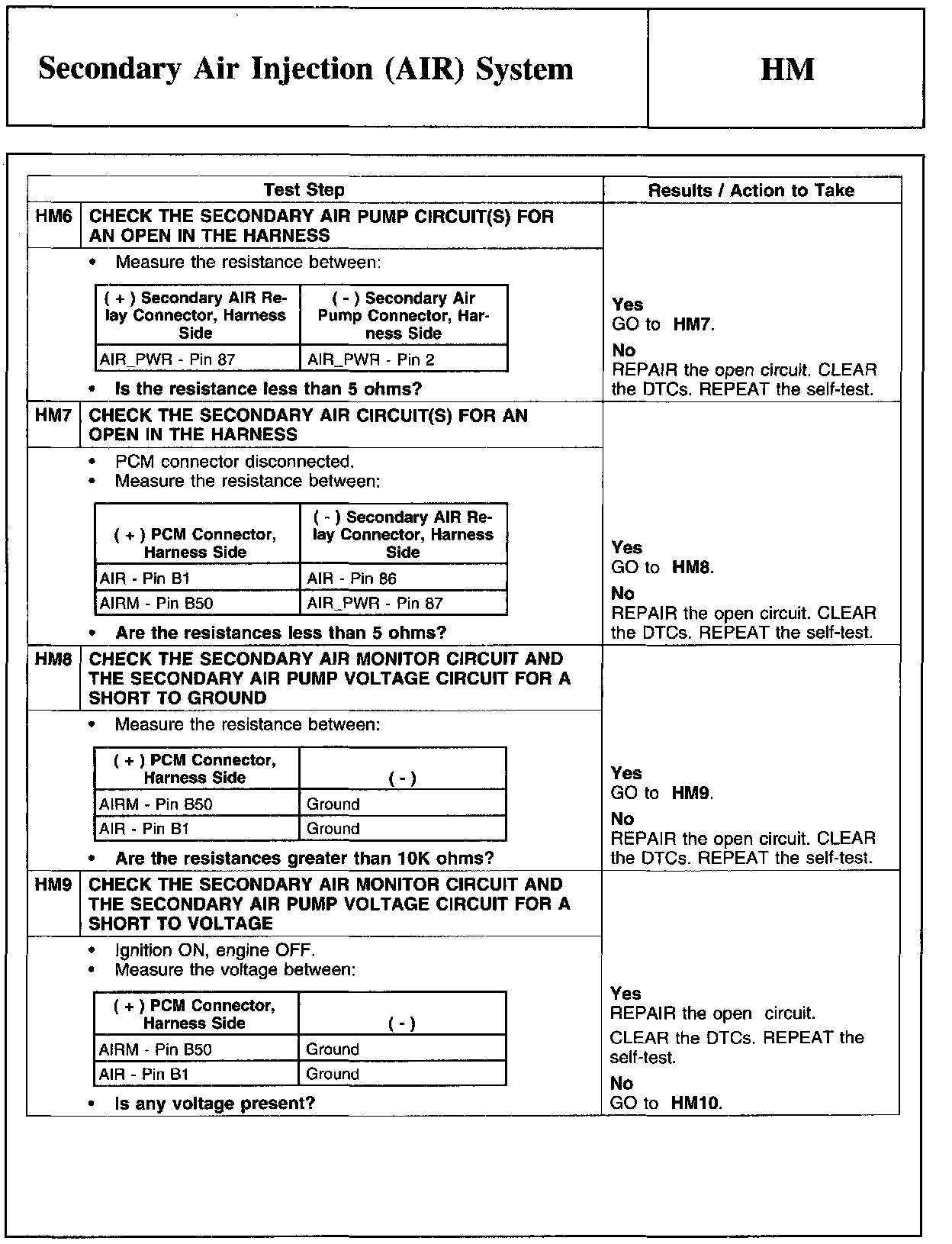

HM6-HM9:

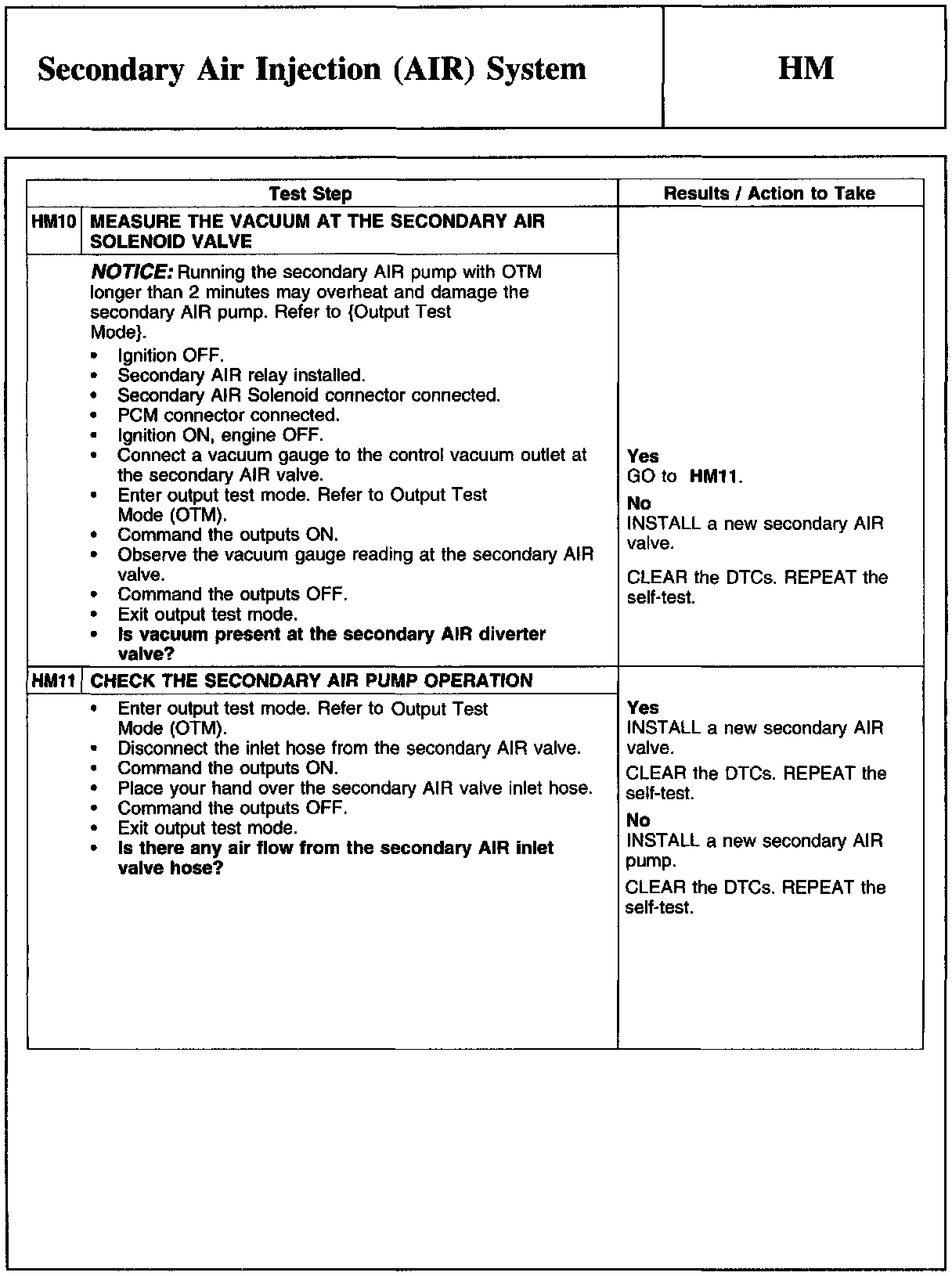

HM10-HM11:
