Generator - Gasoline Engines: Notes
WARNING: This page is about a different car, the 2009 Ford RV Cutaway, 2009 Ford Econoline, 2009 Ford E450 Super Duty, and 2009 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

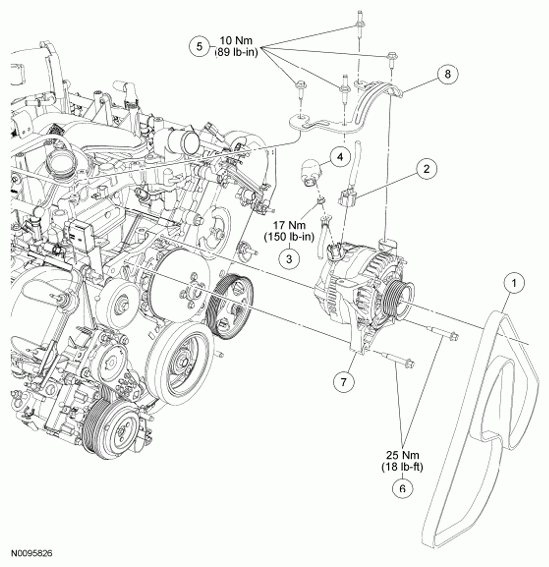

This procedure applies to the 4.6L, 5.4L and 6.8L engines. The 5.4L shown, other engines similar.
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 8620 | Accessory drive belt |
| 2 | - | Generator electrical connector (part of 14305) |
| 3 | W711953 | Generator B+ terminal nut |
| 4 | - | Generator B+ terminal (part of 14305) |
| 5 | N807309 | Generator bracket bolts (4 required) |
| 6 | N811334 | Generator bolts (2 required) |
| 7 | 10300 | Generator |
| 8 | 10153 | Generator bracket |
