Plenum Chamber: Notes

WARNING: This page is about a different car, the 2009 Ford RV Cutaway, 2009 Ford Econoline, 2009 Ford E450 Super Duty, and 2009 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

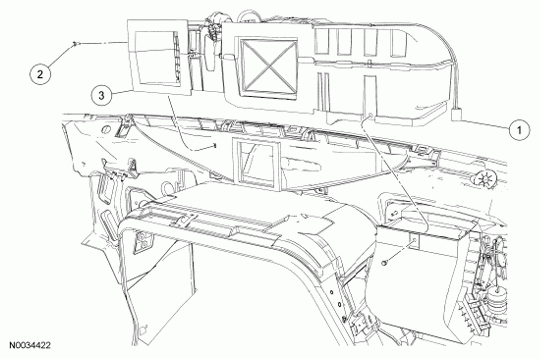

Fig 1: Identifying Plenum Chamber

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
1	18C581	Plenum chamber vacuum harness connector
2	N804306-S58	Plenum chamber screw
3	18471	Plenum chamber
