Power Mirror Motor: Service and Repair

Exterior Mirror Motor

Removal and Installation

1. Remove the exterior mirror glass. For additional information, refer to Exterior Mirror Glass Exterior Mirror Glass.

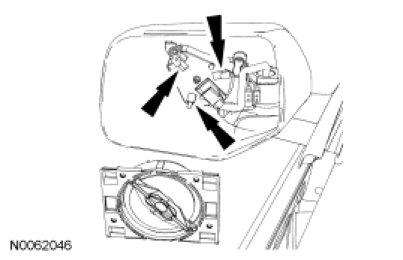

2. Remove the exterior mirror motor screw.

3. With a flat-blade tool, release the 3 exterior mirror motor tabs.





4. Remove the exterior mirror motor.
- Disconnect the electrical connector.

5. To install, reverse the removal procedure.
