Traction Control Switch: Service and Repair




Stability/Traction Control Switch

Removal and Installation

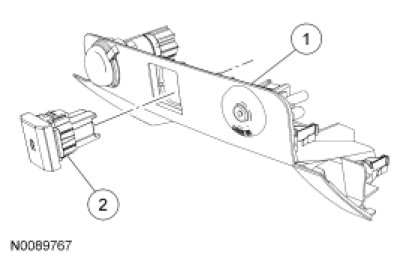

1. Remove the lower Instrument Cluster (IC) center finish panel.

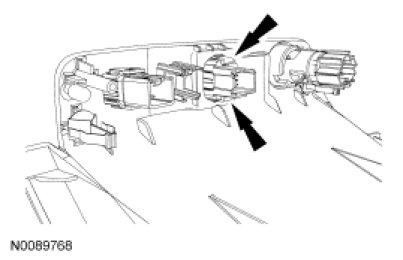

2. Depress the 2 tabs and remove the stability/traction control switch assembly.





3. To install, reverse the removal procedure.
