Brake Light Switch: Service and Repair

Stoplamp Switch









Removal and Installation

NOTICE: Do not press or pull on brake pedal when installing or removing the stoplamp switch otherwise misadjustment or damage to the stoplamp switch could occur.

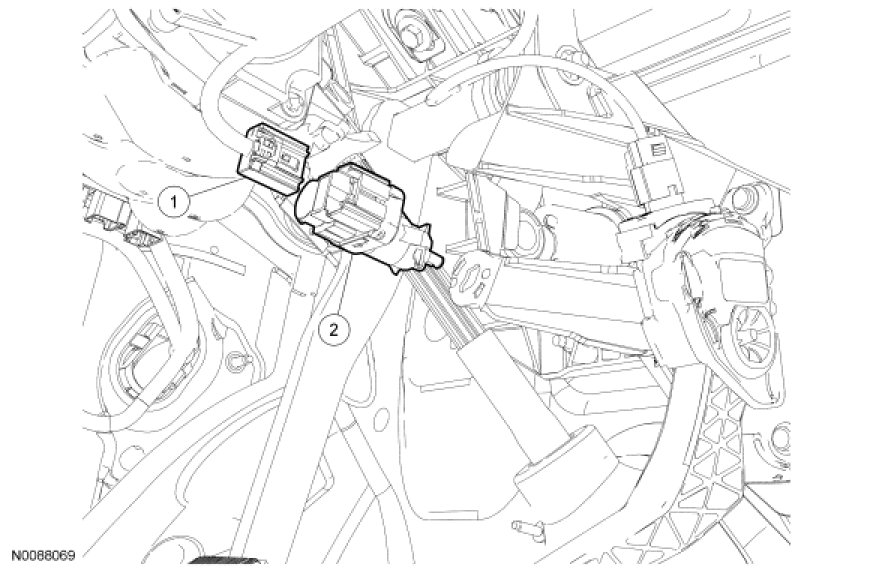

1. Disconnect the stoplamp switch electrical connector.

2. Rotate the stoplamp switch clockwise approximately one-eighth turn and remove the stoplamp switch.

3. To install, reverse the removal procedure.
