Torque & Sequence

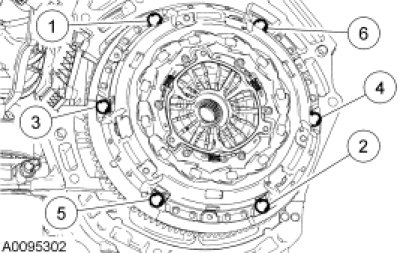

Position the clutch pressure plate on the flywheel and install the 6 clutch pressure plate bolts.
Tighten to 29 Nm (21 lb-ft) in the sequence shown.
