Engine Ignition Components - Exploded View

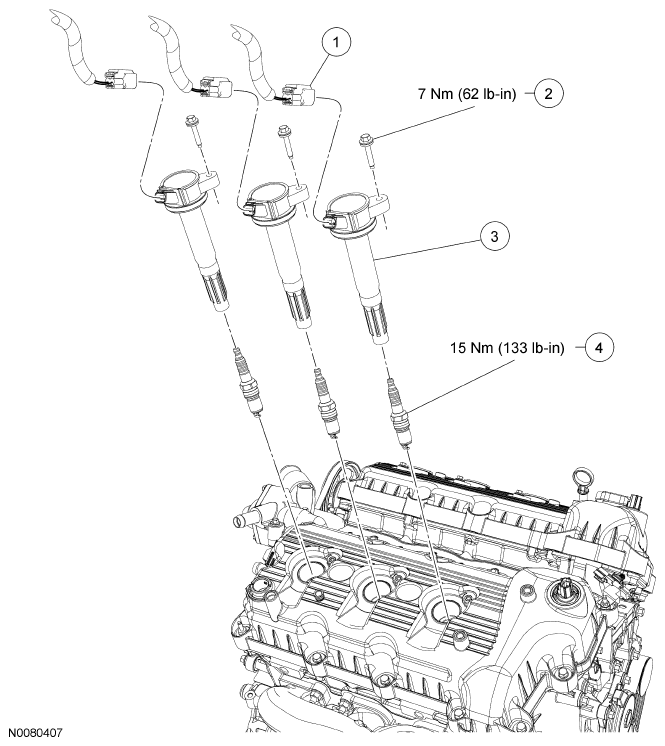

Engine Ignition LH
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | LH ignition coil electrical connector (3 required) |
| 2 | W708833 | LH ignition coil bolt (3 required) |
| 3 | 12A375 | LH ignition coil (3 required) |
| 4 | 12405 | LH spark plug (3 required) |

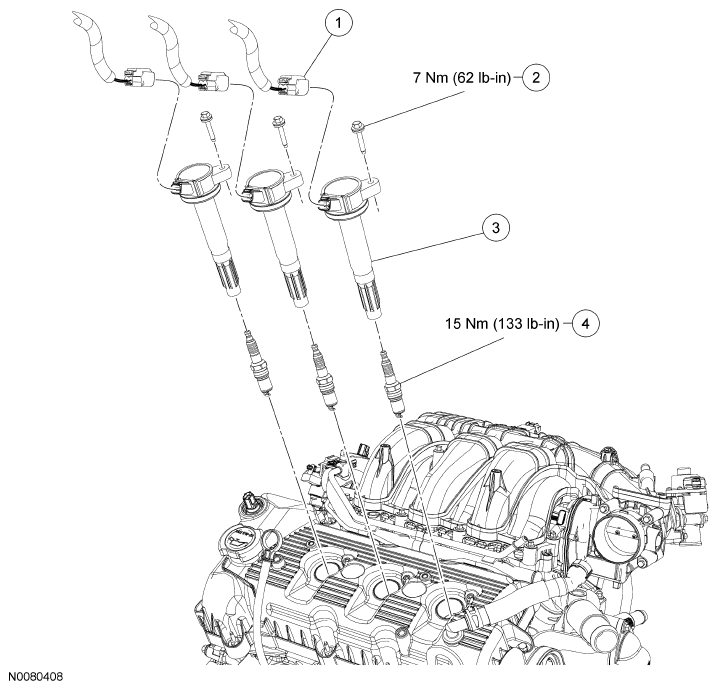

Engine Ignition RH
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | RH ignition coil electrical connector (3 required) |
| 2 | W708833 | RH ignition coil bolt (3 required) |
| 3 | 12A375 | RH ignition coil (3 required) |
| 4 | 12405 | RH spark plug (3 required) |
