Pinpoint Test H: Fuel Control: Introduction
WARNING:
THIS VEHICLE IS EQUIPPED WITH HIGH VOLTAGE CABLES, COMPONENTS, AND WIRING. THE HIGH VOLTAGE WARNING LABELS CONTAINING THE HIGH VOLTAGE SYMBOL ARE LOCATED ON EACH HIGH VOLTAGE COMPONENT. HIGH VOLTAGE CABLES AND WIRING ARE ORANGE IN COLOR. CERTIFIED RUBBER INSULATING GLOVES AND A FACE SHIELD MUST BE WORN WHEN WORKING WITH THE HIGH VOLTAGE CABLES, COMPONENTS, OR WIRING. THE IGNITION KEY MUST BE CYCLED TO THE OFF POSITION FOR A MINIMUM OF 5 MINUTES, AND THE HIGH VOLTAGE TRACTION BATTERY SERVICE DISCONNECT PLUG PLACED IN THE SERVICING/SHIPPING POSITION BEFORE DISCONNECTING THE HIGH VOLTAGE CABLES. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY OR DEATH.
DO NOT DISCONNECT, DISABLE, OR TOUCH THE HIGH VOLTAGE CABLES, COMPONENTS, OR WIRING DURING THE MODULE REPROGRAMMING PROCEDURE BECAUSE HIGH VOLTAGE IS PRESENT. THE HIGH VOLTAGE WARNING LABELS CONTAINING THE HIGH VOLTAGE SYMBOL ARE LOCATED ON EACH HIGH VOLTAGE COMPONENT. HIGH VOLTAGE CABLES AND WIRING ARE ORANGE IN COLOR. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY OR DEATH.
DO NOT DISCONNECT, DISABLE, OR TOUCH THE HIGH VOLTAGE CABLES, COMPONENTS, OR WIRING DURING THE MODULE REPROGRAMMING PROCEDURE BECAUSE HIGH VOLTAGE IS PRESENT. THE HIGH VOLTAGE WARNING LABELS CONTAINING THE HIGH VOLTAGE SYMBOL ARE LOCATED ON EACH HIGH VOLTAGE COMPONENT. HIGH VOLTAGE CABLES AND WIRING ARE ORANGE IN COLOR. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY OR DEATH.
WARNING:
WHILE CONDUCTING TESTS ON A HOT ENGINE TAKE ALL SAFETY PRECAUTIONS TO PREVENT SKIN CONTACT WITH HOT ENGINE COMPONENTS. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
This pinpoint test is intended to diagnose the following:
- heated oxygen sensor(s) (HO2S)
- fuel injector(s) (9F593)
- vacuum system
- harness circuits: HO2S11, HO2S12, HTR11, HTR12, UO2SPC, SIGRTN, and VPWR
- powertrain control module (PCM) (12A650)

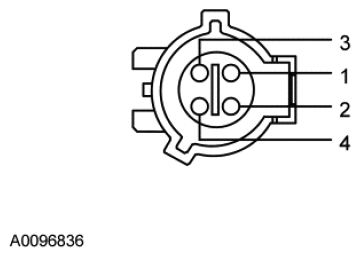

HEATED OXYGEN SENSOR (HO2S) CONNECTOR PIN REFERENCE CHART
| Pin | Circuit |
|---|---|
| 4 | SIGRTN (Signal Return) |
| 3 | HO2S Signal (HO2S Signal Circuit) |
| 2 | VPWR (Vehicle Power) |
| 1 | HO2S Heater (HO2S Heater) |
UNIVERSAL HO2S CONNECTOR PIN REFERENCE CHART
| Pin | Circuit |
|---|---|
| 1 | UO2SPC (Universal Oxygen Sensor Pumping Current) |
POWERTRAIN CONTROL MODULE (PCM) CONNECTOR PIN REFERENCE CHART
| Pin | Circuit |
|---|---|
| T18 | HO2S Heater (HO2S Heater) |
| B67 | VPWR (Vehicle Power) |
| E64 | SIGRTN (Signal Return) |
| T16 | HO2S Signal (HO2S Signal Circuit) |
| E23 | UO2SPC (Universal Oxygen Sensor Pumping Current) |
