Memory Set Switch Connector - C3246

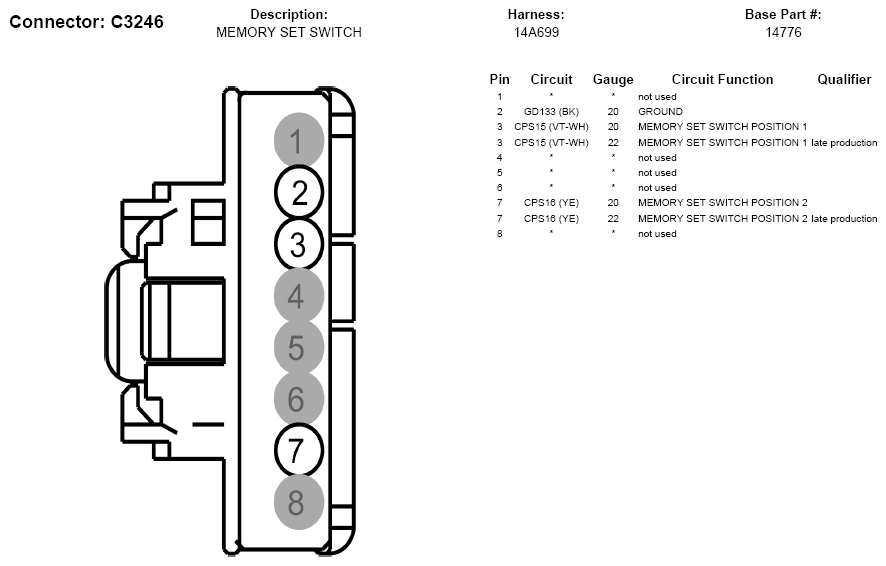

Fig 1: Memory Set Switch Connector End View (C3246)
Courtesy of FORD MOTOR CO.
