Seat - Exploded View, Second Row

Seat - Exploded View, Second Row

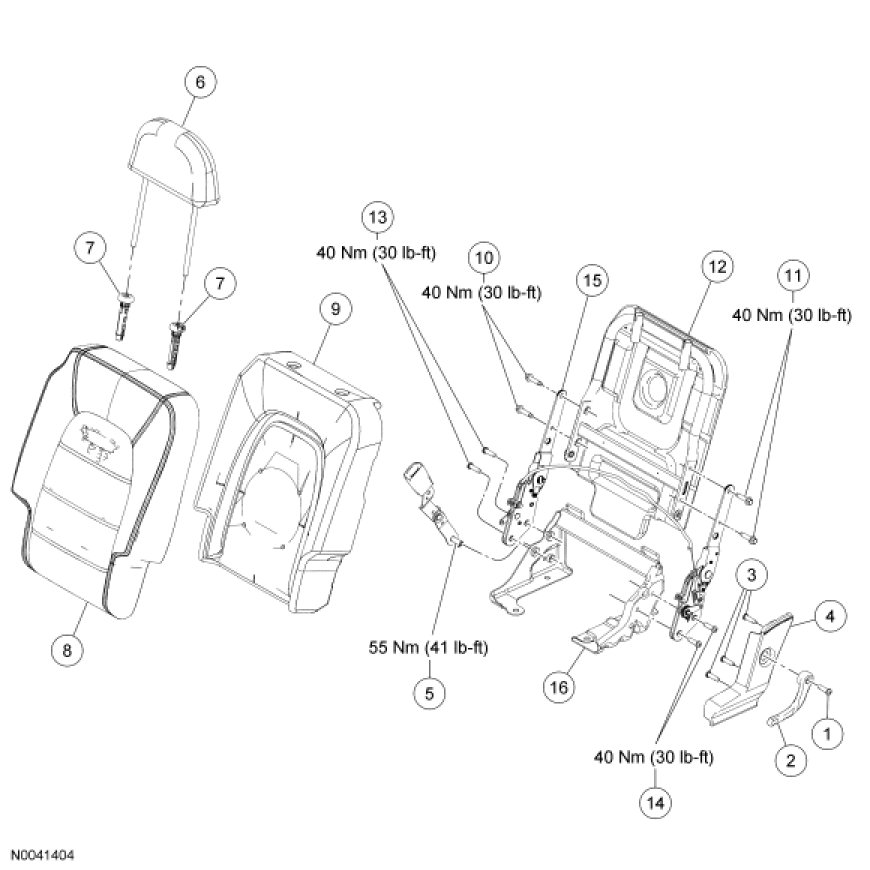

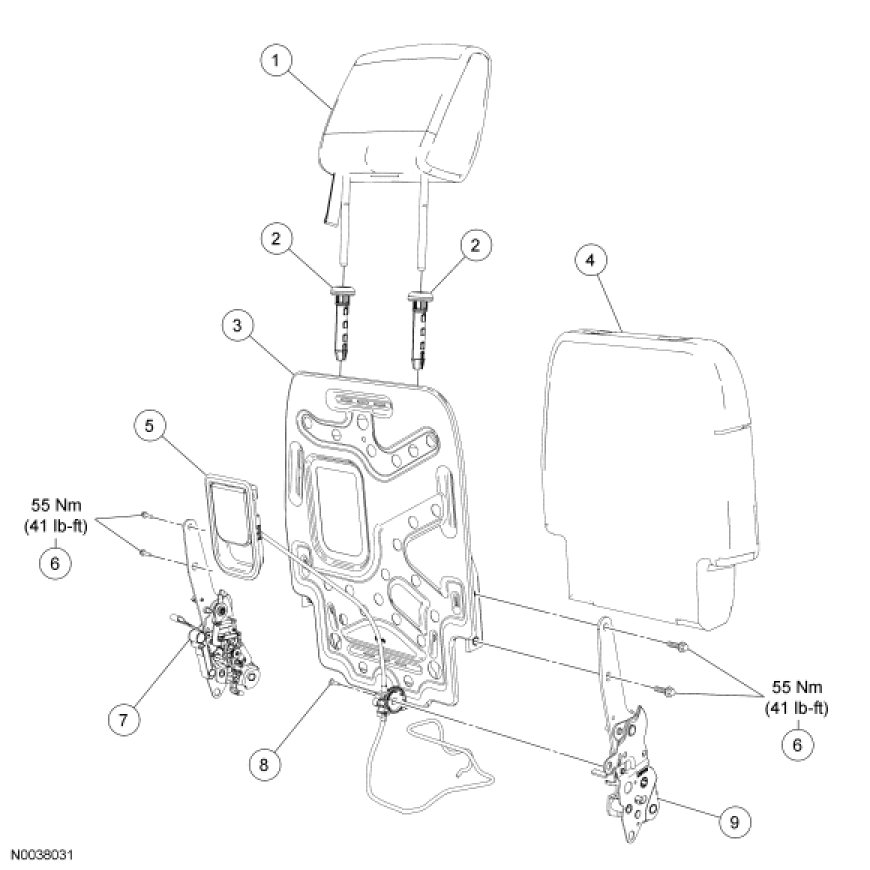

60 Percent E-Z Entry Backrest

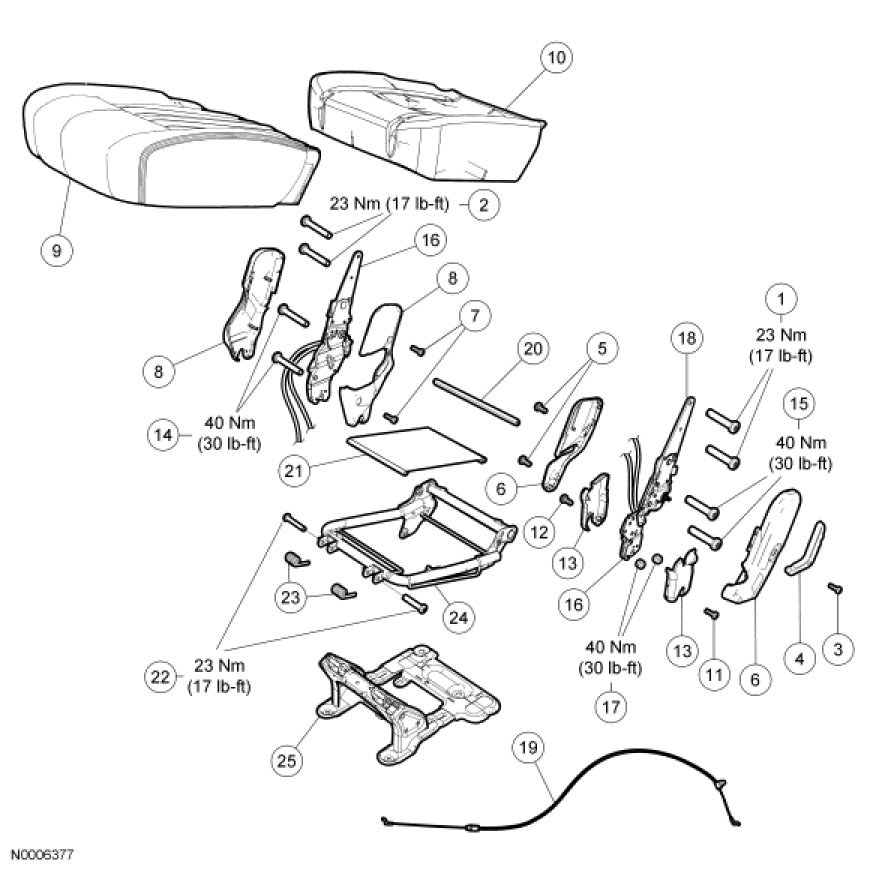

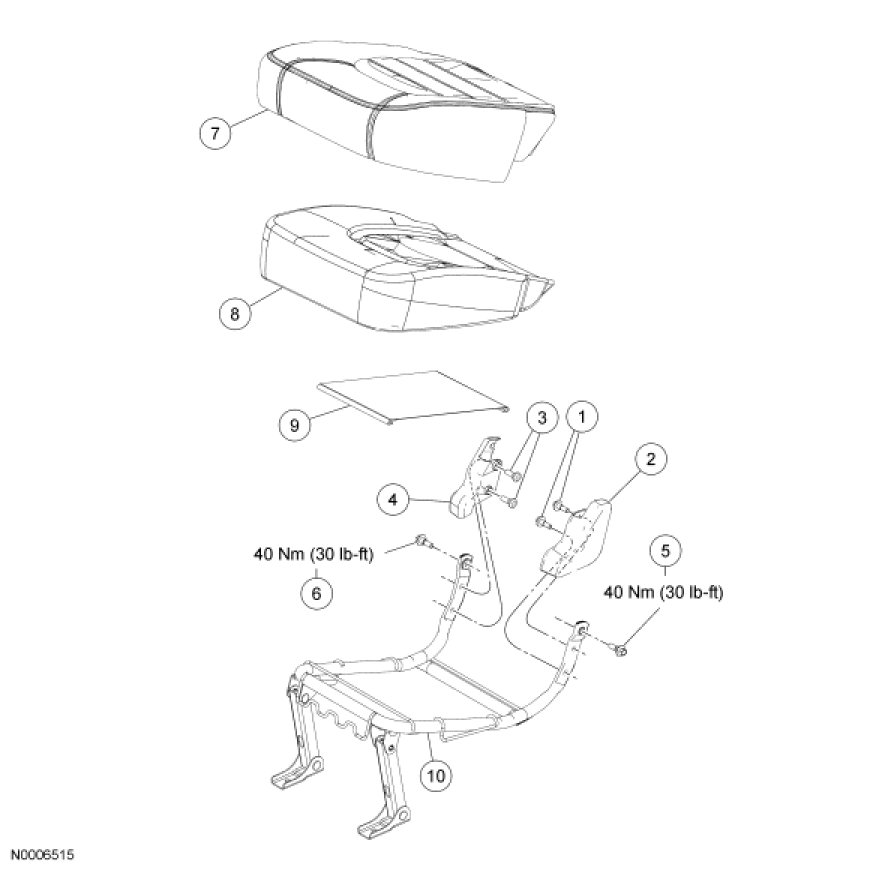

60 Percent, E-Z Entry Cushion

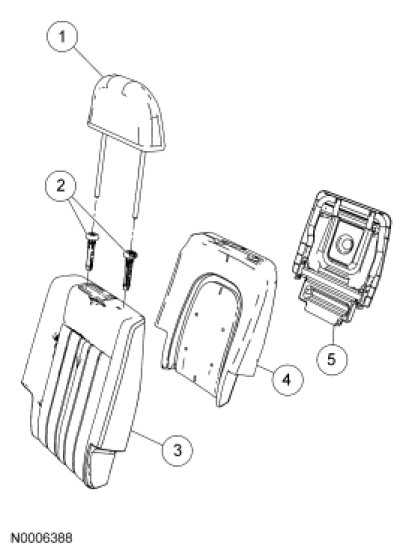

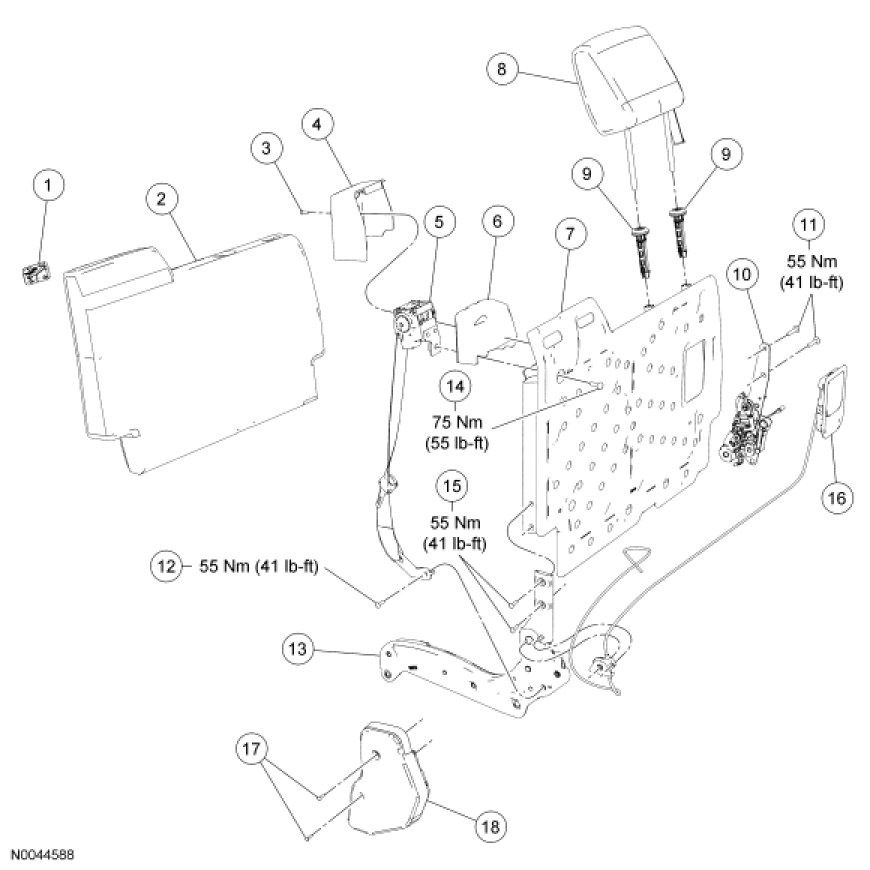

40 Percent E-Z Entry Backrest

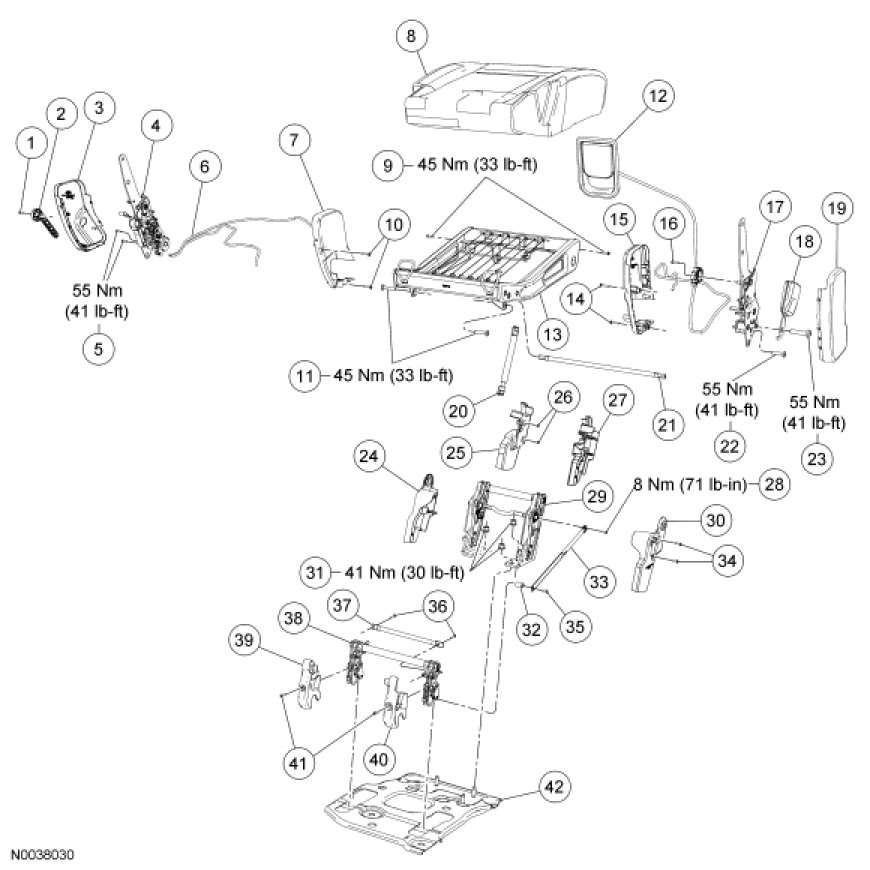

40 Percent, E-Z Entry Cushion














Bucket, Backrest

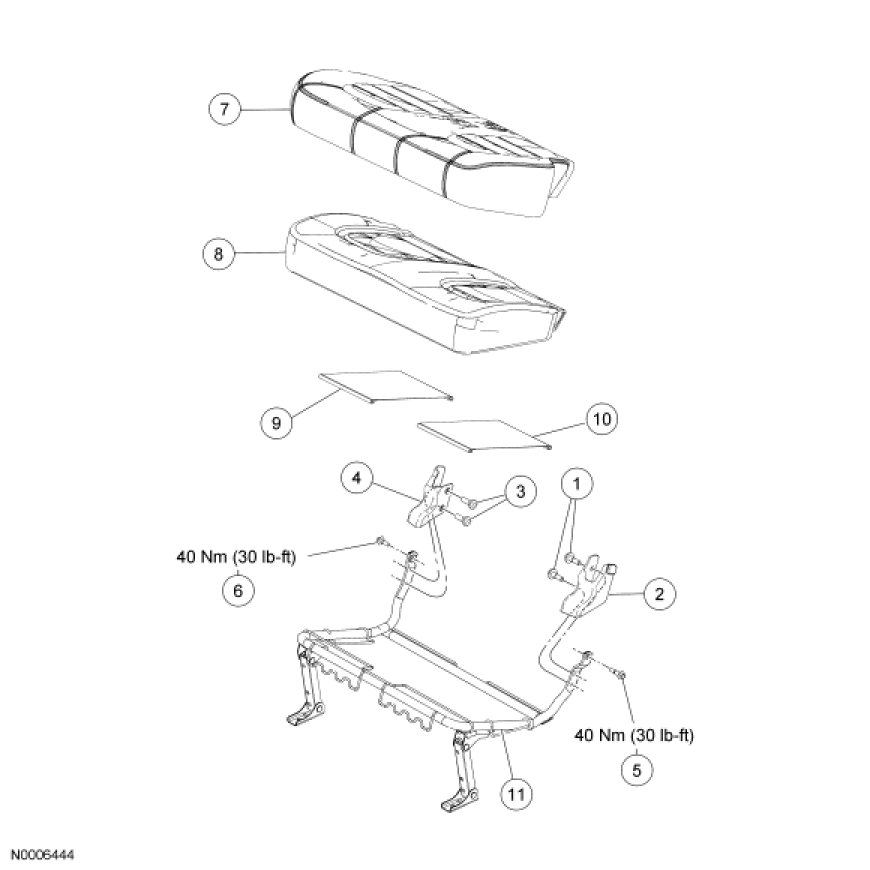

Bucket, Cushion

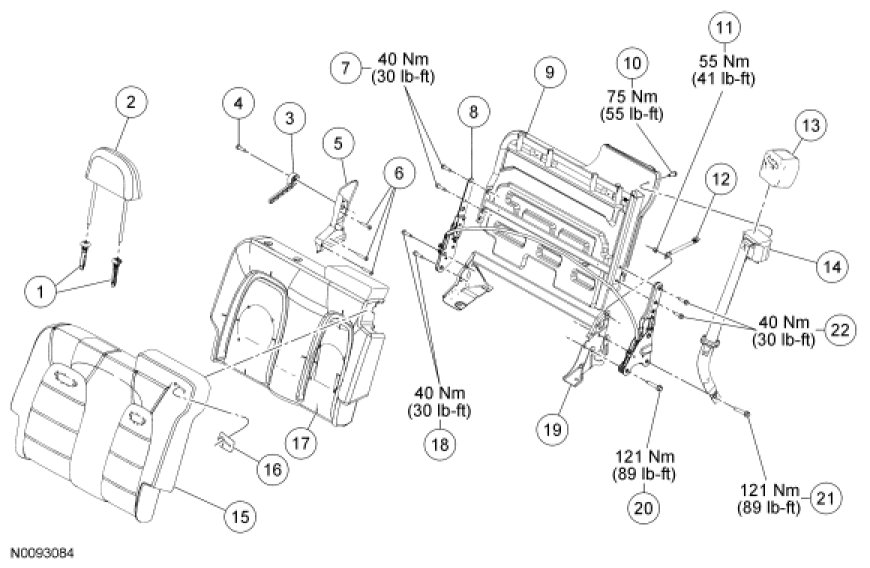

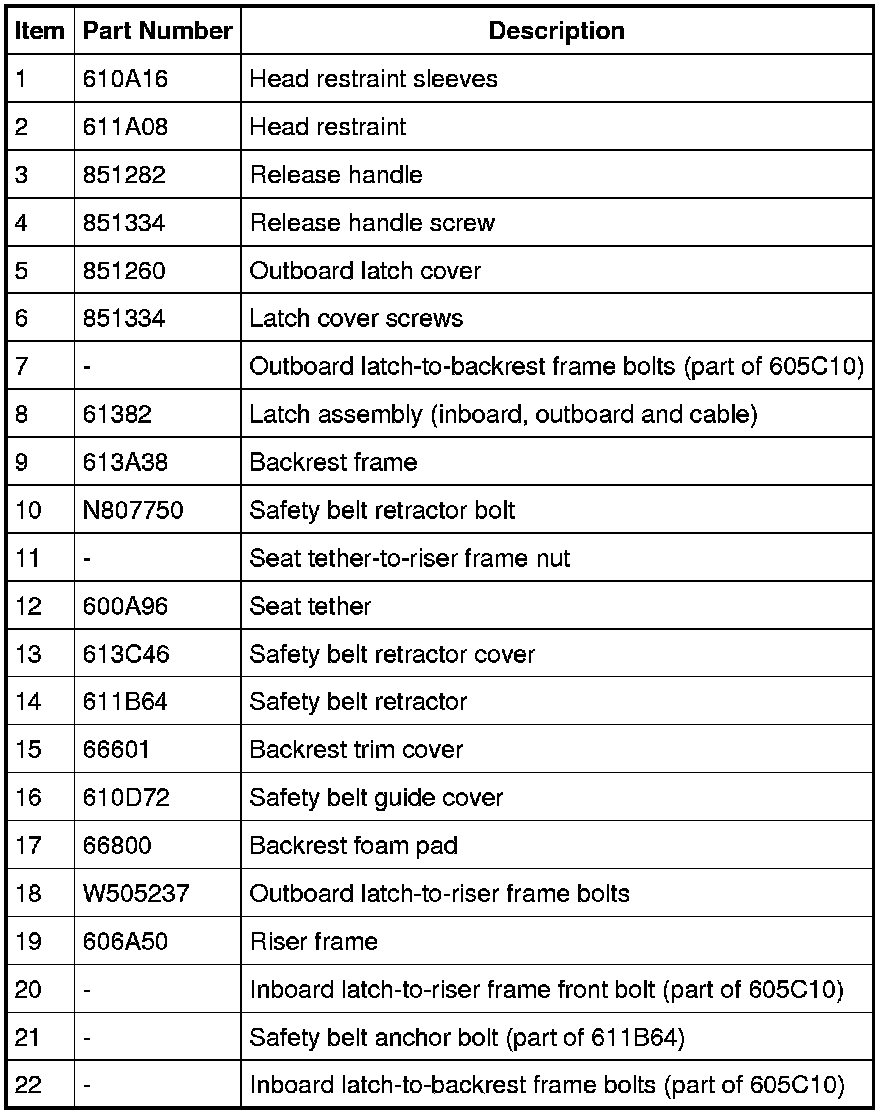

Explorer/Mountaineer, 60 Percent Bench, Backrest

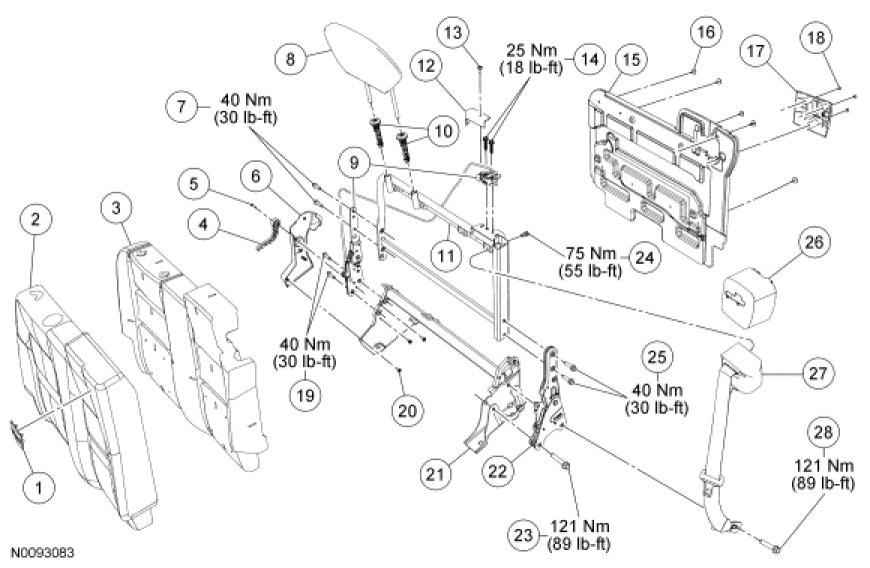

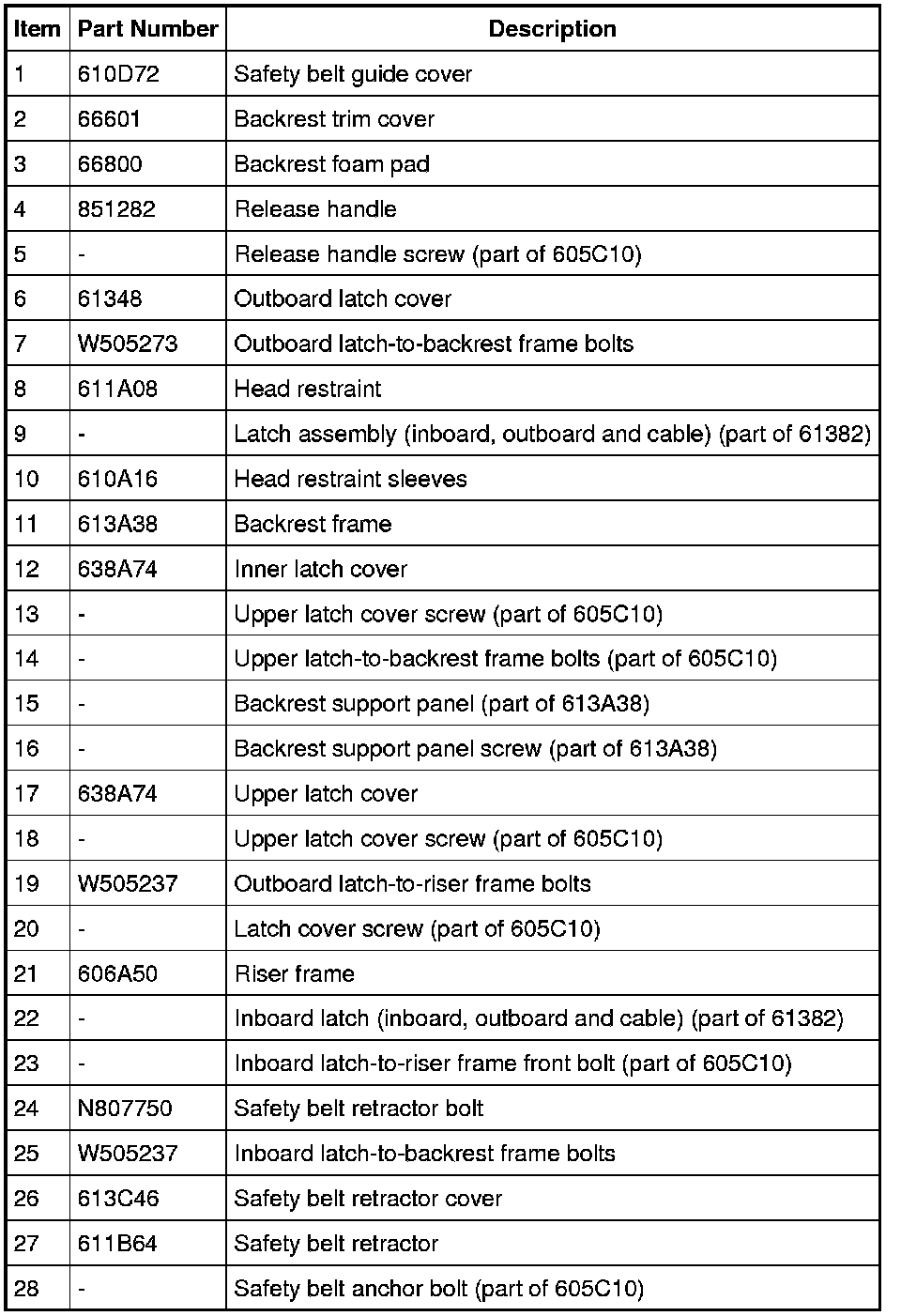

Explorer Sport Trac, 60 Percent Bench, Backrest

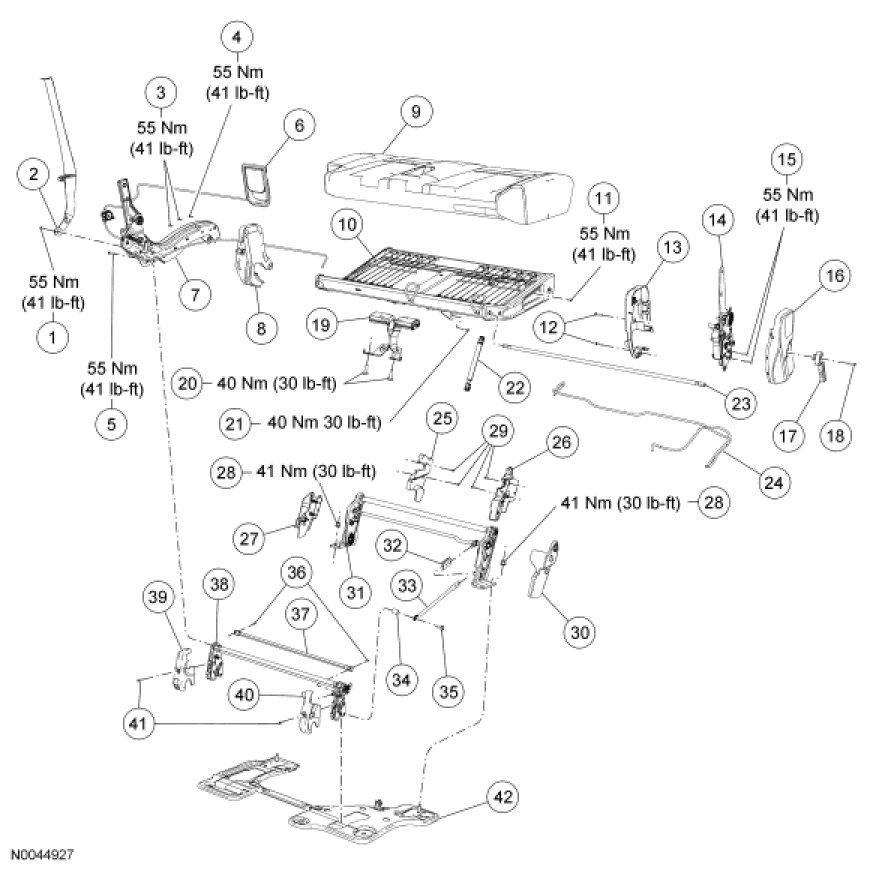

Second Row, 60 Percent Bench, Cushion










Second Row, 40 Percent Bench, Backrest










Second Row, 40 Percent Bench, Cushion









1. For additional information, refer to the procedures.
