DM - Manifold Absolute Pressure (MAP) Sensor

PINPOINT TEST DM: MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR

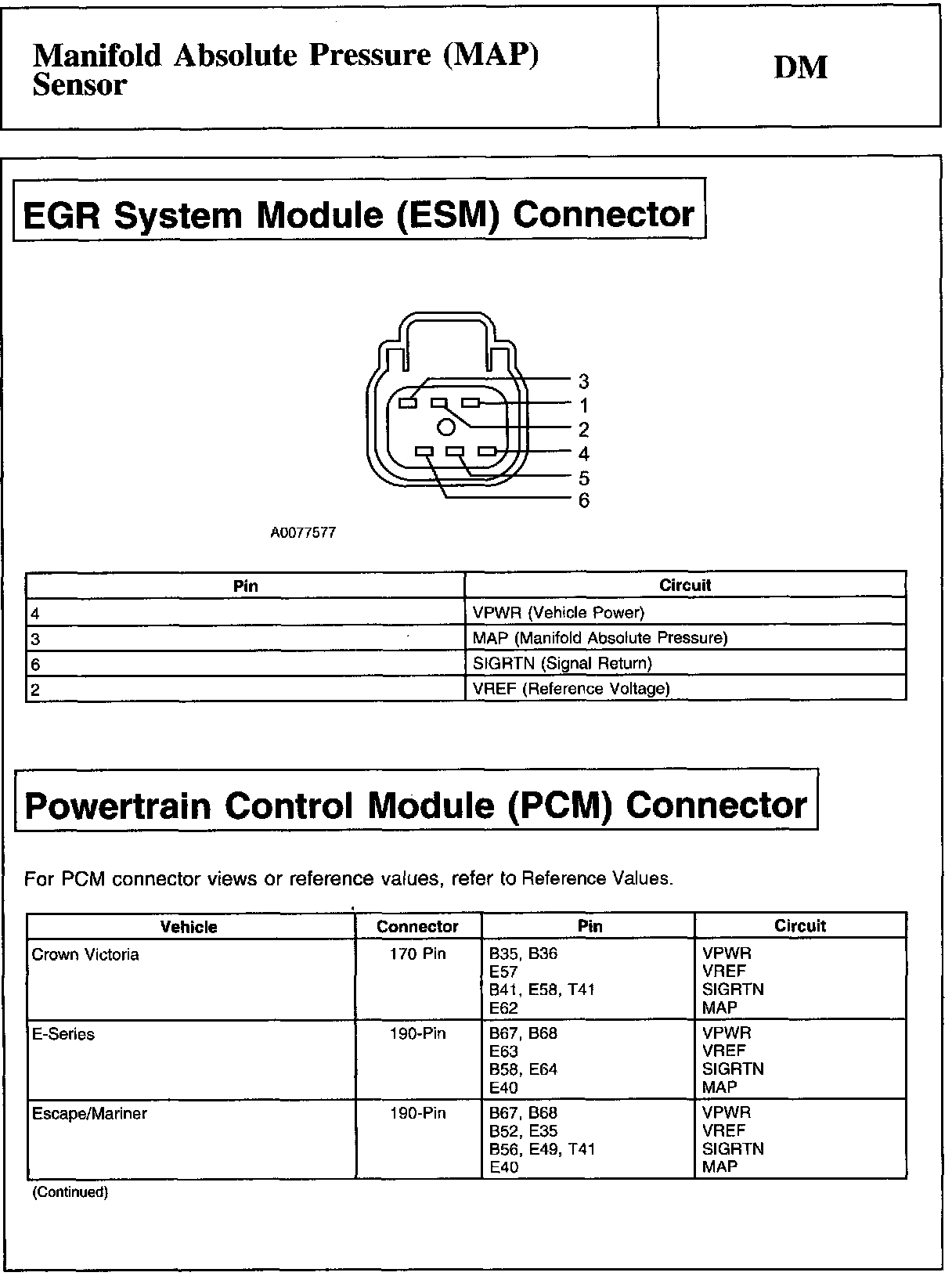

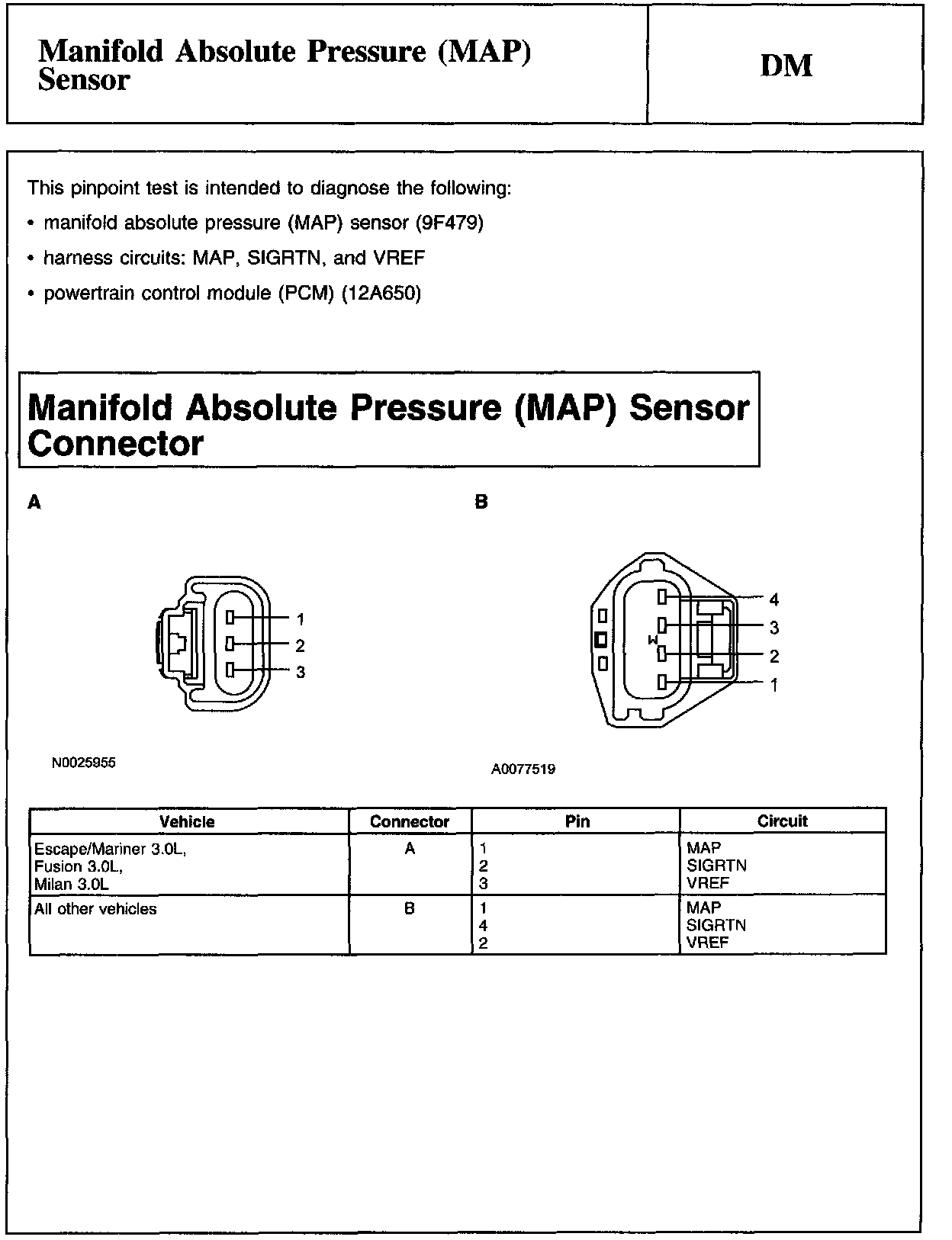

Manifold Absolute Pressure Sensor Connector:





EGR System Module And Powertrain Control Module Connector:

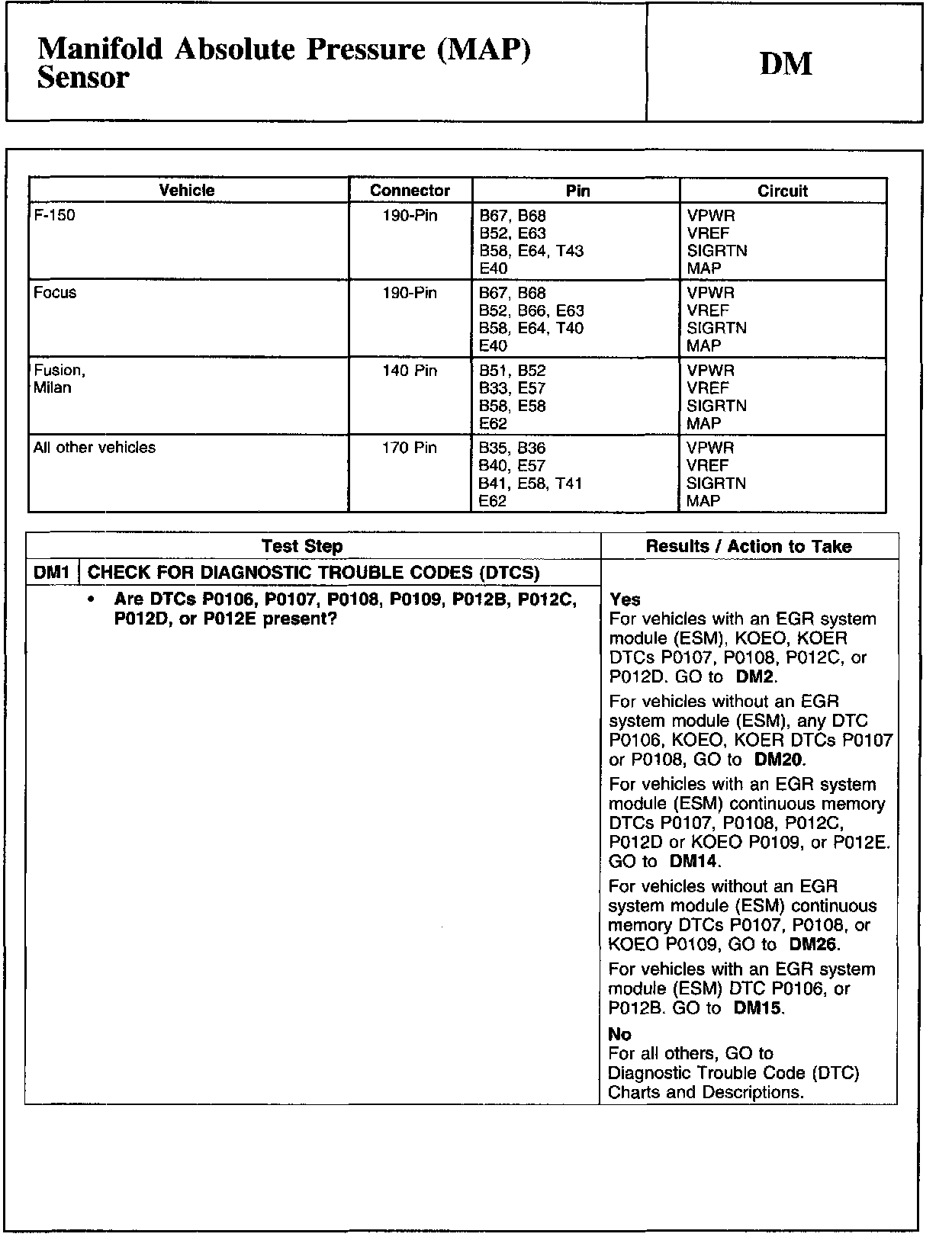

DM1:

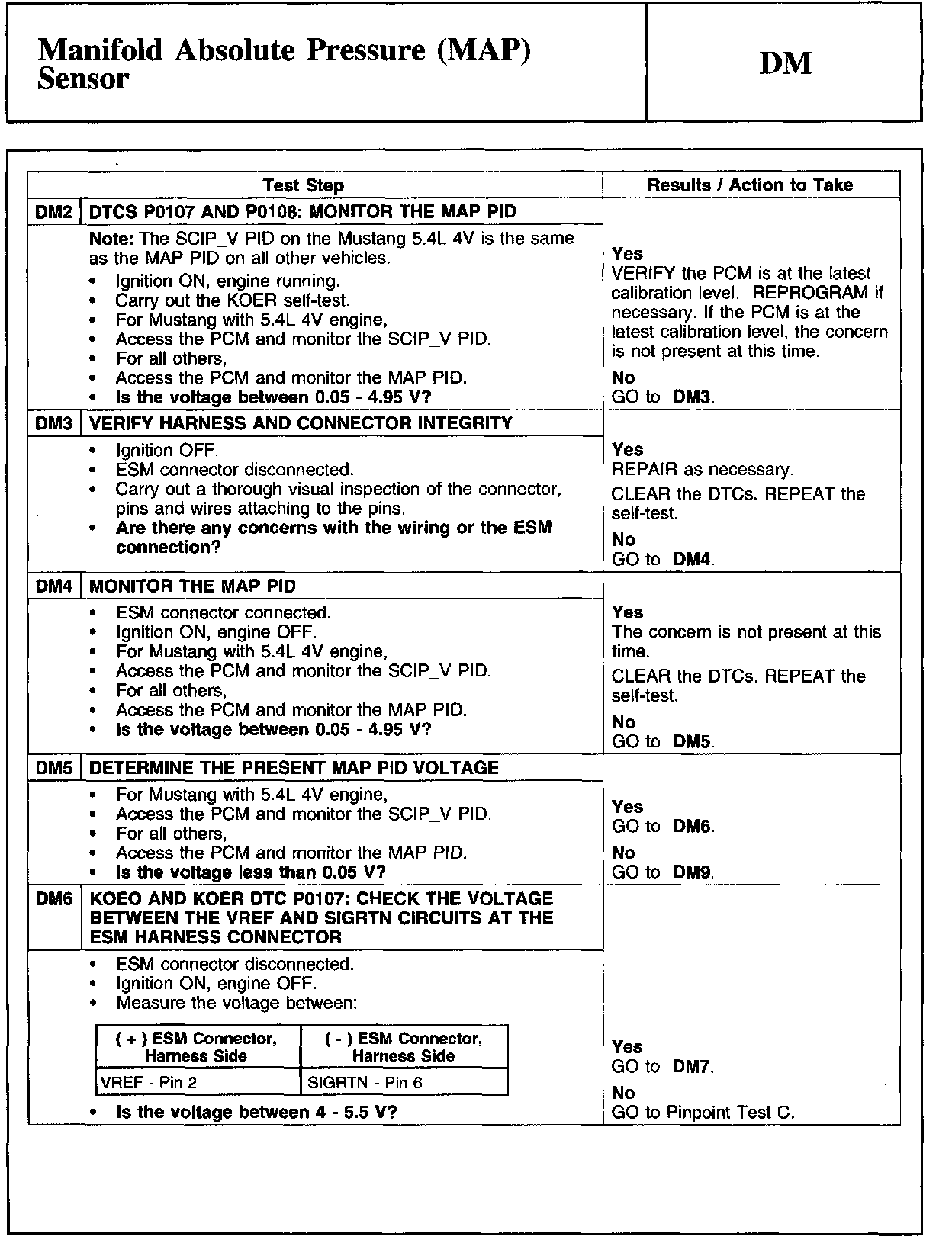

DM2-DM6:

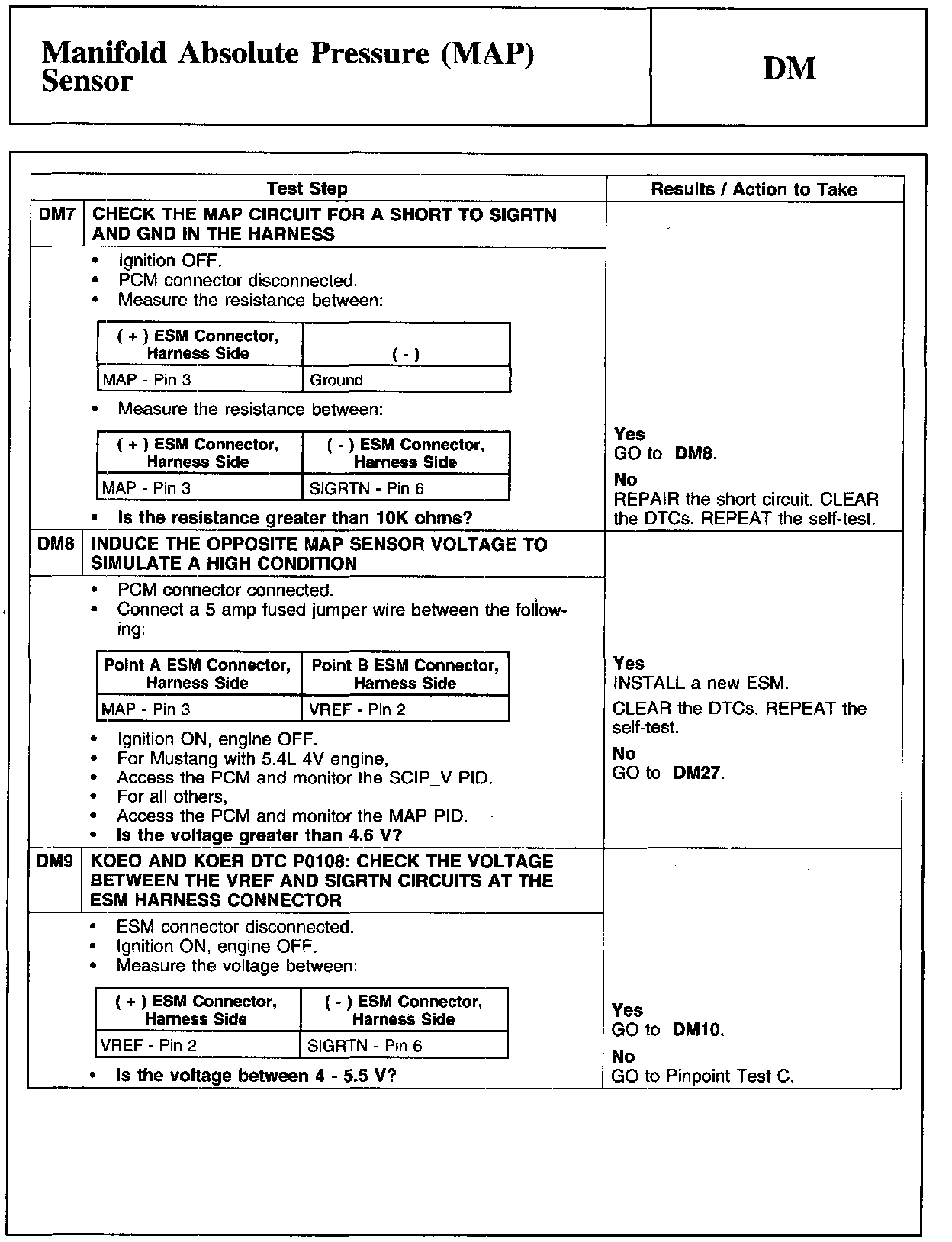

DM7-DM9:

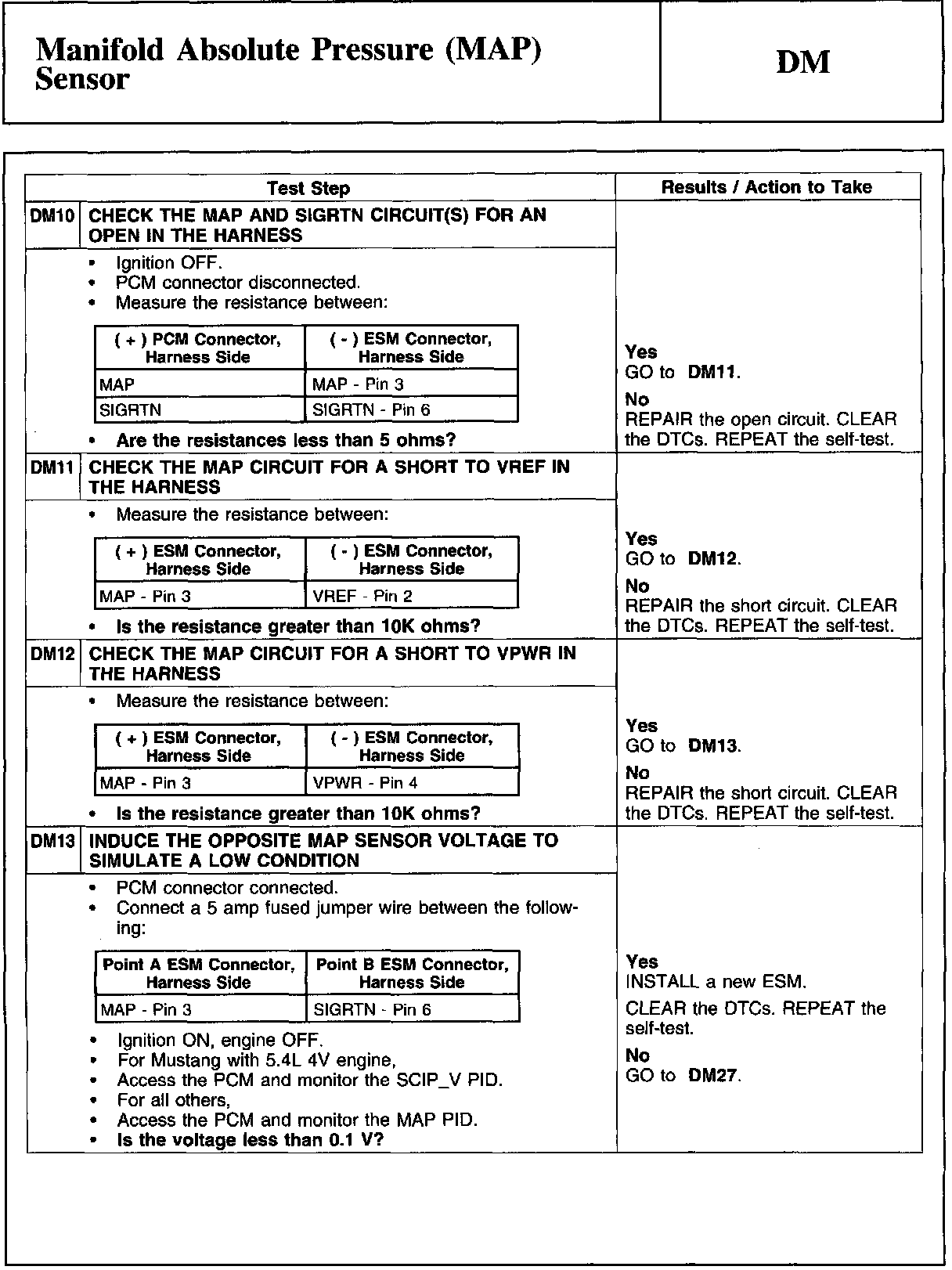

DM10-DM13:

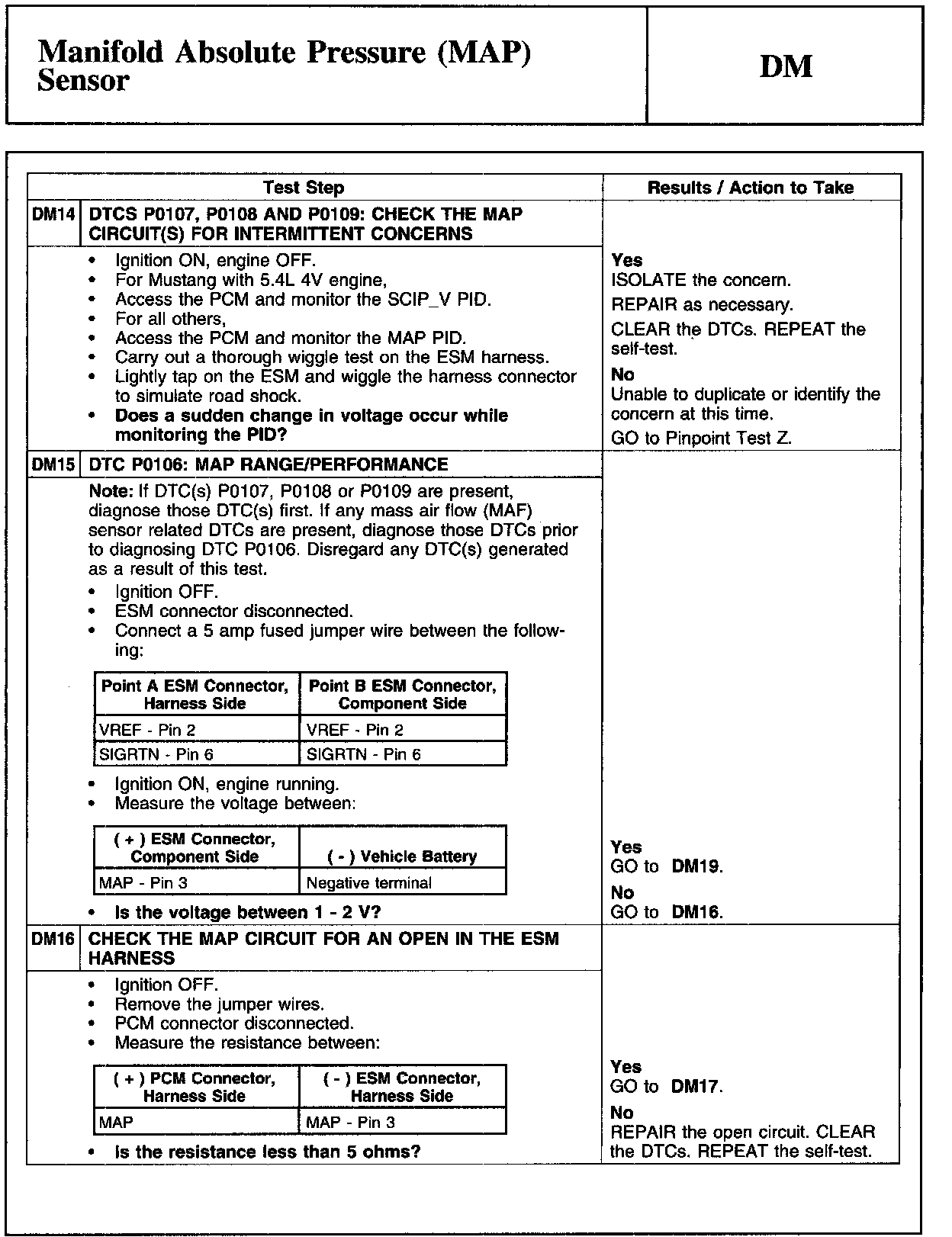

DM14-DM16:

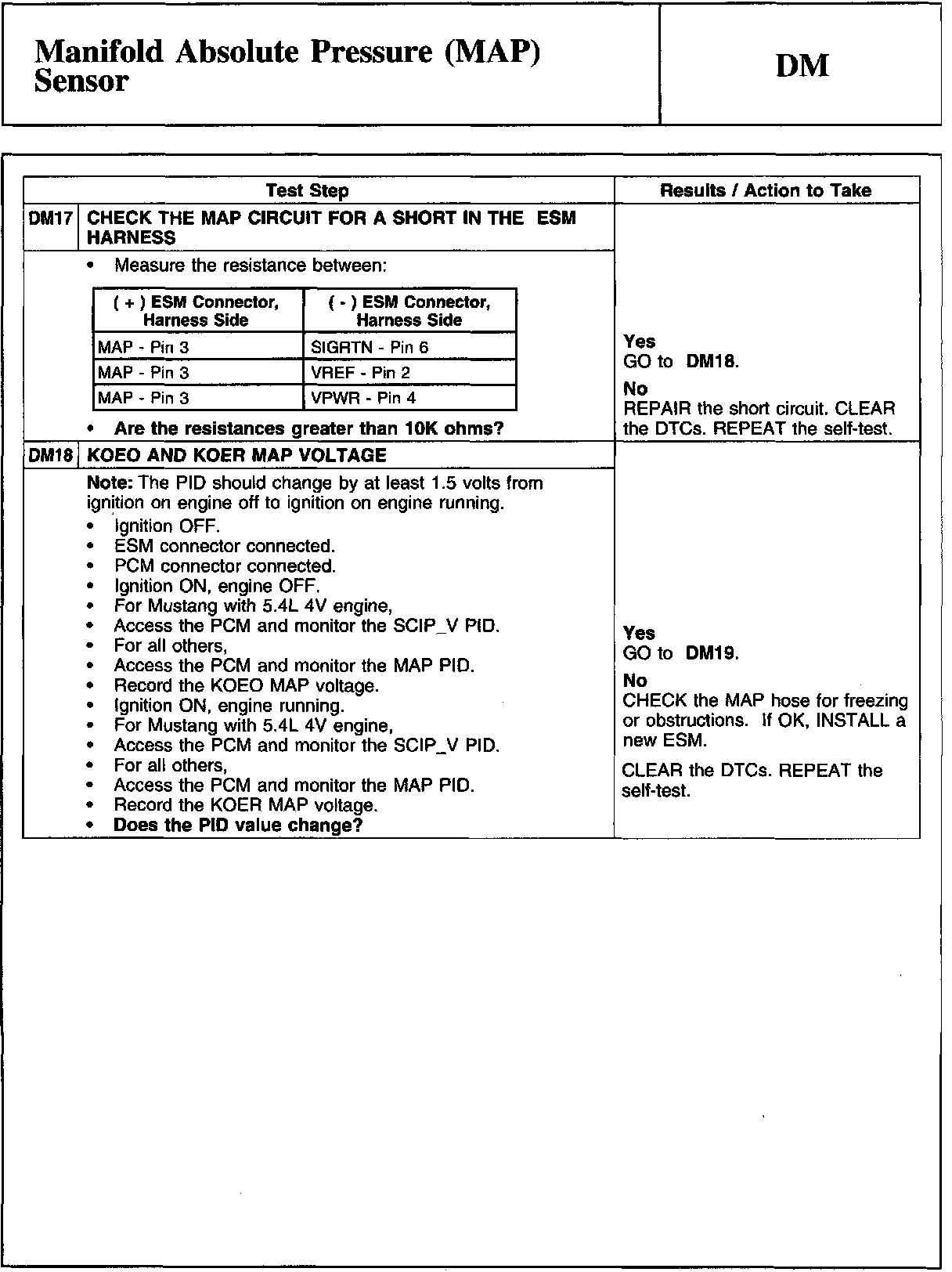

DM17-DM18:

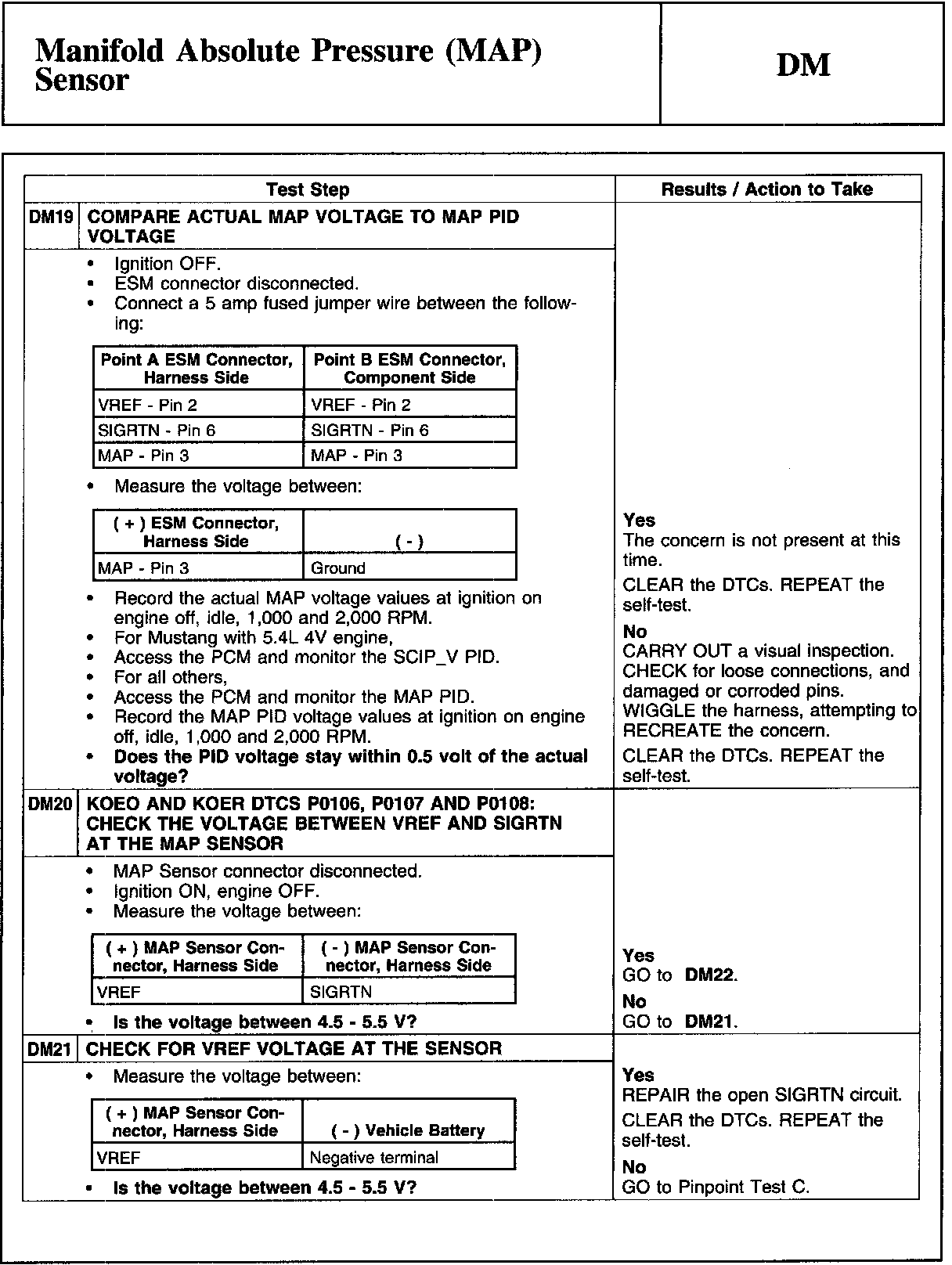

DM19-DM21:

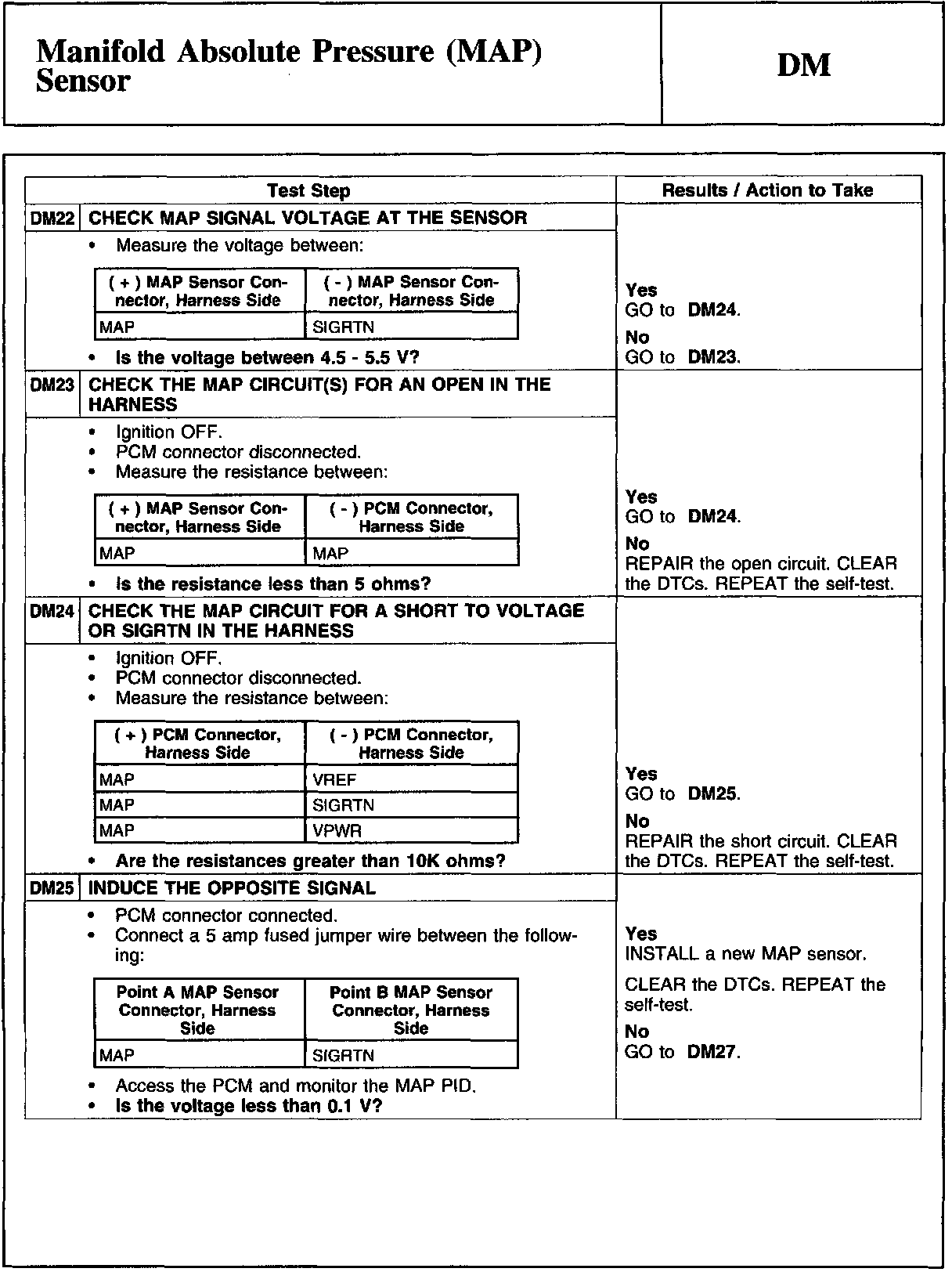

DM22-DM25:

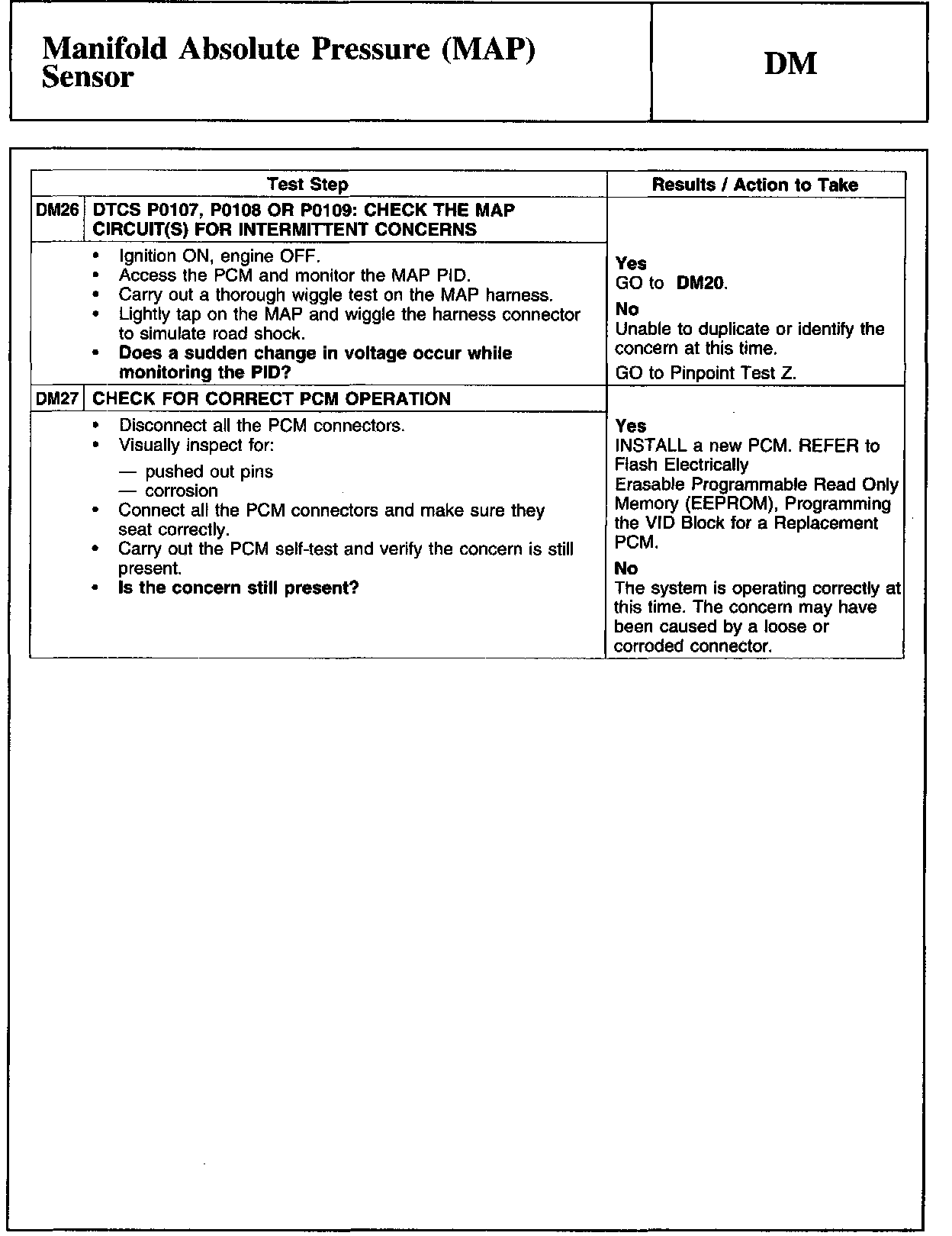

DM26-DM27:
