Engine Ignition Components - Exploded View

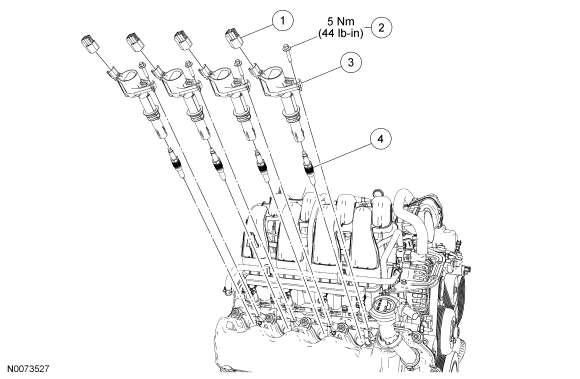

Fig 1: Ignition Components RH Side With Torque Specification
GF0045066Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Ignition coil-on-plug electrical connector (4 required) (part of 12B637)
2 W706175 Ignition coil-on-plug bolt (4 required)
3 12A366 Ignition coil-on-plug (4 required)
4 12405 Spark plug (4 required)

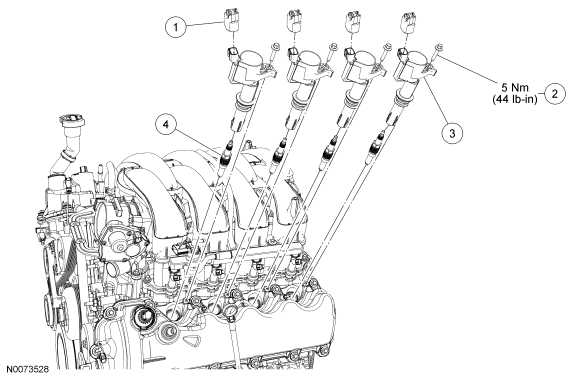

Fig 2: Ignition Components LH Side With Torque Specification
GF0045067Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Ignition coil-on-plug electrical connector (4 required) (part of 12B637)
2 W706175 Ignition coil-on-plug bolt (4 required)
3 12A366 Ignition coil-on-plug (4 required)
4 12405 Spark plug (4 required)
  1. For additional information, refer to the procedures in this article.
