Exhaust System

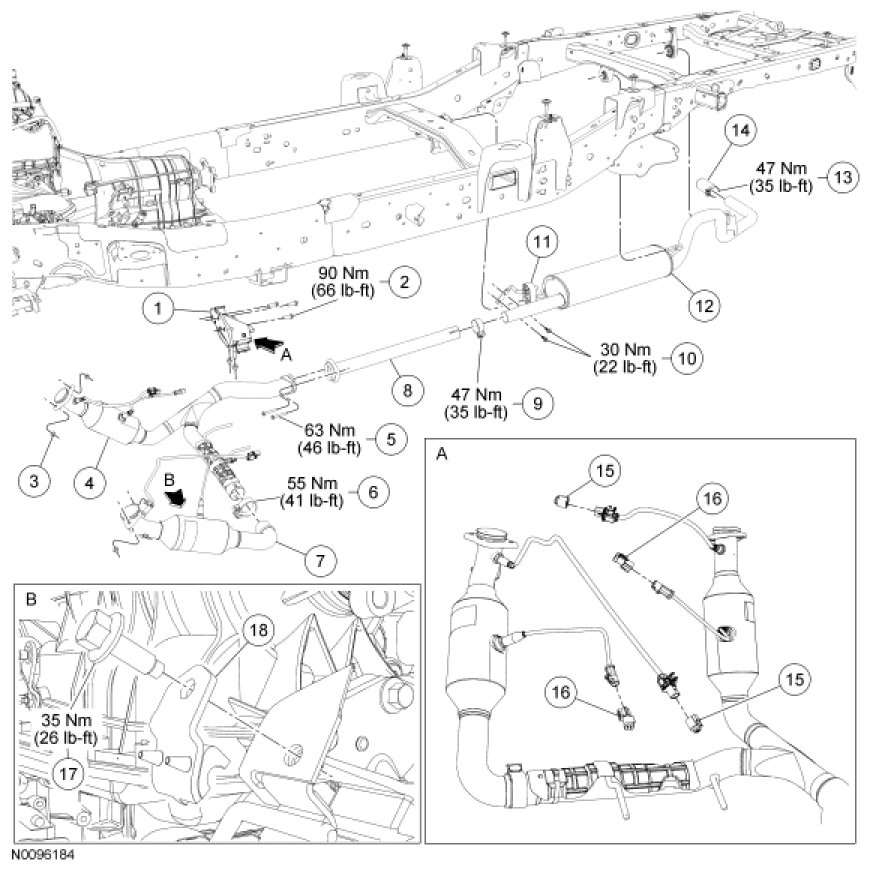

Exhaust System - Exploded View

NOTE: 2-Wheel Drive (2WD) shown, Four-Wheel Drive (4WD) similar.

NOTE: Exhaust system may vary by engine and wheelbase.

NOTE: Vehicle body removed from art for clarity.










1. For additional information, refer to the procedures.
