Ride Height

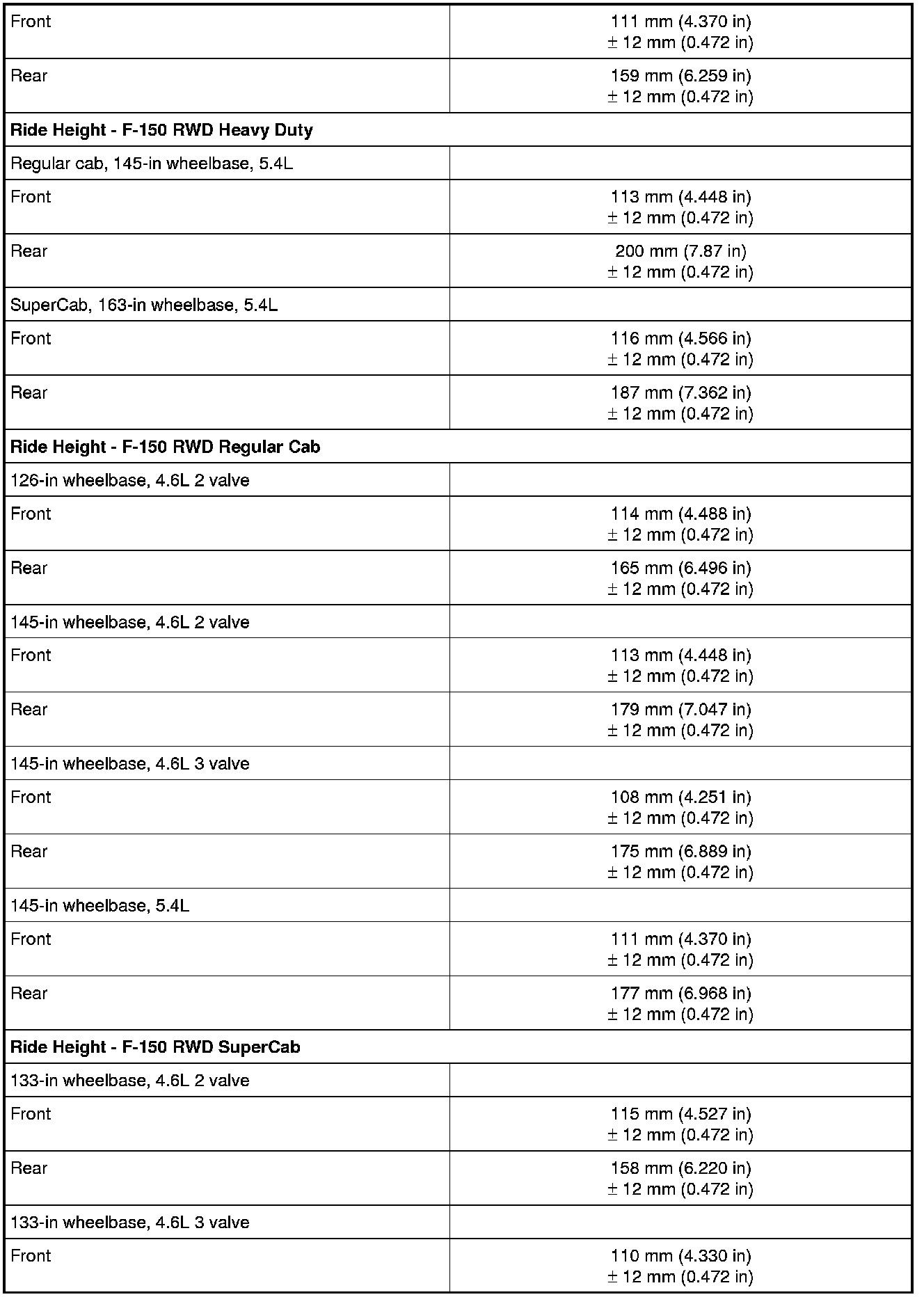

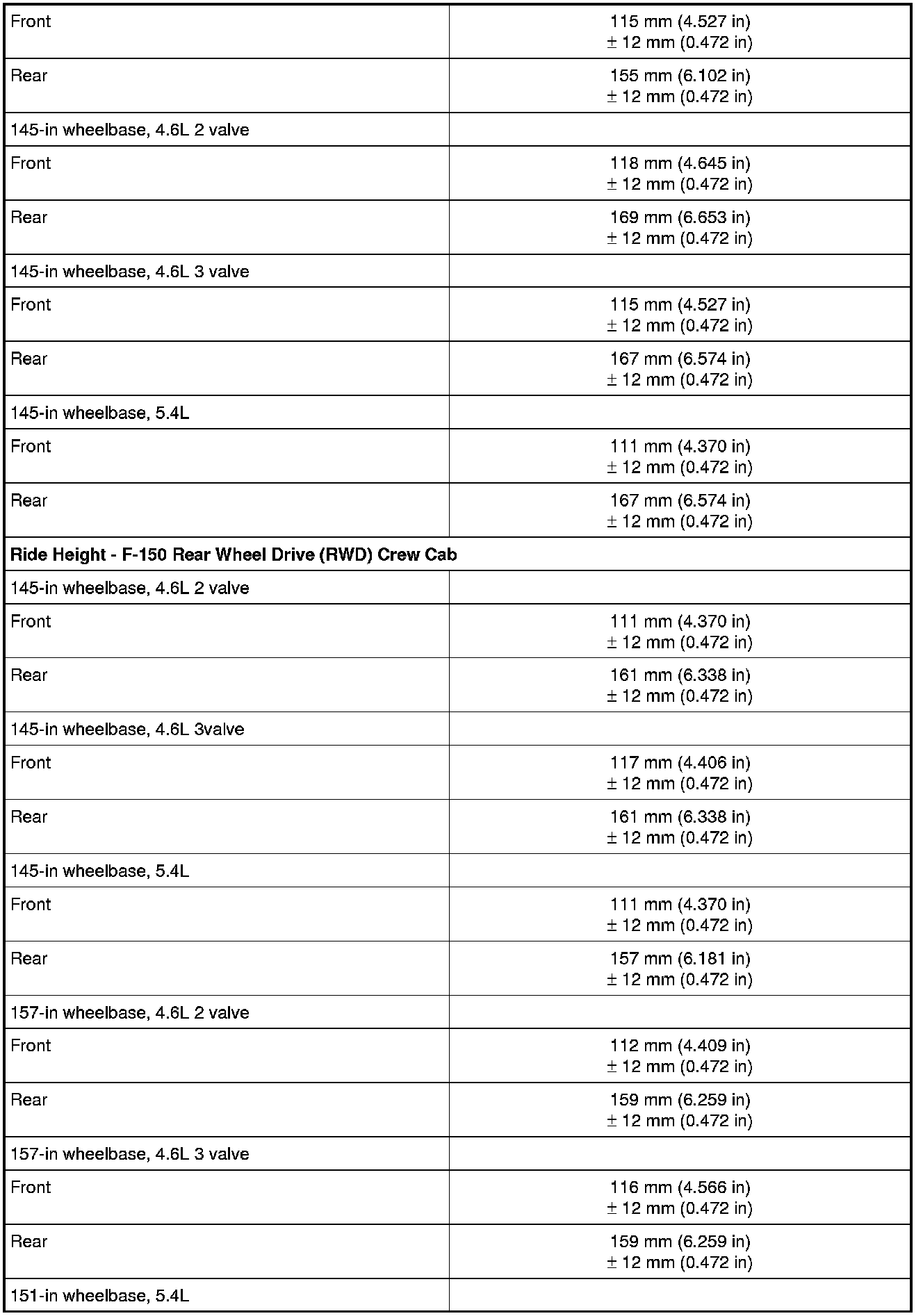

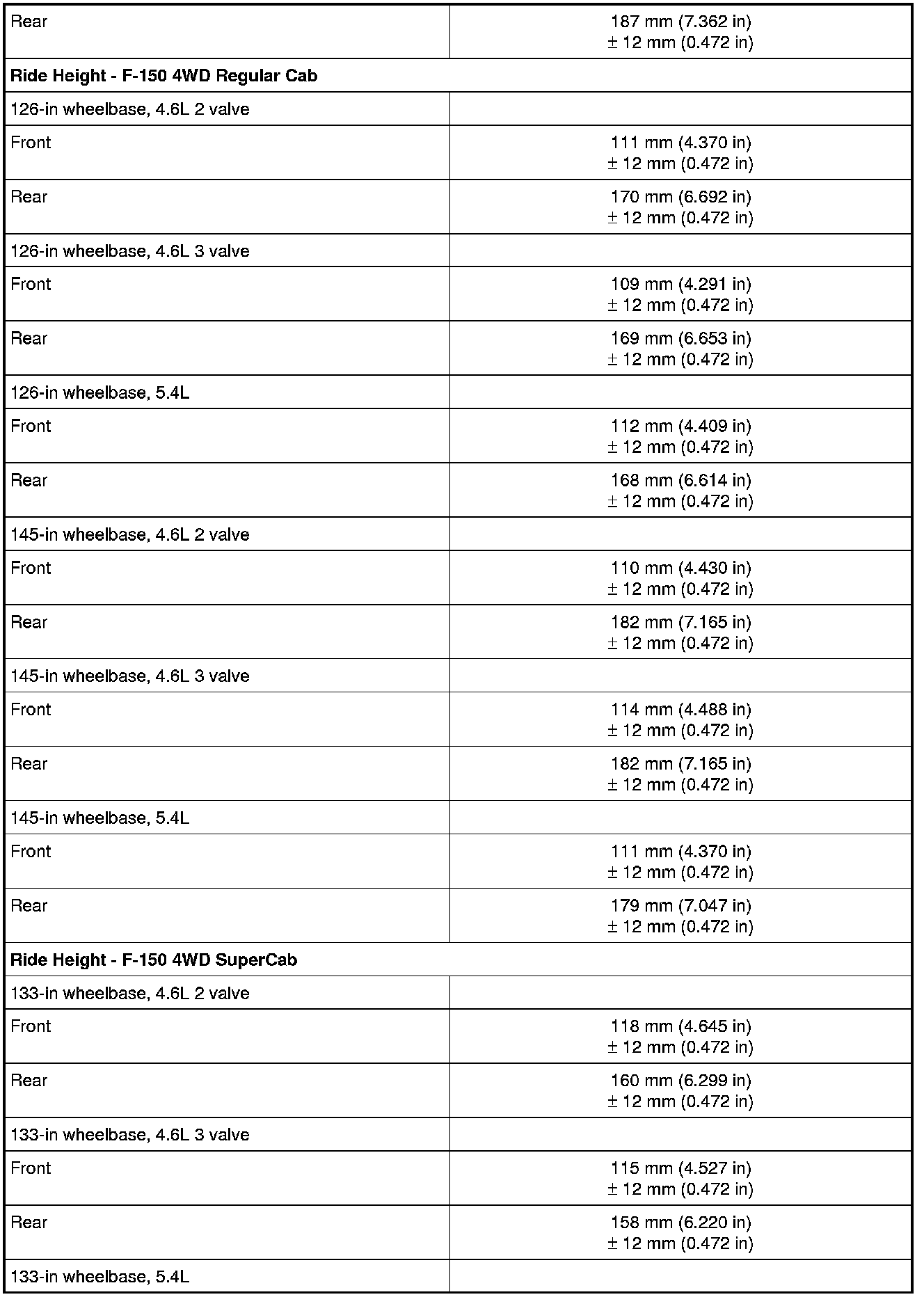

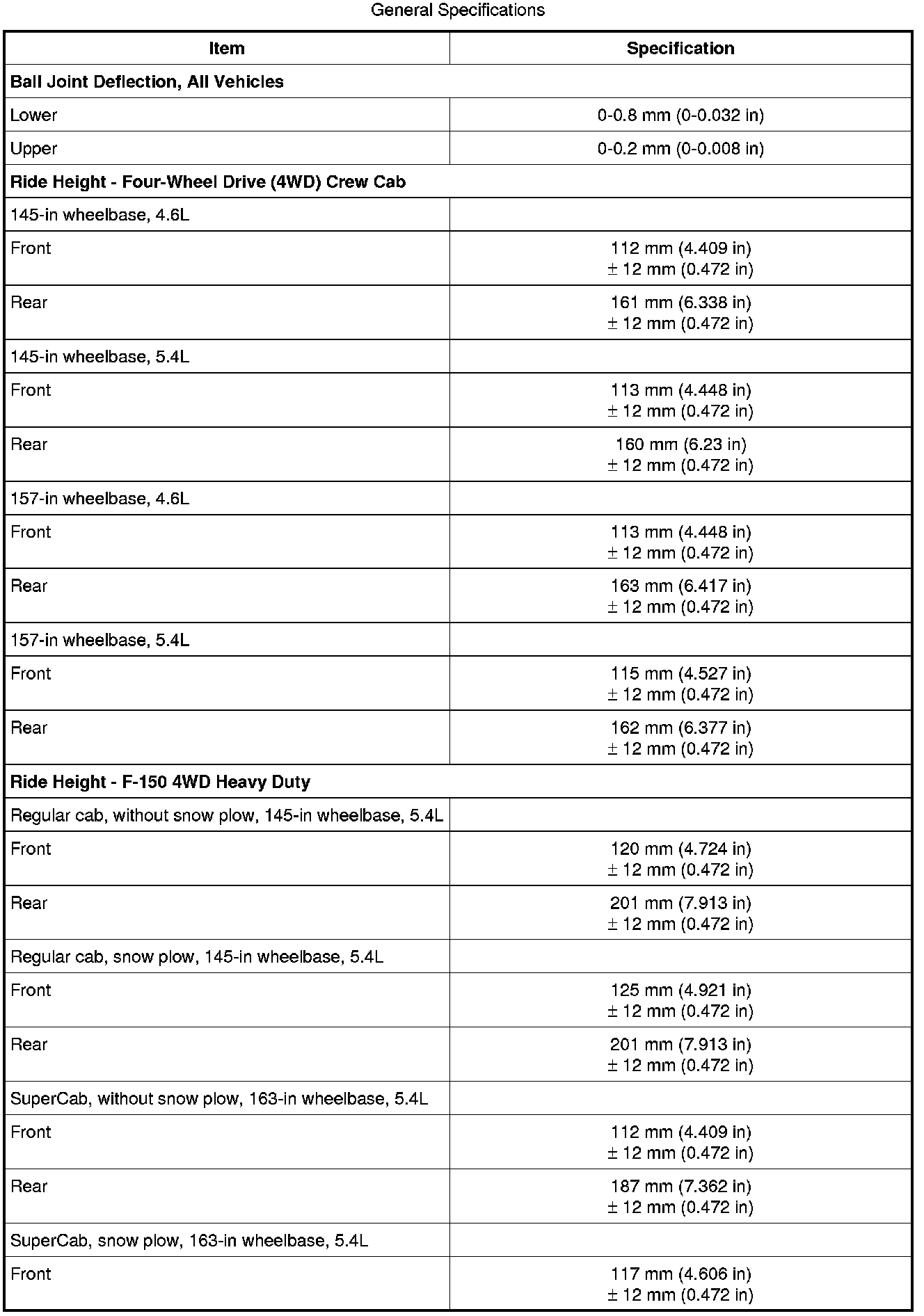

General Specifications (Part 1):





General Specifications (Part 2):





General Specifications (Part 3):





General Specifications (Part 4):





General Specifications (Part 5):
