Seat - Exploded View, Third Row

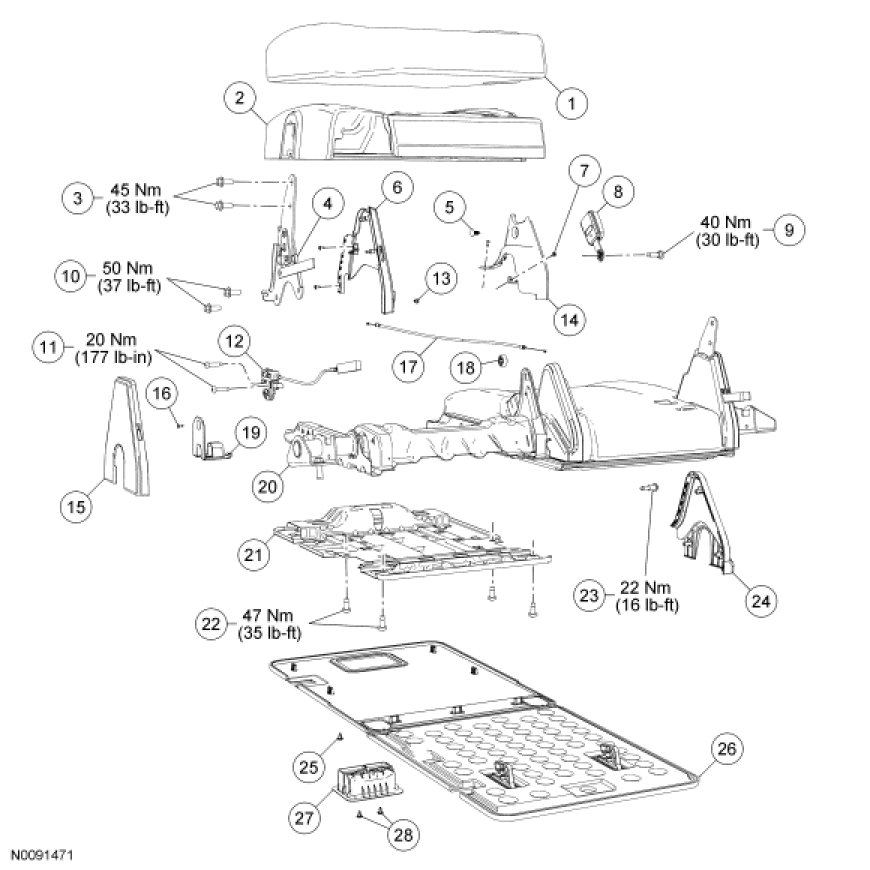

Seat - Exploded View, Third Row

Backrest

NOTE: LH shown, RH similar.











Cushion

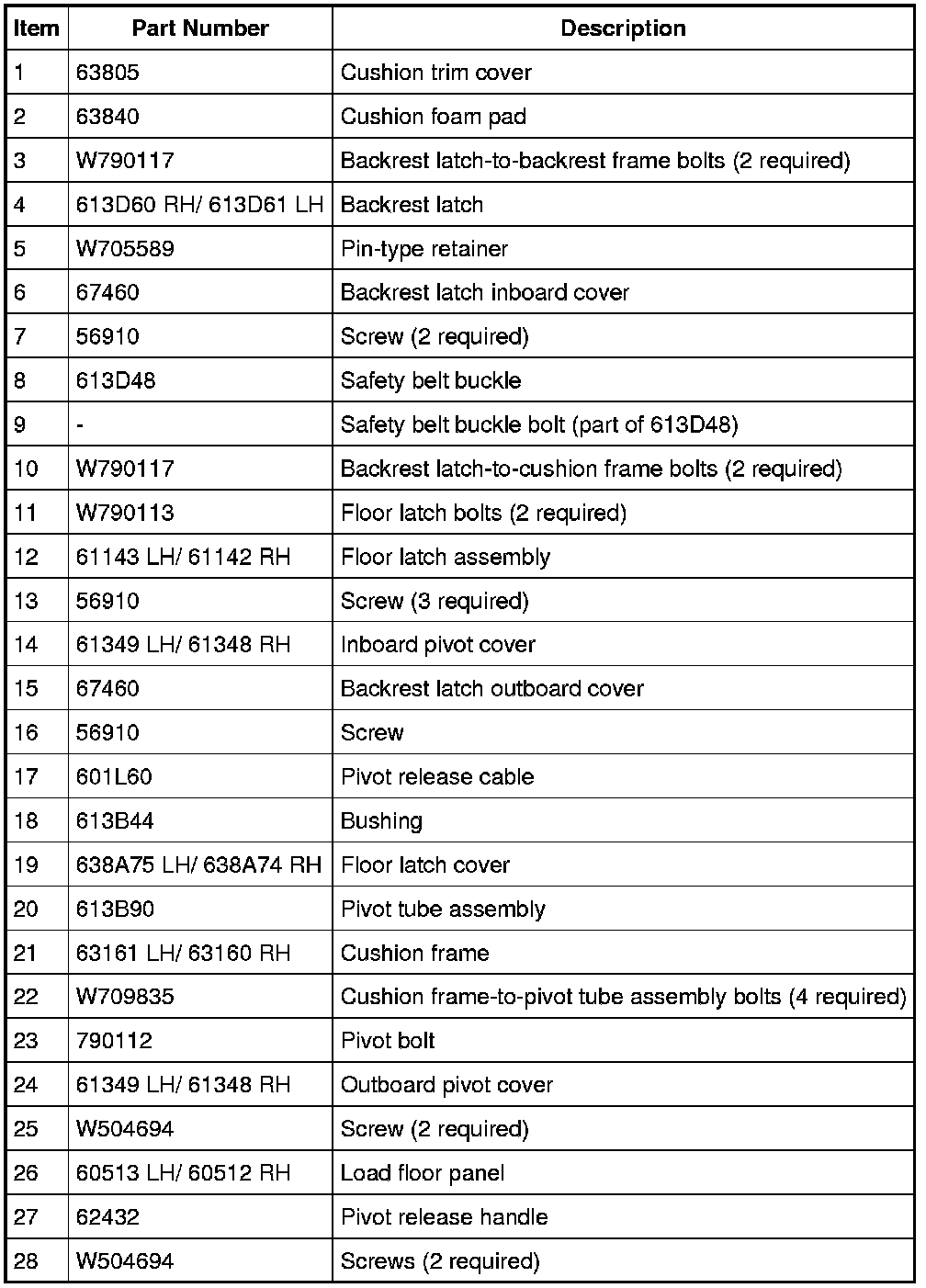

1. For additional information, refer to the procedures.
