Blower Motor: Service and Repair

Blower Motor









Removal and Installation

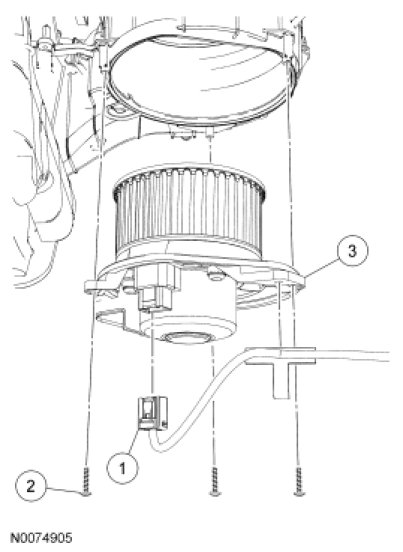

1. Disconnect the blower motor electrical connector and detach the wire harness from the blower motor.

2. Remove the 3 blower motor screws.

3. Remove the blower motor.

4. To install, reverse the removal procedure.
