Transmission Fluid Pan: Notes

MATERIAL

Item Specification
Motorcraft MERCON® LV Automatic Transmission Fluid
XT-10-QLV		 MERCON® LV
Motorcraft Metal Surface Prep
ZC-31-A		 -
Ultra Silicone Sealant
TA-29		 -

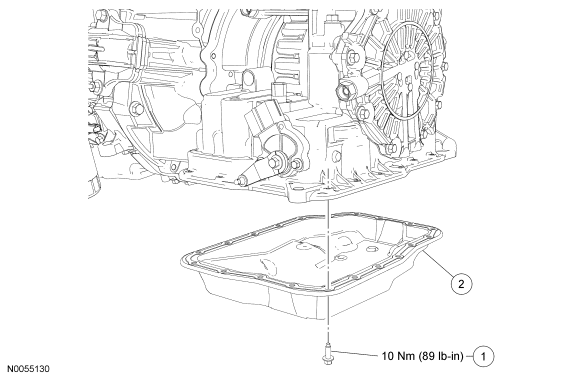

Fig 1: Transmission Fluid Pan Replacement Components With Torque Specifications
GF0039714Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W500213-S437 Transmission fluid pan bolt (20 required)
2 7A194 Transmission fluid pan
