Removal And Installation: Subwoofer: Notes

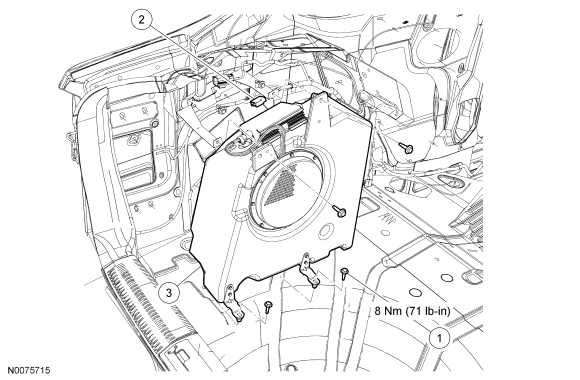

Fig 1: Subwoofer Replacement Components With Torque Specifications
GF0043613Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W505424-S Subwoofer bolts (4 required)
2 - Subwoofer amplifier electrical connector (part of 14A005)
3 18C804 Subwoofer
