Power Mirror Motor: Service and Repair

Exterior Mirror Motor

1. Remove the exterior mirror glass. For additional information, refer to Exterior Mirror Glass Exterior Mirror Glass.

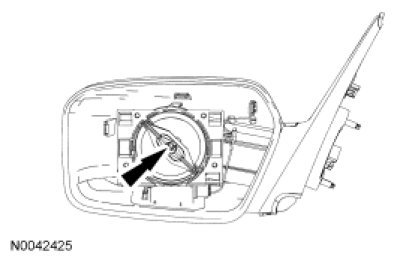

2. Remove the exterior mirror motor screw.

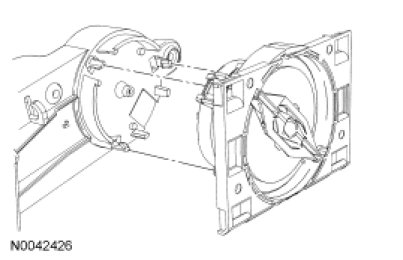

3. NOTE: Use a flat-blade screwdriver to remove the exterior mirror motor from the clips.

Remove the exterior mirror motor from the 3 mounting clips.

- Disconnect the electrical connector.





4. To install, reverse the removal procedure.
