Acceleration/Deceleration Sensor: Service and Repair

Stability Control Sensor Cluster













Removal and Installation

NOTE: When installing a new stability control sensor cluster, it must be calibrated to the ABS module. Follow the scan tool directions for the calibration procedures.

1. Remove the instrument panel lower center finish panel.

2. Disconnect the stability control sensor cluster electrical connector.

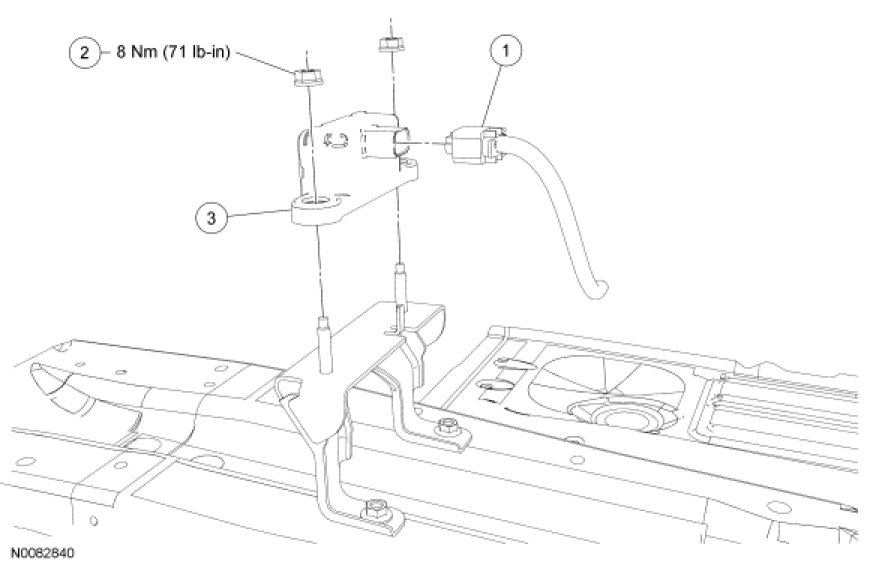

3. Remove the 2 stability control sensor cluster bracket bolts and the stability control sensor cluster.
- To install, tighten to 8 Nm (71 lb-in).

4. To install, reverse the removal procedure.

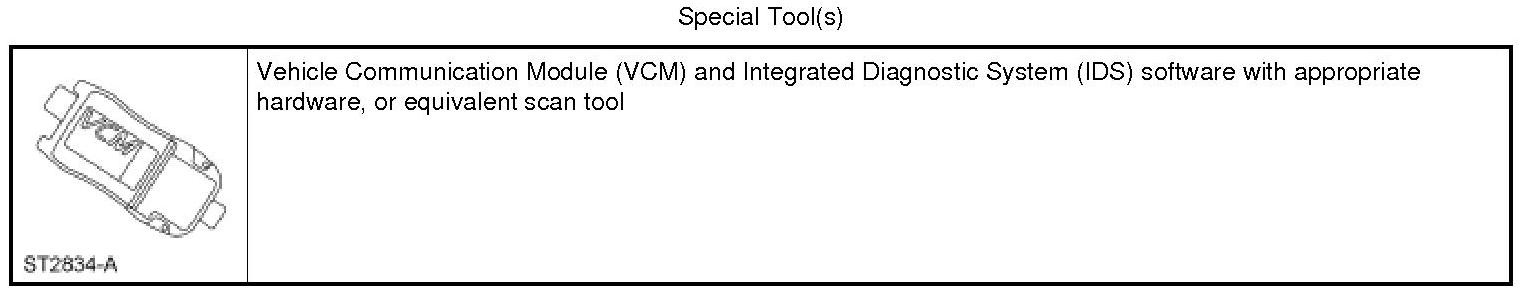

- Using the scan tool, calibrate the new stability control sensor cluster to the ABS module. Follow the scan tool directions for Interactive Vehicle Dynamics (IVD) Initialization.
