Steering Angle Sensor: Service and Repair

Steering Wheel Rotation Sensor

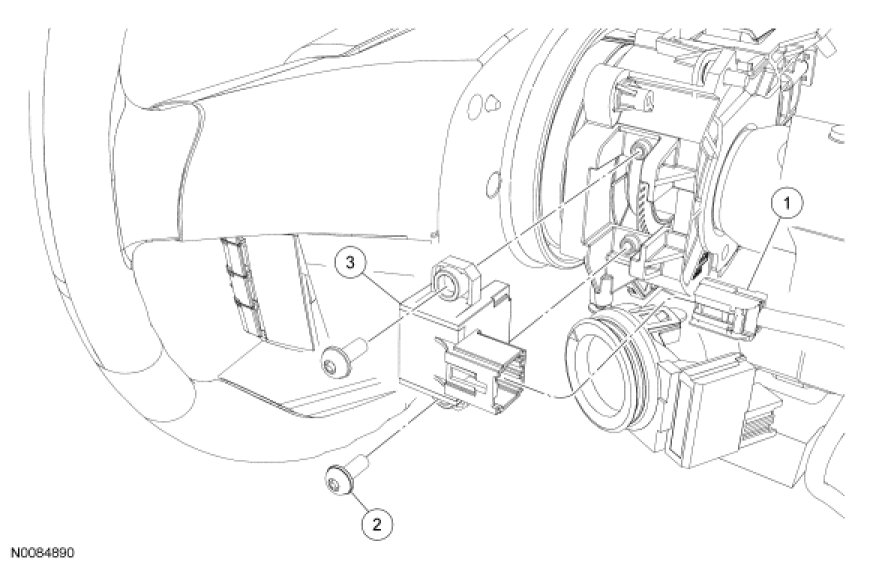

Removal and Installation

1. Remove the steering column shroud.

2. Disconnect the steering wheel rotation sensor electrical connector.

3. Remove the 2 bolts and the steering wheel rotation sensor.

4. To install, reverse the removal procedure.

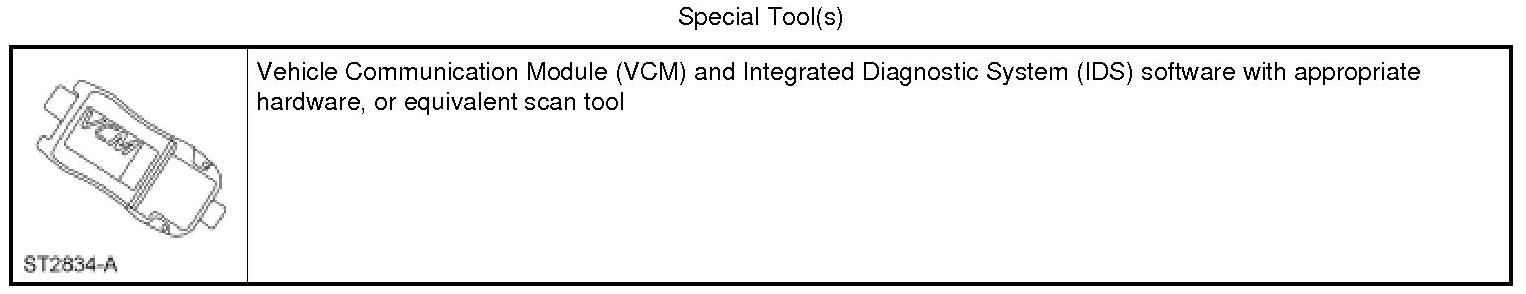

- Using the scan tool, calibrate the new steering wheel rotation sensor to the ABS module. Follow the scan tool instructions for Interactive Vehicle Dynamics (IVD) Initialization.
