Traction Control Switch: Service and Repair




Traction Control Switch

Removal and Installation

1. Remove the instrument panel center finish panel.

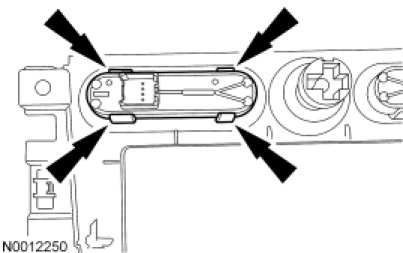

2. Press the retaining tabs and remove the traction control switch.





3. To install, reverse the removal procedure.
