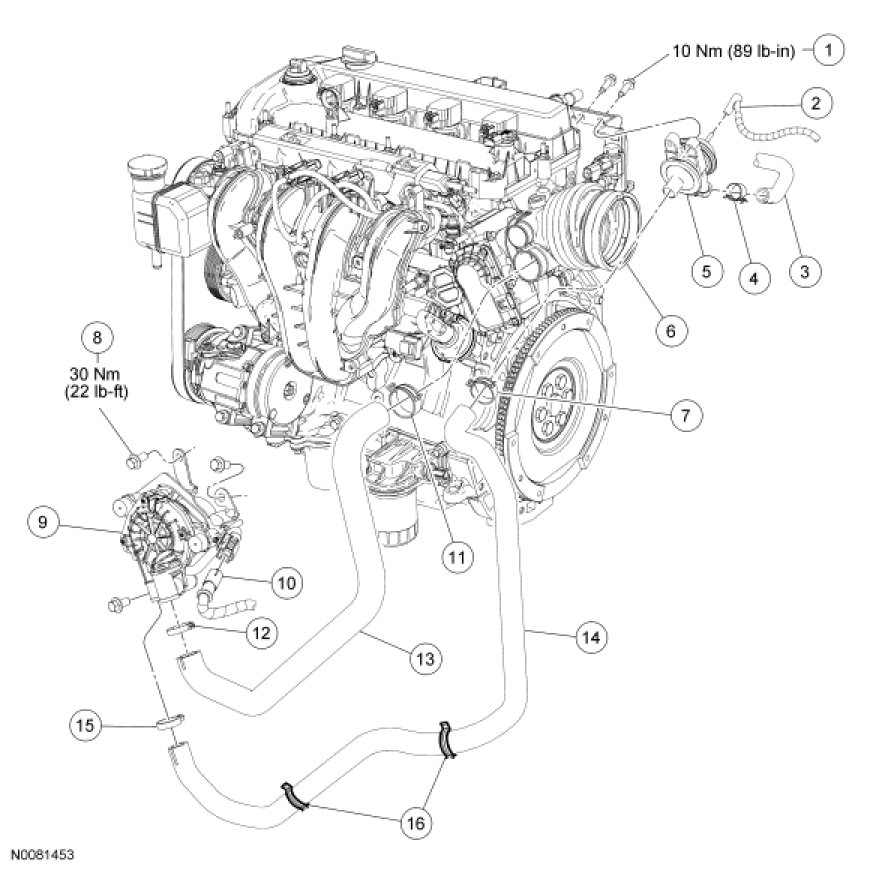

Secondary Air Injection System (AIR) Components - Exploded View




Secondary Air Injection System (AIR) Components - Exploded View









1. For additional information, refer to the procedures.
