Intermediate Shaft Speed Sensor

Intermediate Shaft Speed Sensor





Intermediate Shaft Speed Sensor









Removal

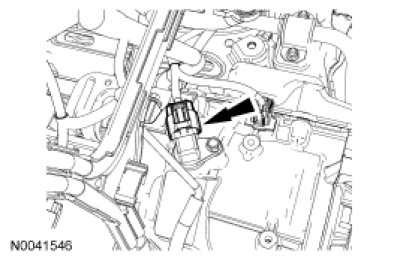

1. Disconnect the intermediate shaft speed sensor electrical connector.

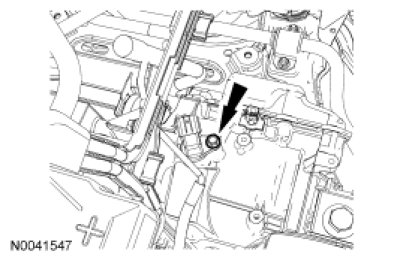

2. Remove the bolt and the intermediate shaft speed sensor.

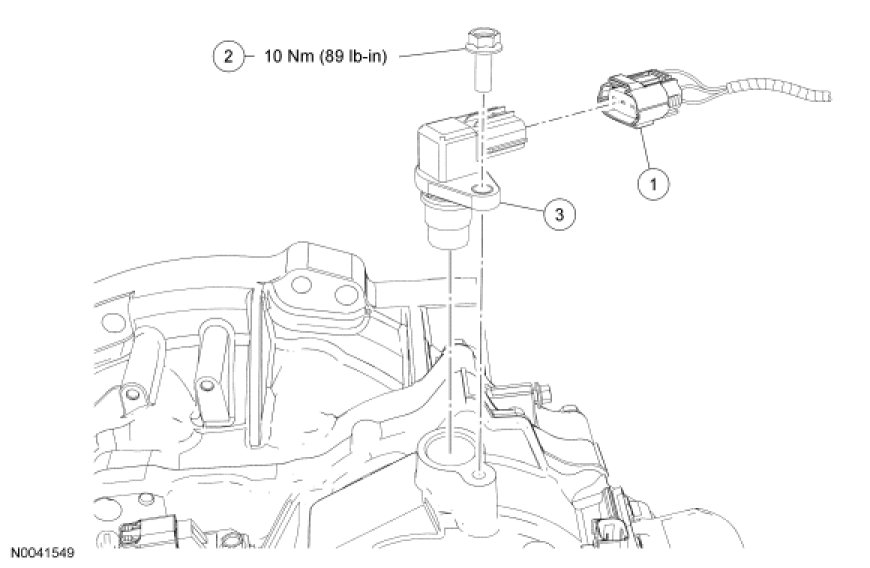

- To install, tighten to 10 Nm (89 lb-in).

- Check the sensor bore.

- Check the O-ring seal for nicks or cuts and install a new O-ring if necessary.





Installation

1. NOTE: Apply a light coat of petroleum jelly to the O-ring seal before installation.

NOTE: Apply thread sealant to the bolt.

To install, reverse the removal procedure.
