Windshield Washer Pump: Service and Repair

Washer Pump





Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the RH front fender splash shield.

3. WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.

NOTICE: When installing the windshield washer pump, be careful not to damage the rubber grommet.

NOTE: To prevent spilling windshield washer fluid, drain the windshield washer reservoir before washer pump removal.

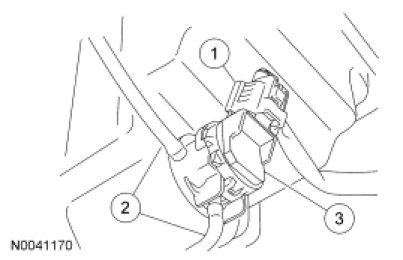

Remove the windshield washer pump.

1. Disconnect the electrical connector.

2. Disconnect the hoses.

3. Remove the windshield washer pump.





4. NOTICE: Do not operate the windshield washer pump prior to filling the windshield washer reservoir. Failure to follow these instructions may result in premature pump failure.

To install, reverse the removal procedure.

- Fill the windshield washer reservoir with windshield washer fluid.
