Ignition Switch Lock Cylinder: Service and Repair

Ignition Lock Cylinder













Removal and Installation

1. Remove the steering column cover.

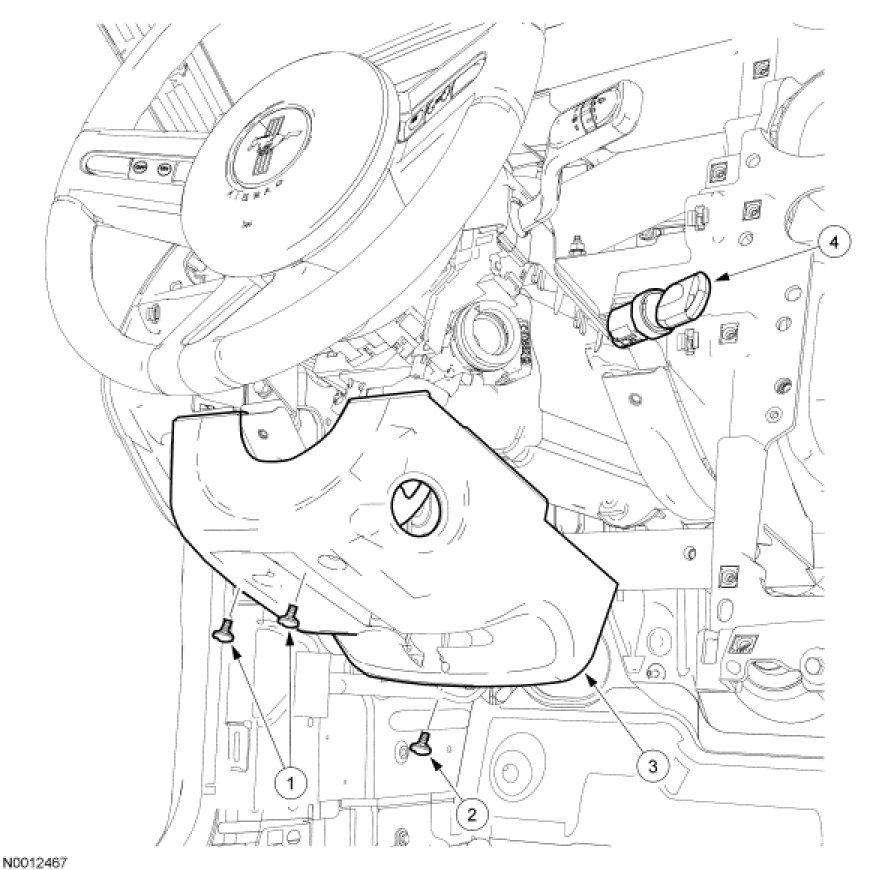

2. Remove the 3 screws and the lower steering column shroud.

3. Turn the key to the RUN position.

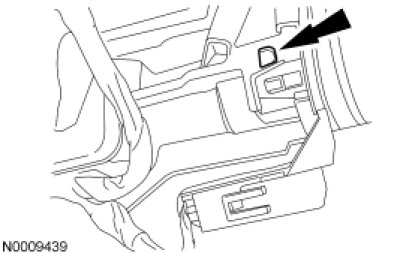

4. Insert a small punch into the hole and remove the ignition lock cylinder.





5. To install, reverse the removal procedure.
- Lubricate the ignition lock cylinder after installation.
