Blower Motor: Service and Repair

Blower Motor

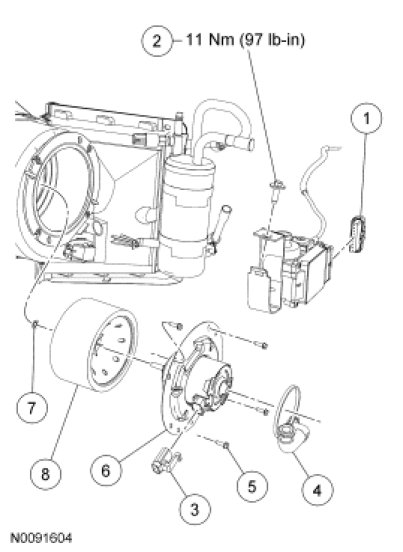

Removal and Installation

1. Disconnect the speed control actuator electrical connector.

2. Remove the speed control actuator bolt and position the speed control actuator aside.
- To install, tighten to 11 Nm (97 lb-in).

3. Disconnect the blower motor electrical connector.

4. Remove the blower motor vent tube.

5. Remove the 4 blower motor screws and the blower motor.

6. Remove the blower motor wheel clip.

7. Remove the blower motor wheel.

8. To install, reverse the removal procedure.
