Torque & Sequence

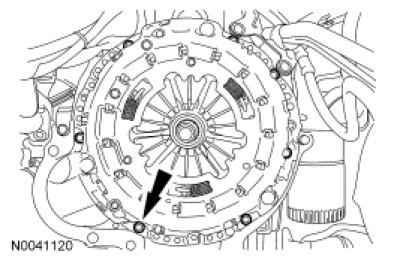

Align the clutch disc and the clutch pressure plate. Install the 6 bolts and tighten in a cross pattern sequence.

Tighten to 27 Nm (20 lb-ft).
