Windshield Washer Switch: Service and Repair

Steering Column Multifunction Switch

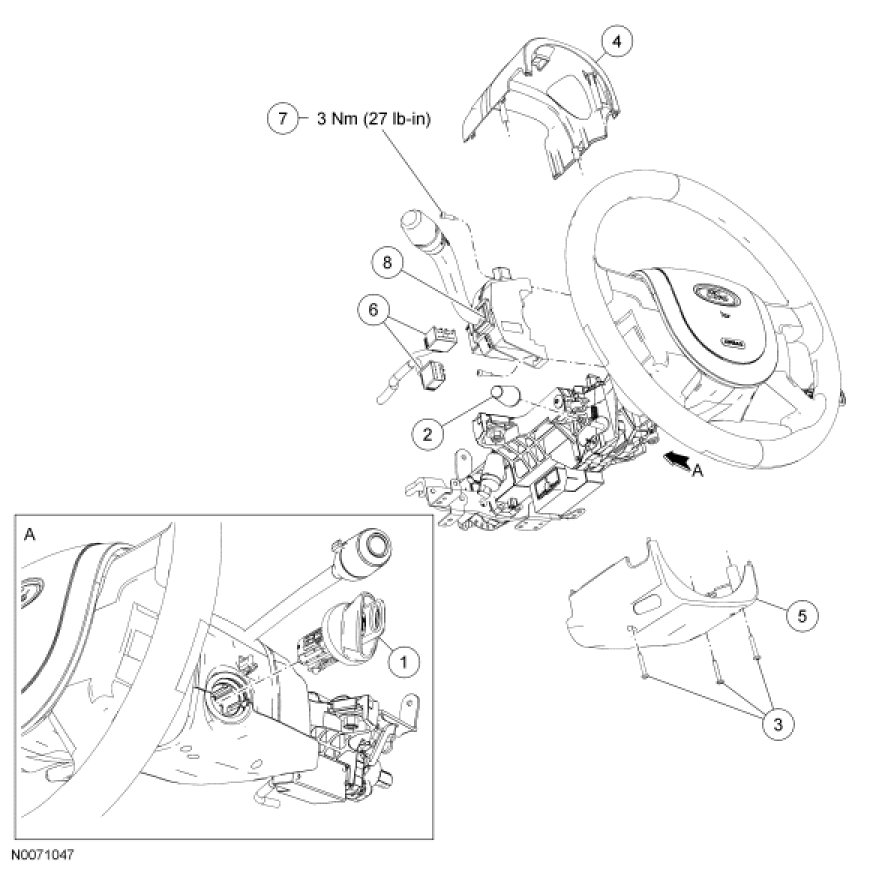

Removal and Installation

1. Remove the ignition switch lock cylinder in the following sequence.

1. Insert the ignition key into the ignition switch lock cylinder and turn to the RUN position.

2. Push the ignition switch lock cylinder release tab with a punch while pulling out the ignition switch lock cylinder.

2. If equipped, remove the tilt release lever/ handle.

3. Remove the 3 steering column shroud screws and the upper and lower steering column shrouds.

4. Disconnect the multifunction switch electrical connectors.

5. Remove the 2 screws and the multifunction switch.
- To install, tighten to 3 Nm (27 lb-in).

6. To install, reverse the removal procedure.
