Removal And Installation: Door: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

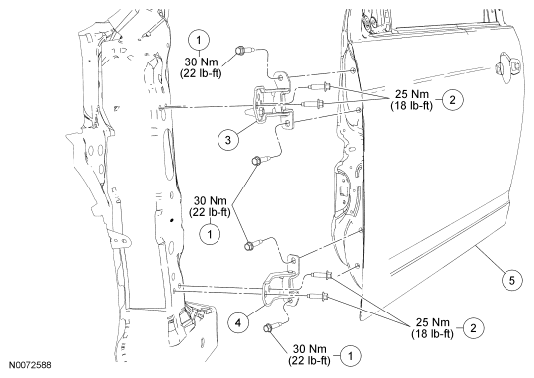

Front door shown in the illustration, rear door similar.
Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
W711119 |
Hinge-to-door bolts |
| 2 |
W506023 |
Hinge-to-body bolts |
| 3 |
5422800 |
Upper hinge |
| 4 |
5422810 |
Lower hinge |
| 5 |
5420124 |
Front door |
