Test DA: Intake Air Temperature (IAT) Sensor

PINPOINT TEST DA: INTAKE AIR TEMPERATURE (IAT) SENSOR

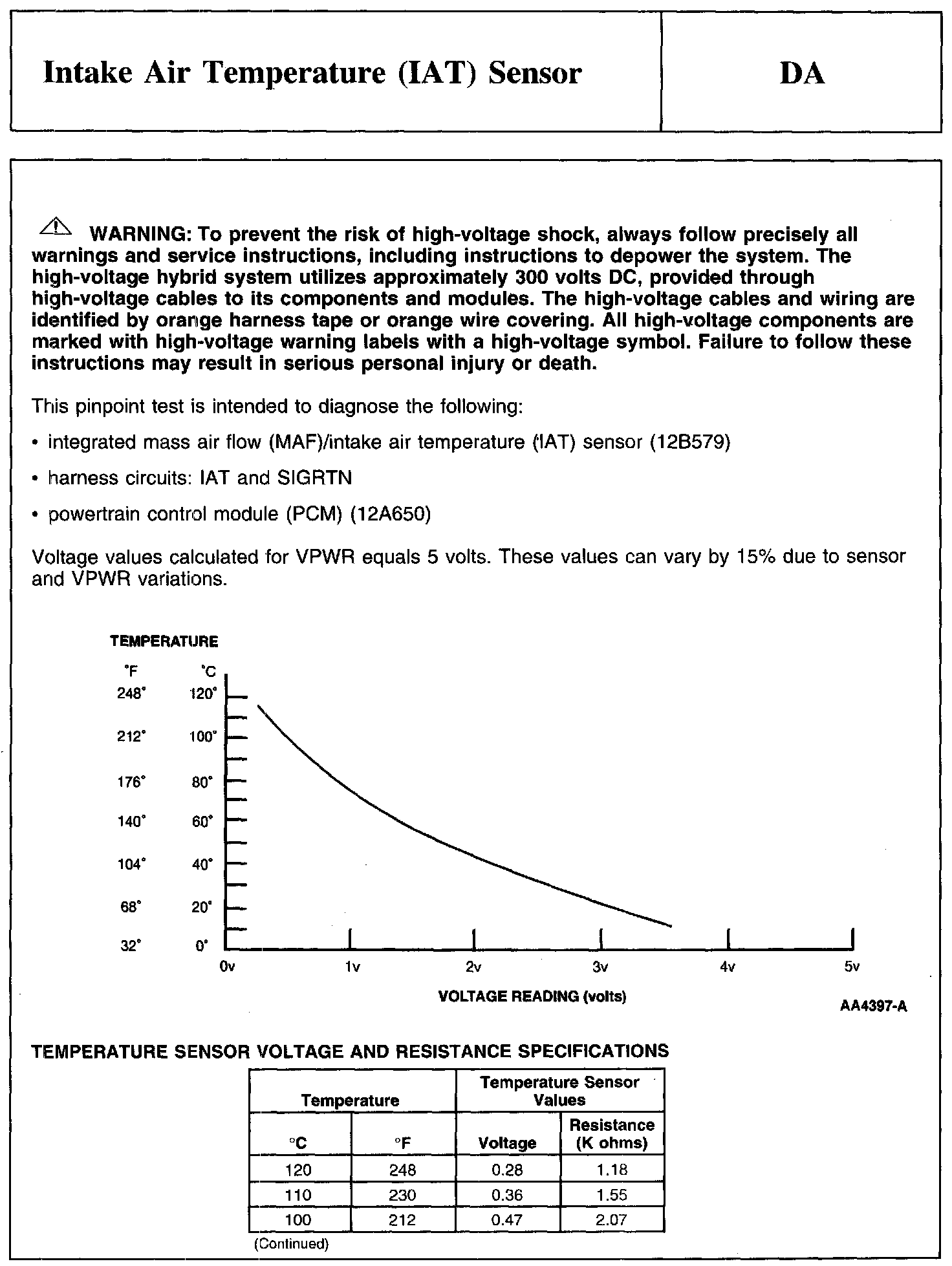

Warning And Temperature Sensor Voltage And Resistance Specifications:

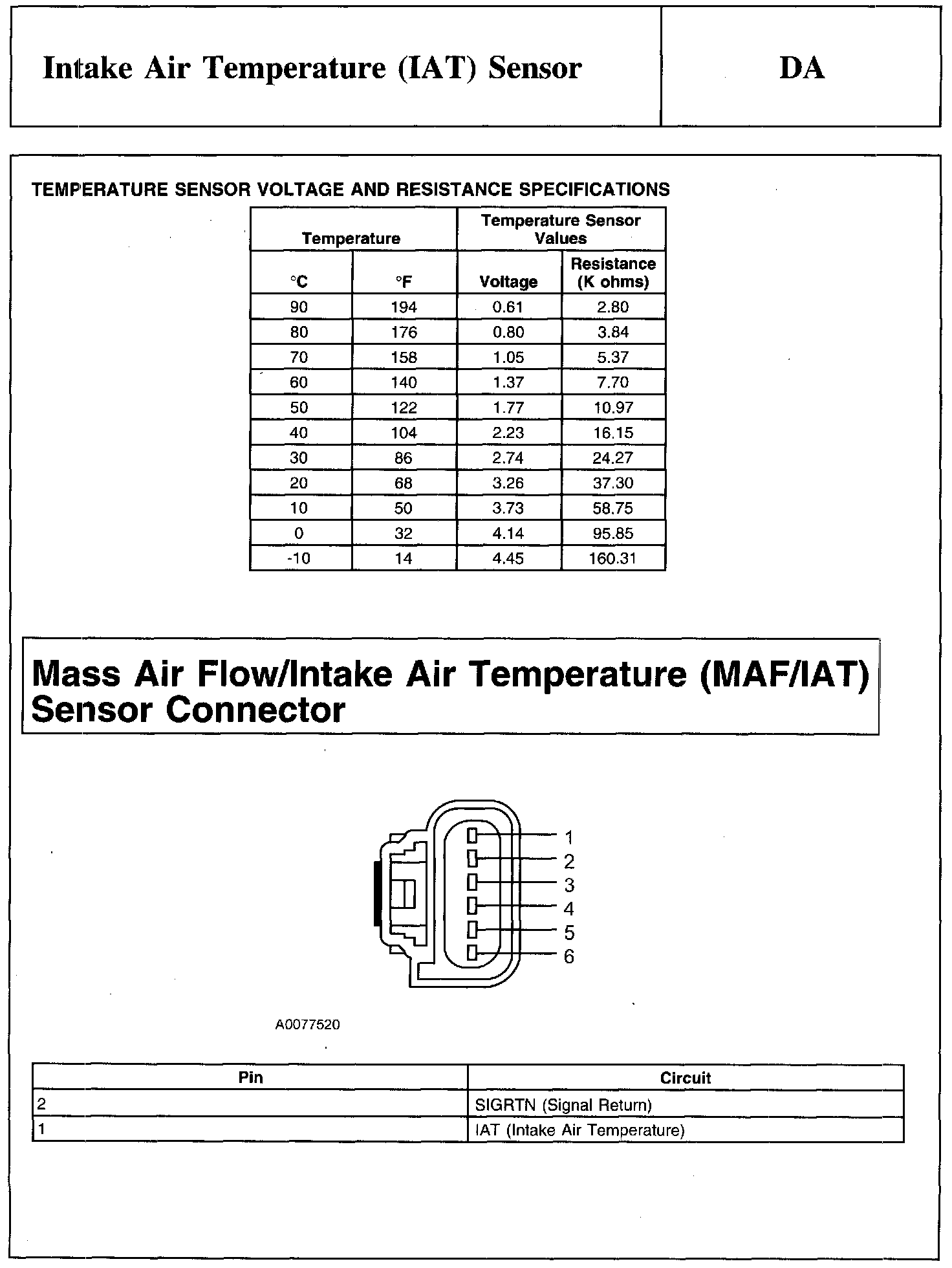

Temperature Sensor Voltage And Resistance Specifications And Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Connector:

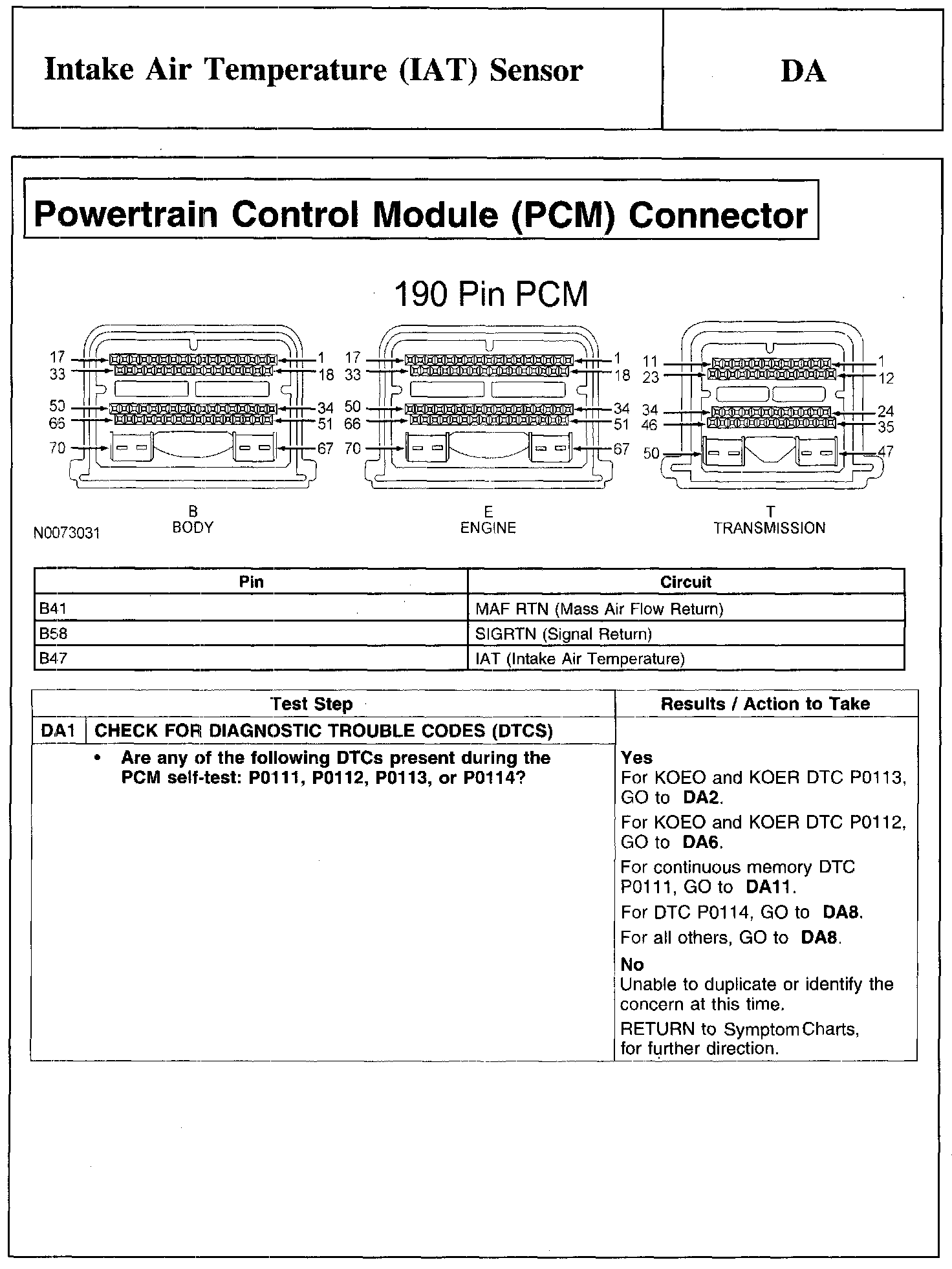

DA1:

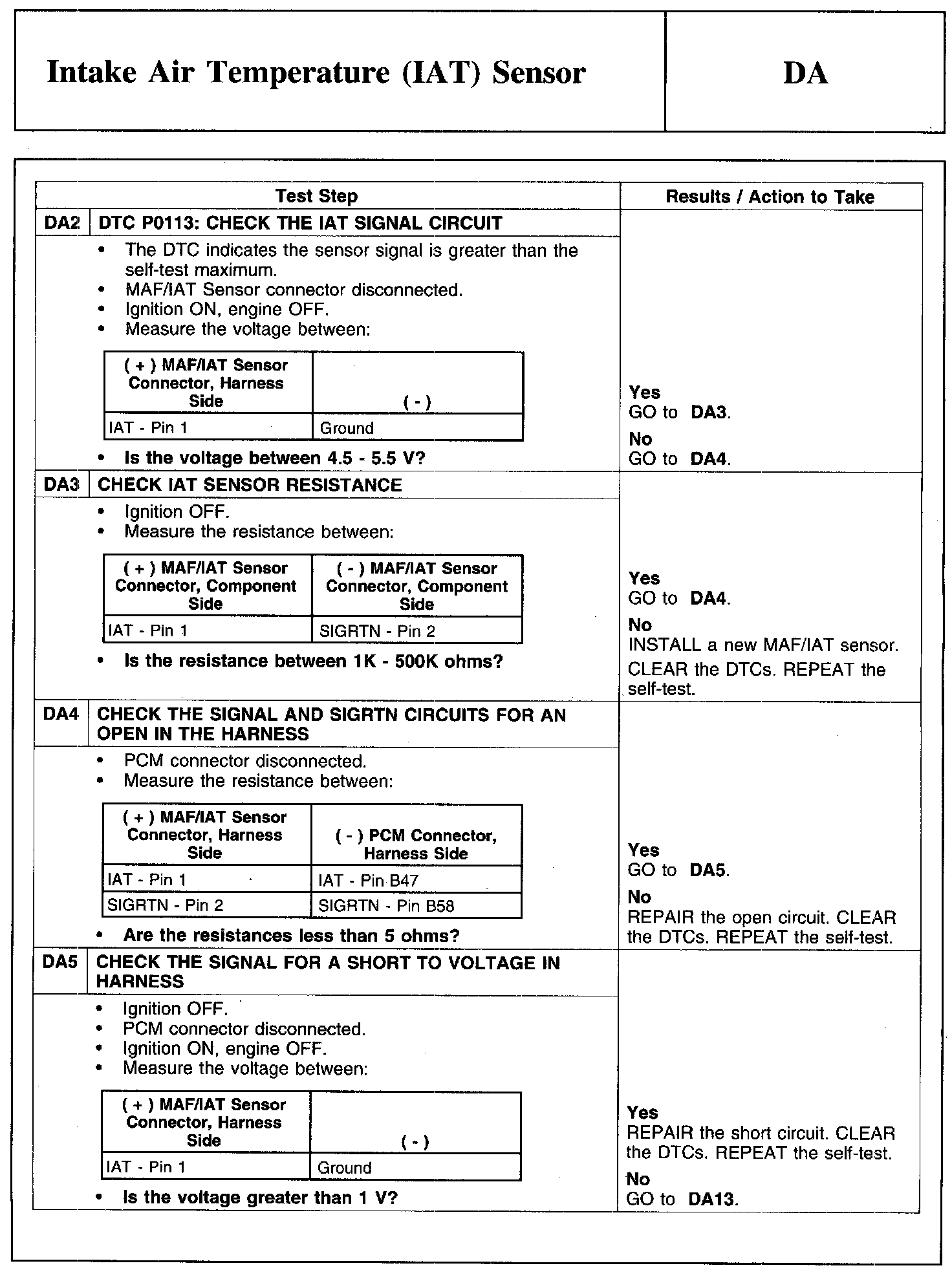

DA2-DA5:

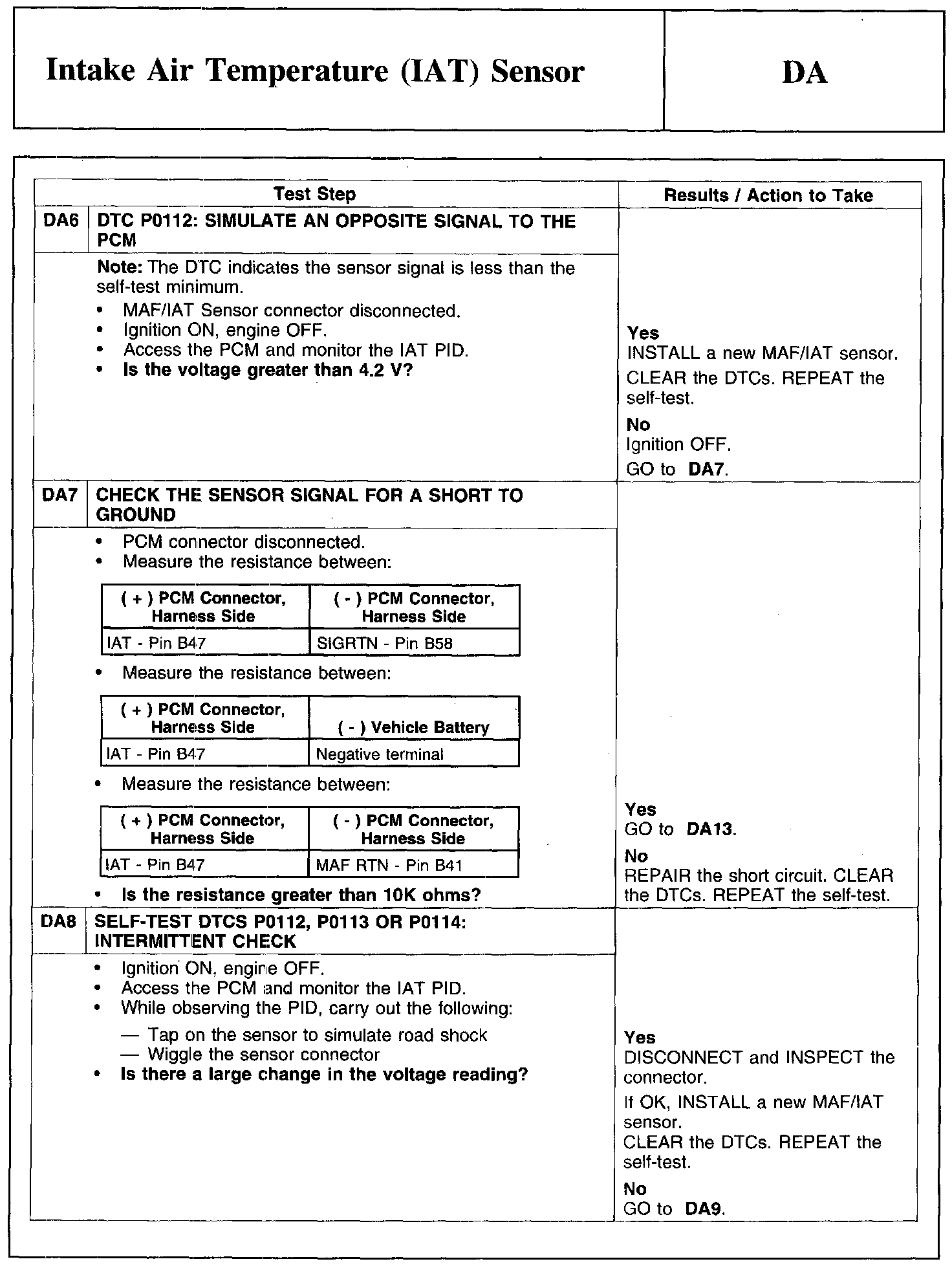

DA6-DA8:

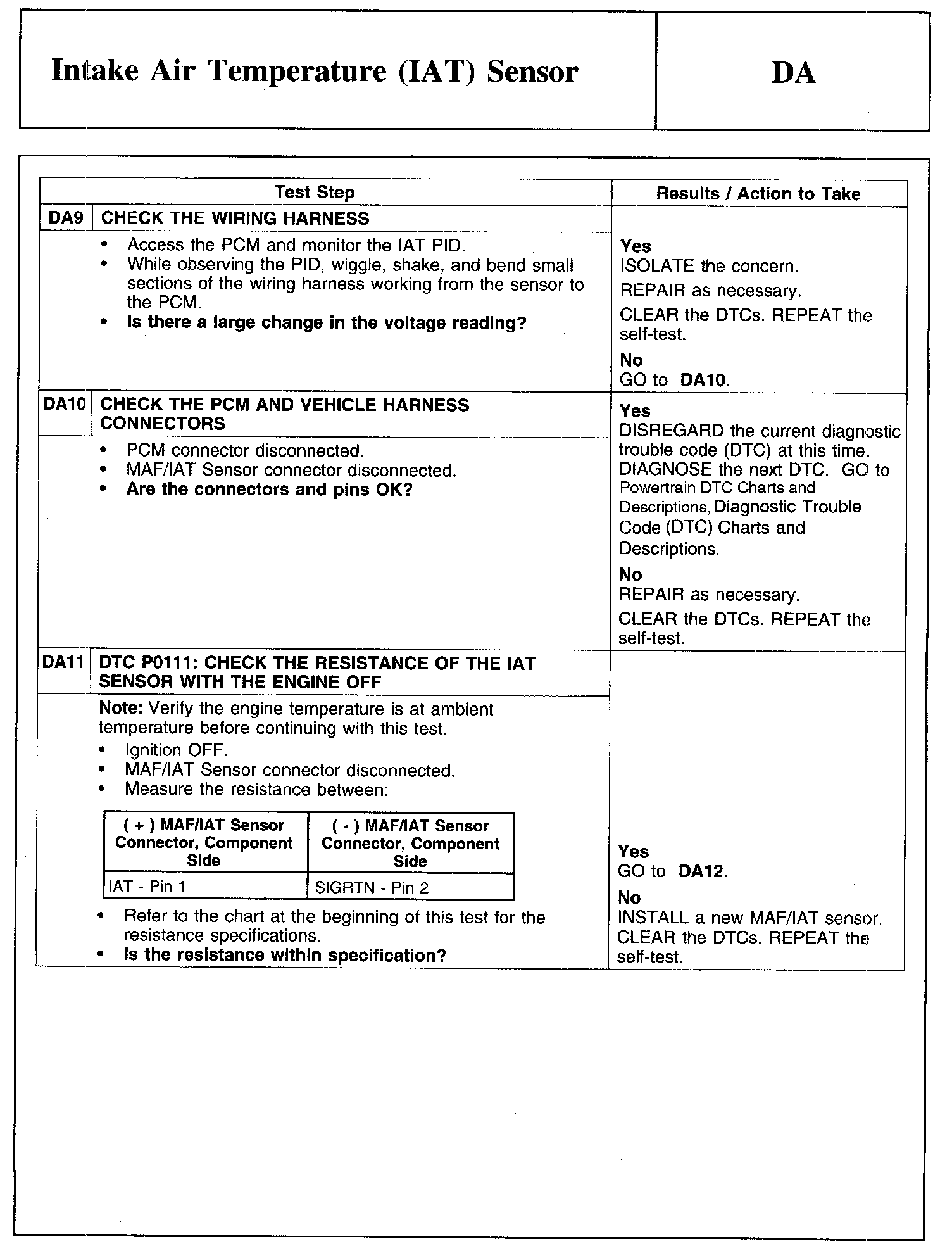

DA9-DA11:

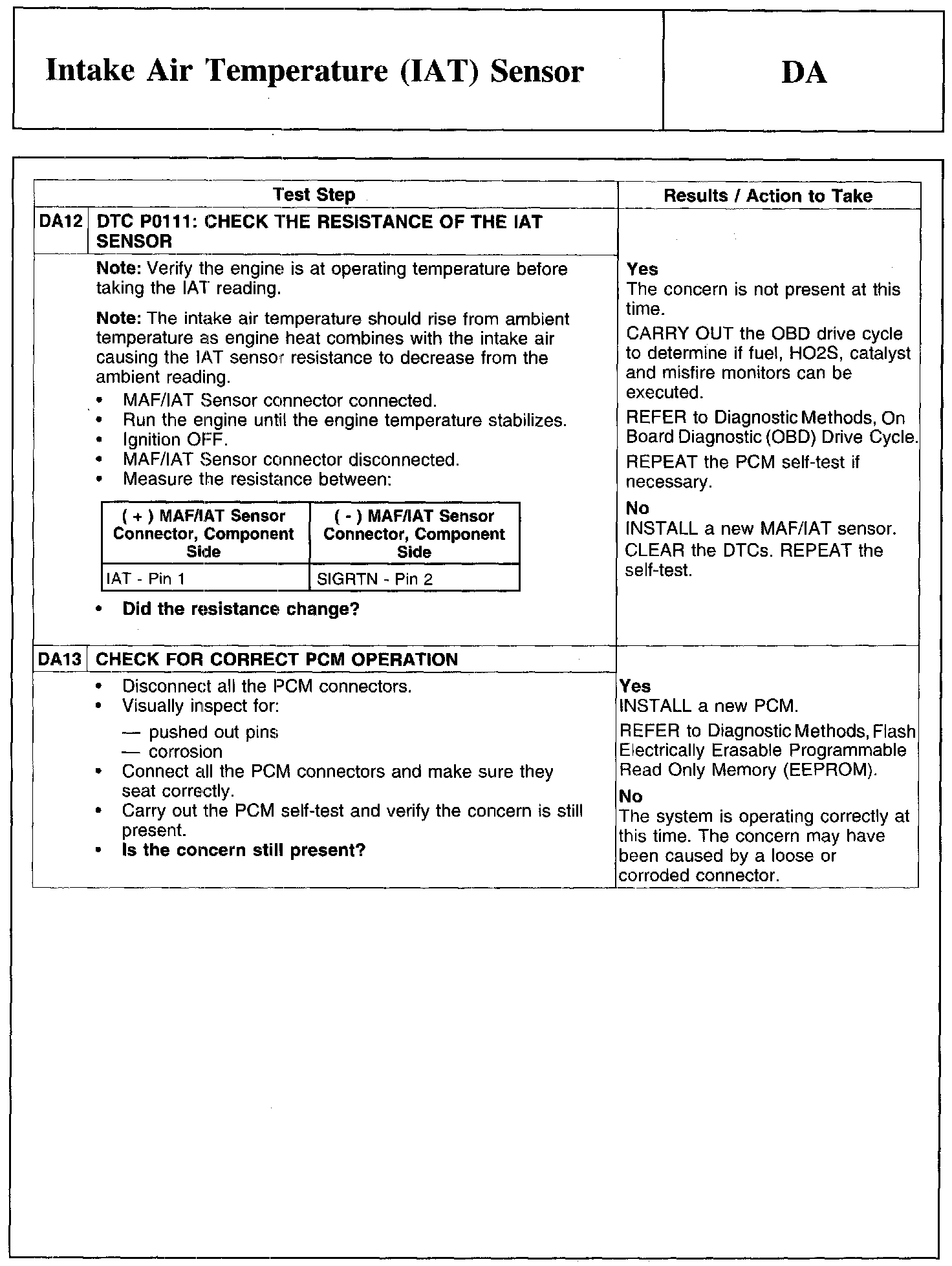

DA12-DA13:
