Test TZ: Vehicle Mode Signal
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test TZ: Vehicle Mode Signal

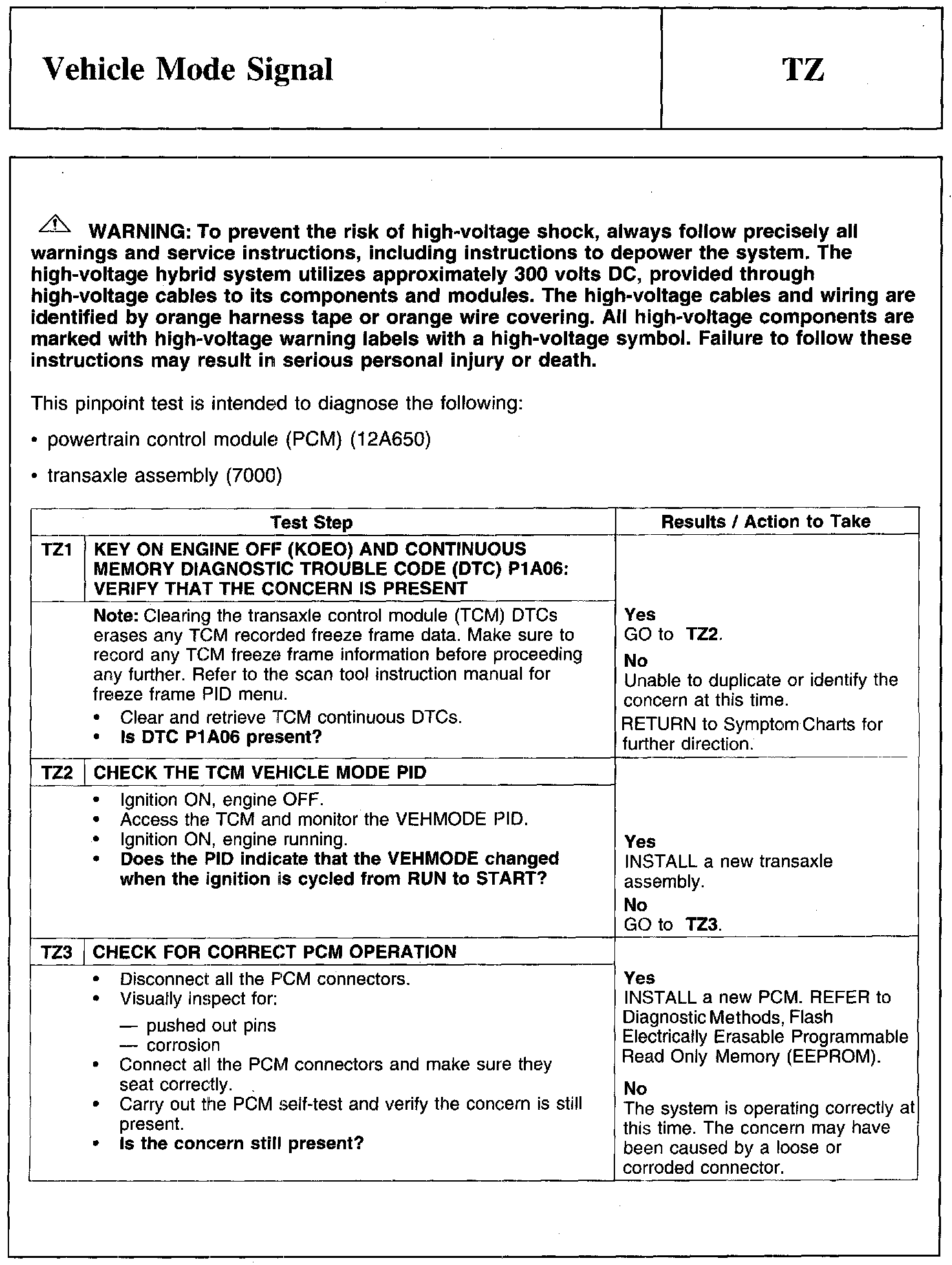

PINPOINT TEST TZ: VEHICLE MODE SIGNAL
TZ1-TZ3:
