Power Door Lock Switch: Service and Repair

Door Lock Control Switch

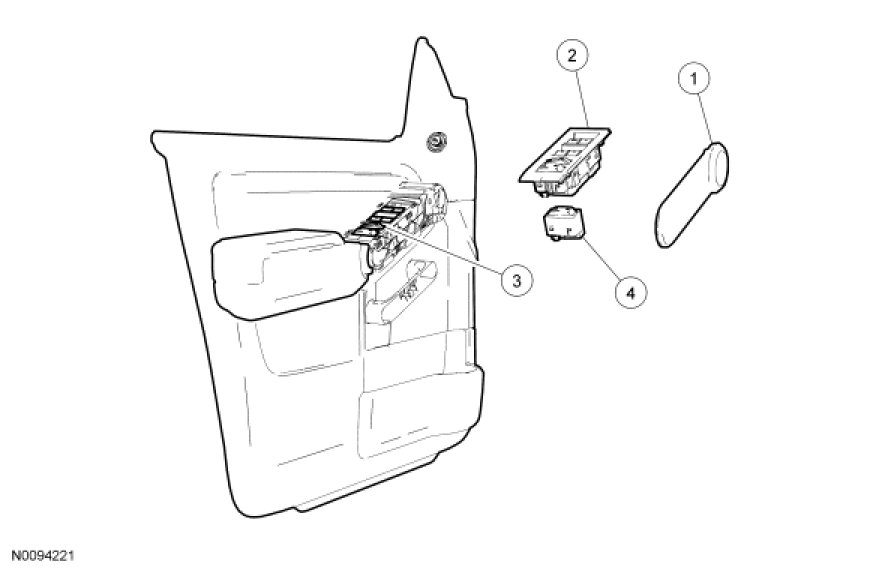

NOTE: The LH side is shown, the RH side is similar.











Removal and Installation

1. Remove the interior door handle cover.

2. Remove the front door switch bezel.
- Release the 4 retaining tabs.

3. Disconnect the door lock control switch and window control switch electrical connectors.

4. Remove the door lock control switch.
- Release the 4 retaining tabs.

5. To install, reverse the removal procedure.
