Steering Angle Sensor: Service and Repair

Steering Wheel Rotation Sensor









Removal and Installation

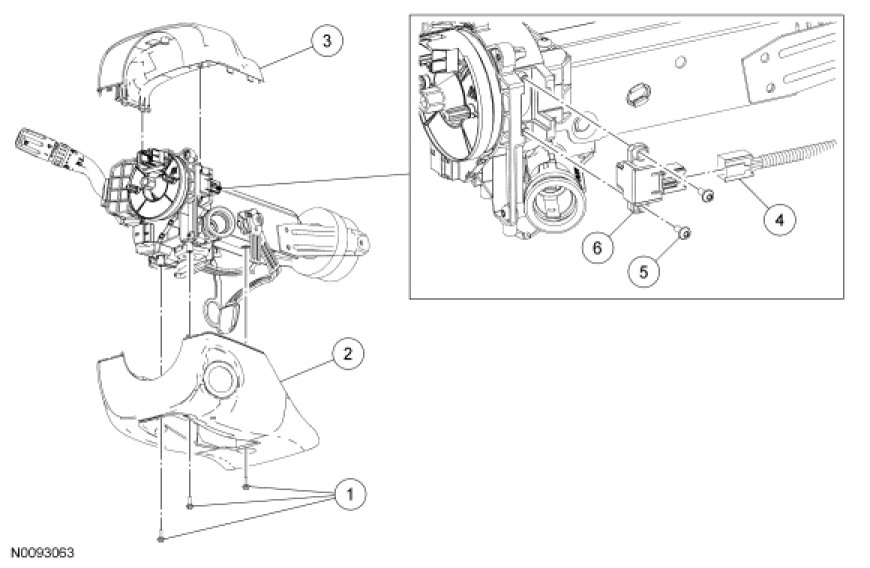

1. Remove the 3 lower steering column cover bolts and the lower steering column cover.

2. Remove the upper steering column cover.

3. Disconnect the steering wheel rotation sensor electrical connector.

4. Remove the 2 screws and the steering wheel rotation sensor.

5. To install, reverse the removal procedure.
