Traction Control Switch: Service and Repair

Stability/Traction Control Switch

Removal and Installation

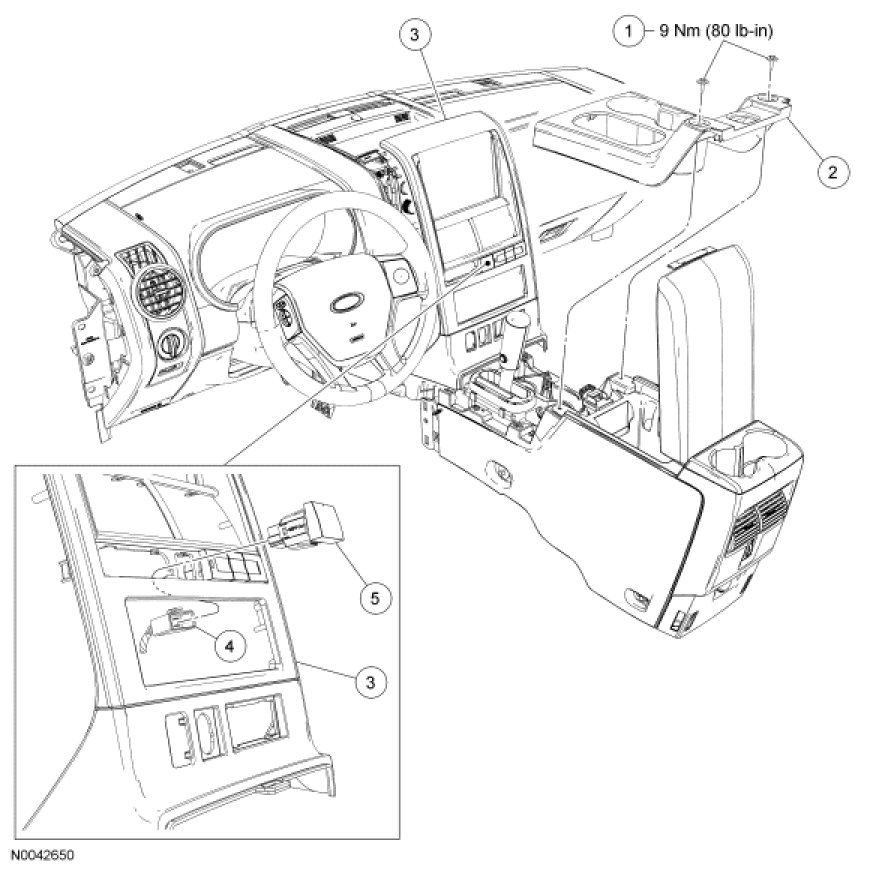

1. Remove the 2 floor console center finish panel screws and the floor console center finish panel.
- To install, tighten to 9 Nm (80 lb-in).

2. Apply the parking brake.

3. Move the gear selector lever to the D1 position.

4. Position the instrument panel center finish panel away from the instrument panel.

5. Disconnect the stability/traction control switch electrical connector and remove the stability/traction control switch from the instrument panel center finish panel.

6. To install, reverse the removal procedure.
