Blower Motor Switch: Service and Repair

Blower Motor Speed Control









Removal and Installation

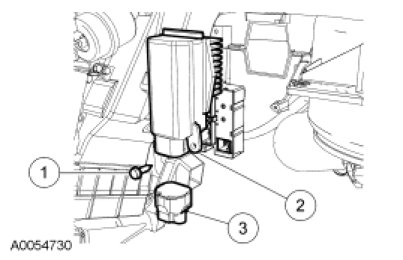

1. Remove the blower motor speed control screw.

2. Remove the blower motor speed control.

3. Disconnect the blower motor speed control electrical connector.

4. To install, reverse the removal procedure.
