Ambient Light Sensor: Service and Repair

Light Sensor

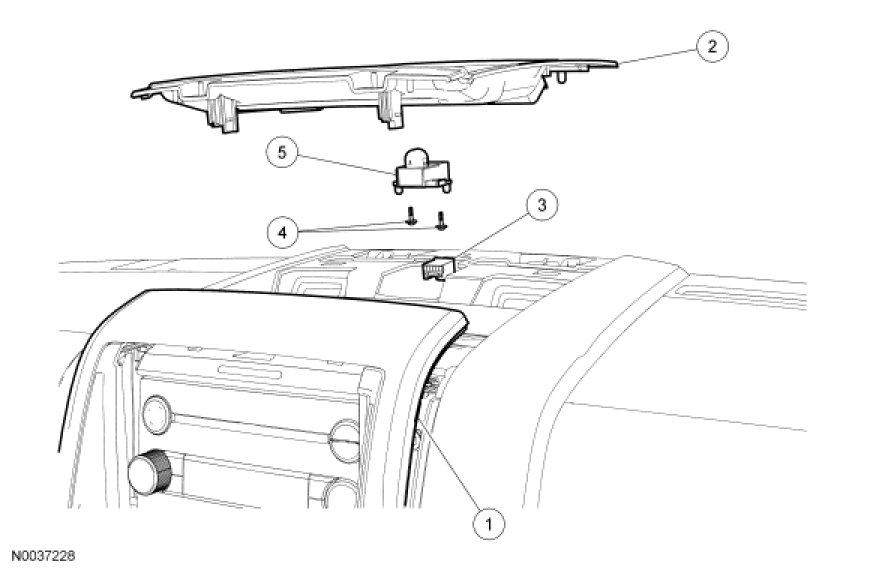

Removal and Installation

1. Position the top portion of the lower center instrument panel finish panel rearward.

2. Remove the upper center instrument panel finish panel.
- Disconnect the electrical connector.

3. Remove the 2 screws and the light sensor.

4. To install, reverse the removal procedure.
