6R80 Disassembly and Assembly of Subassemblies

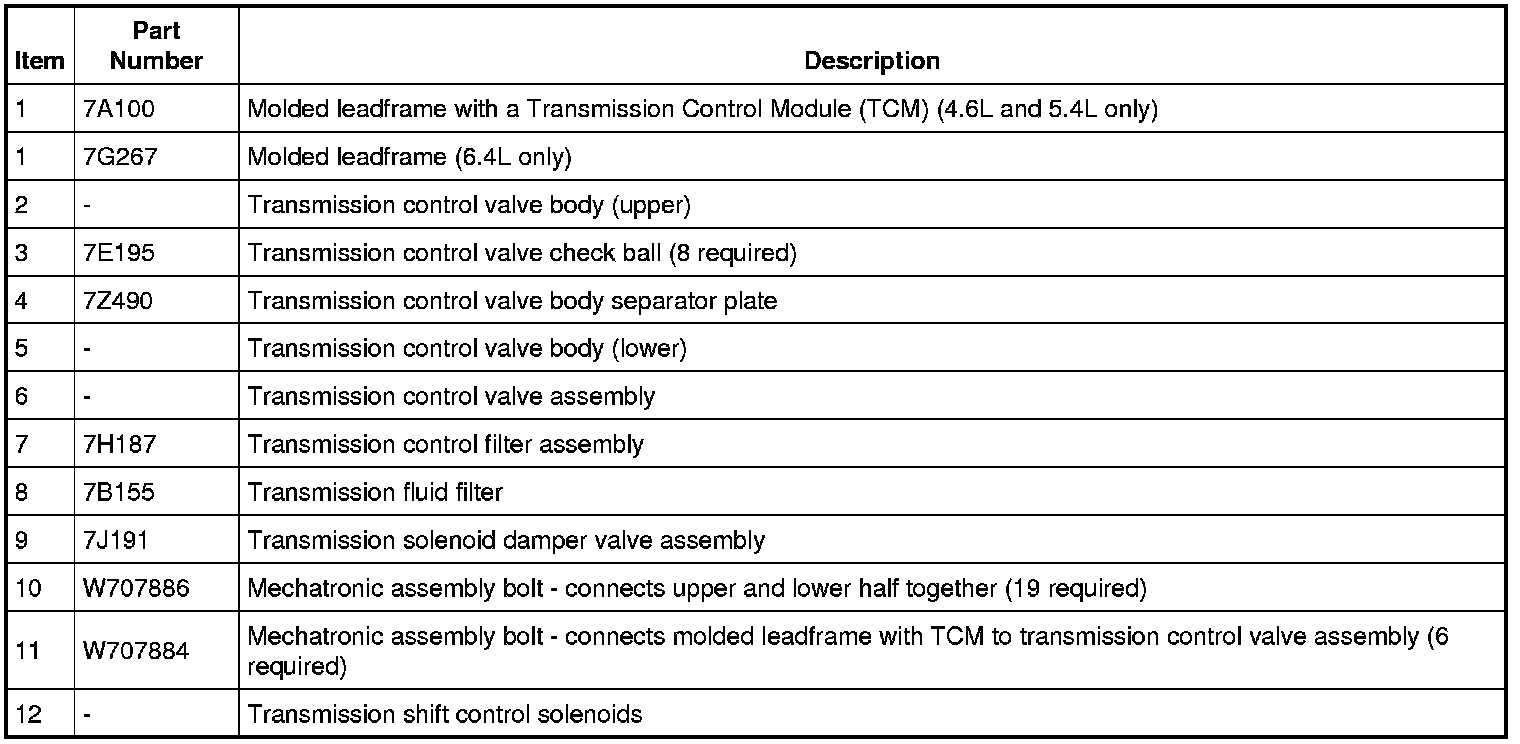

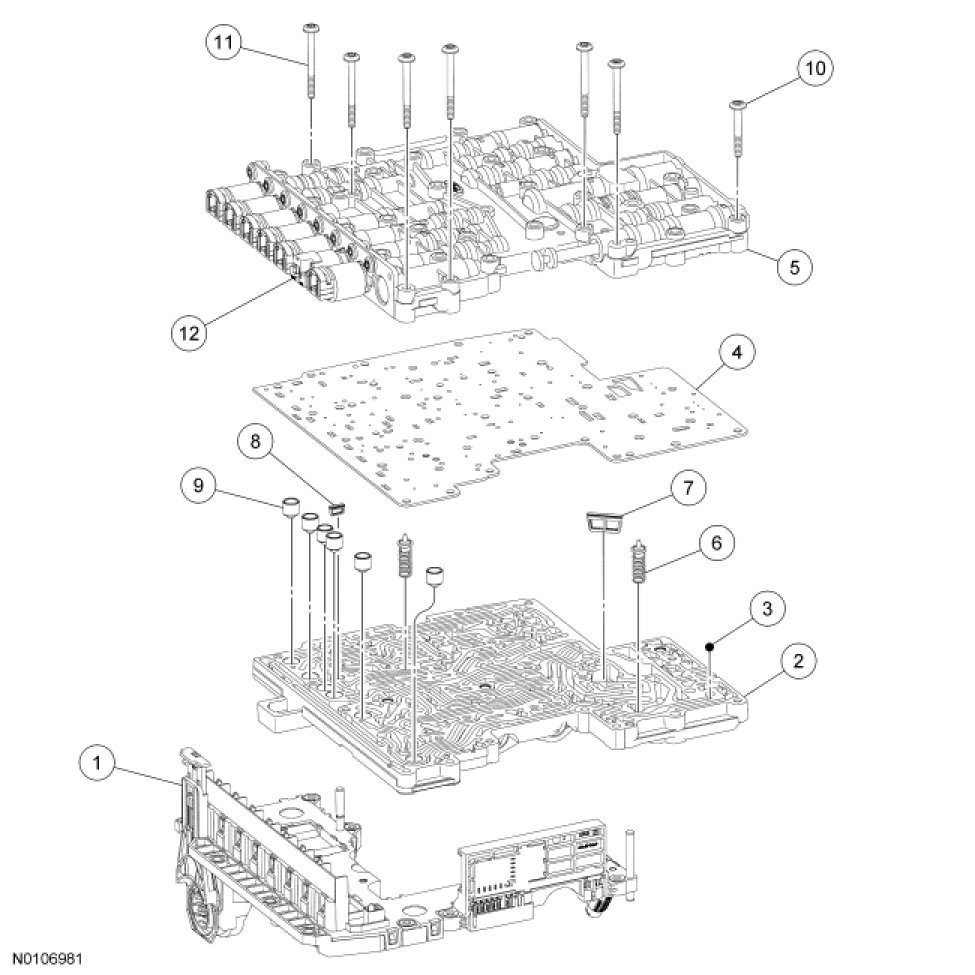

Mechatronic Assembly





Mechatronic

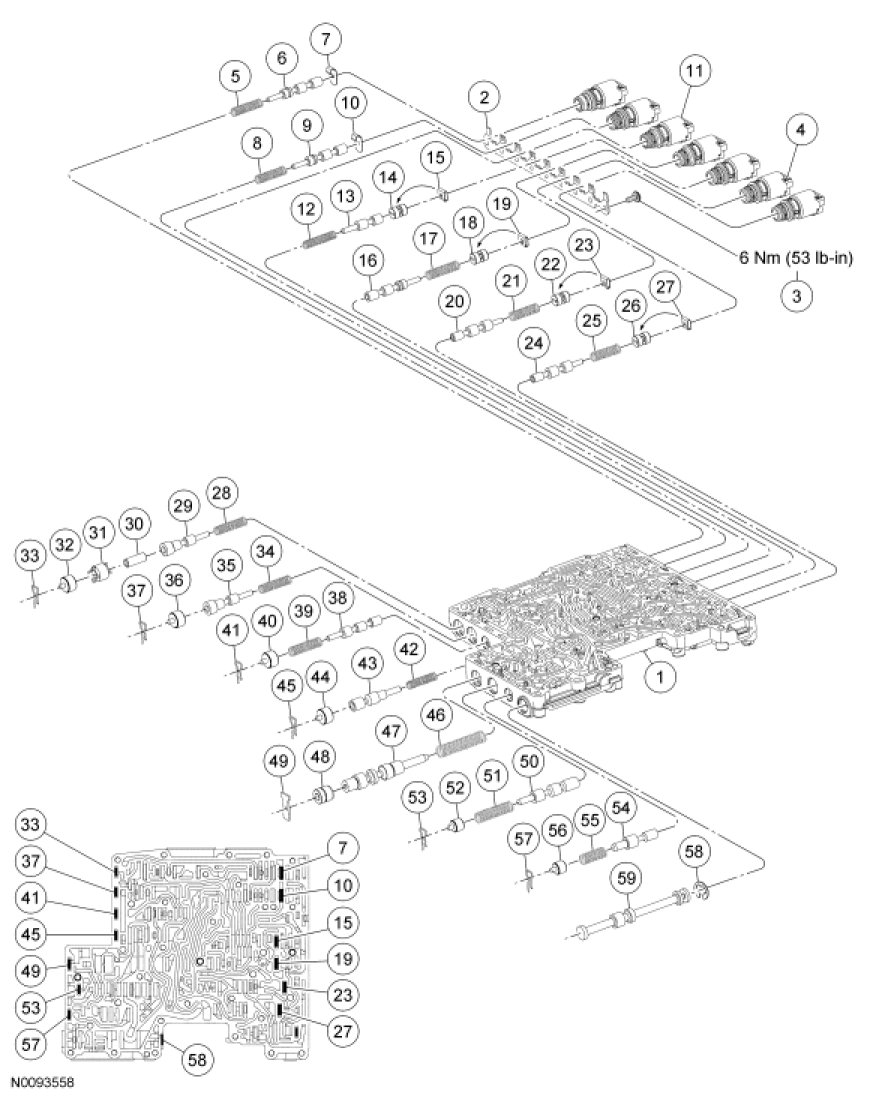

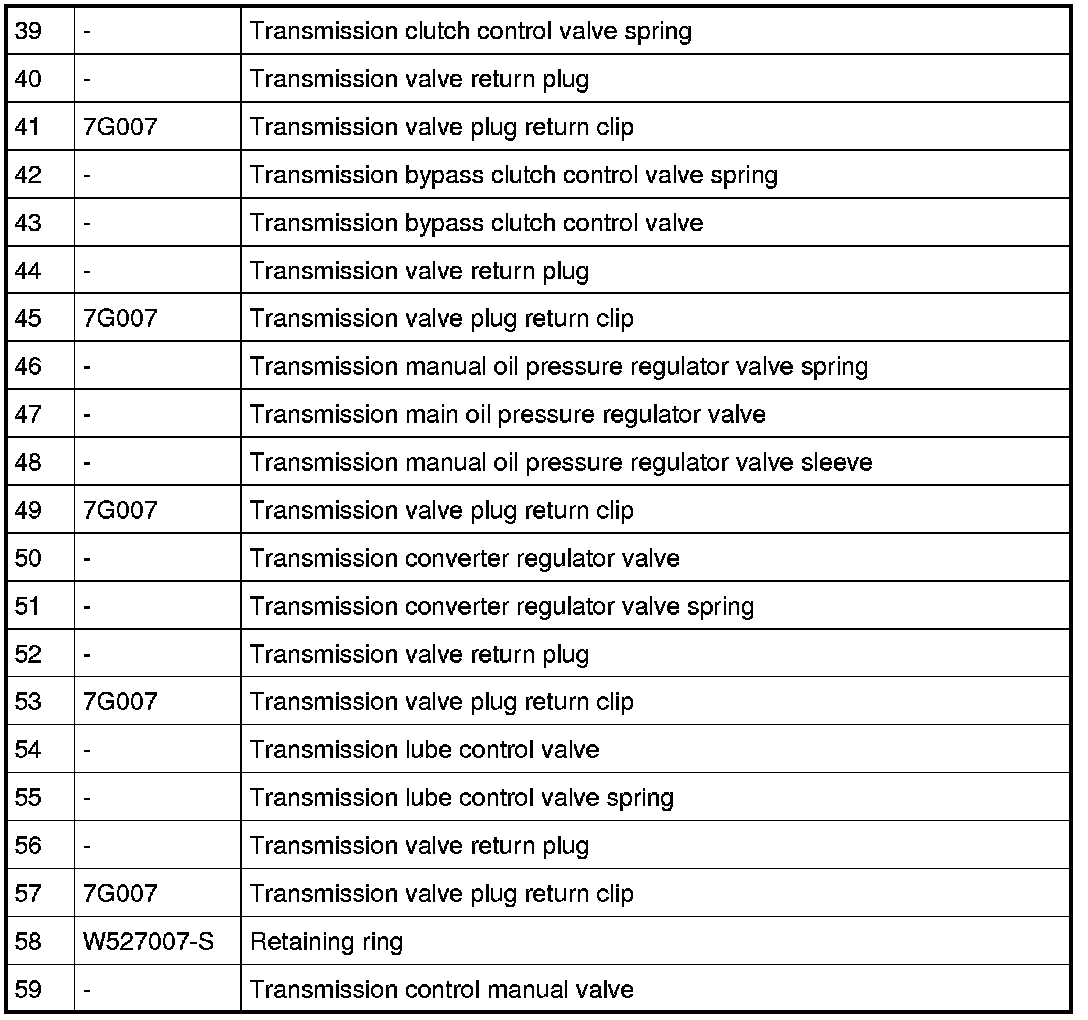

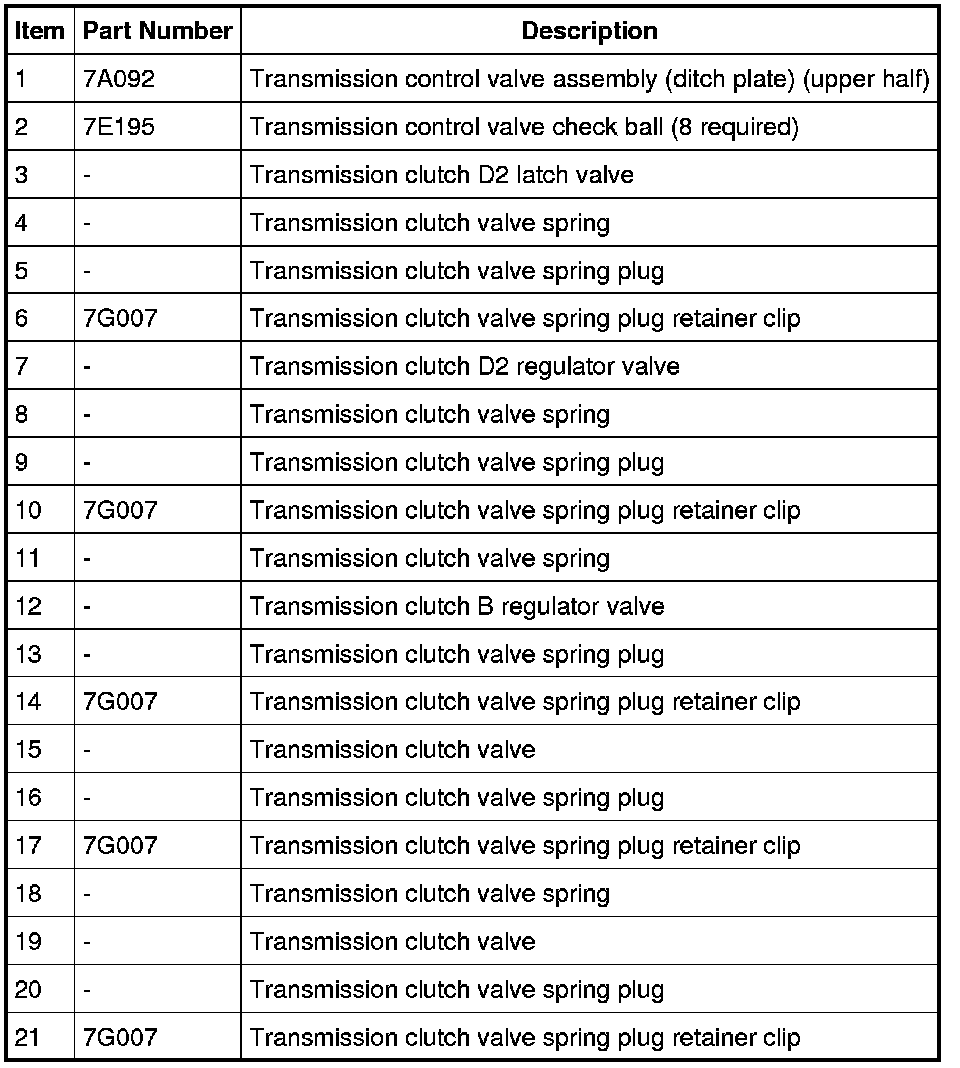

Mechatronic Upper Half

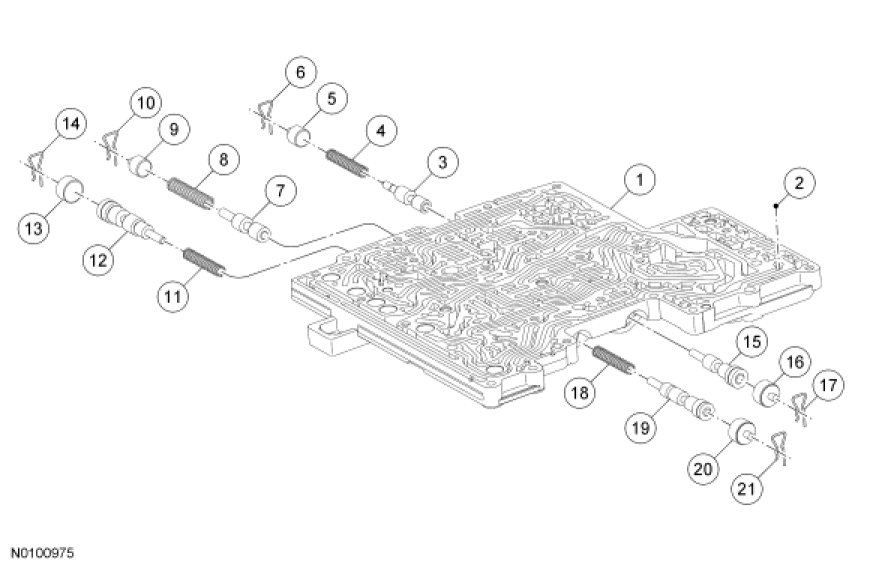

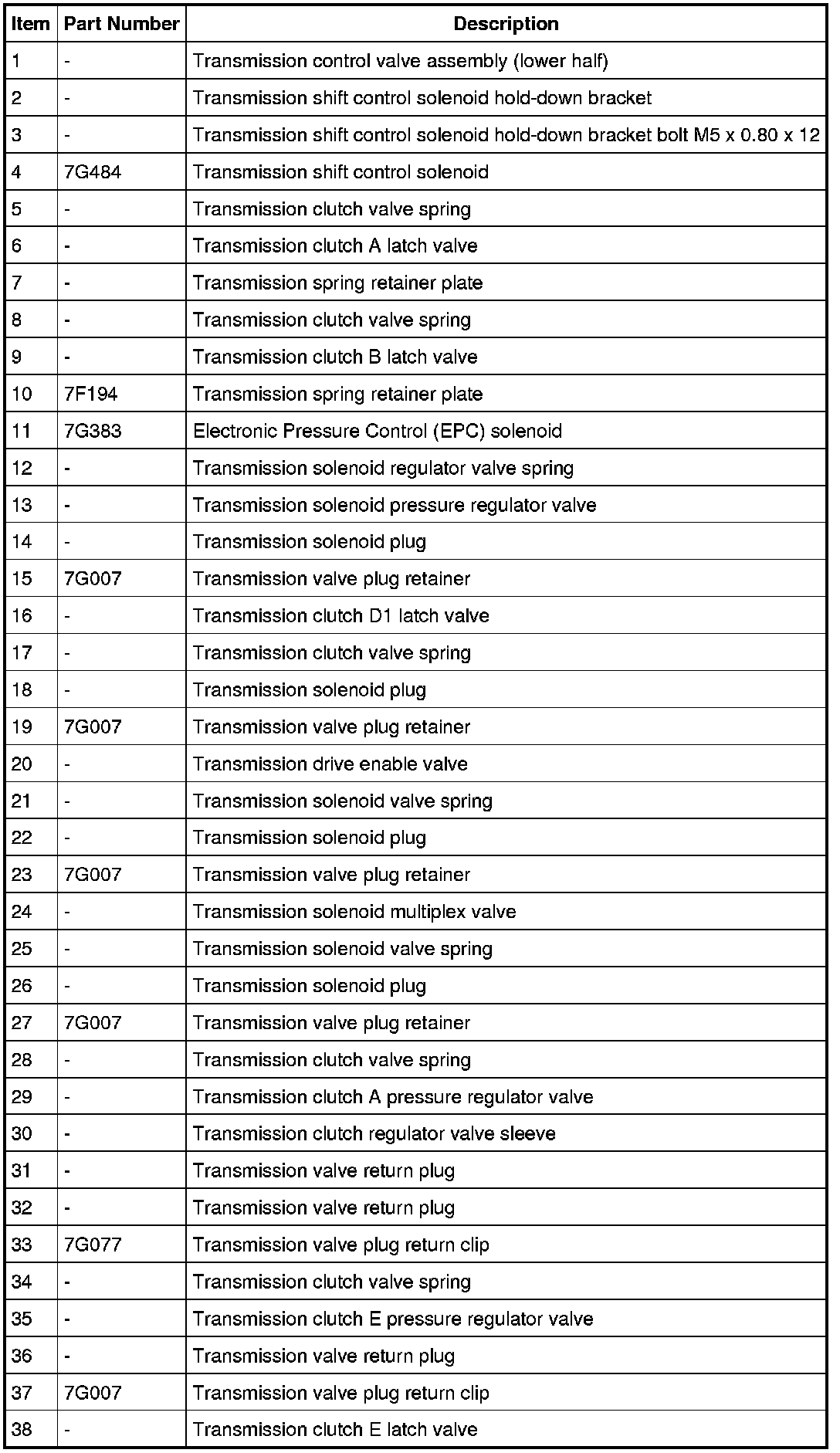

Mechatronic Lower Half

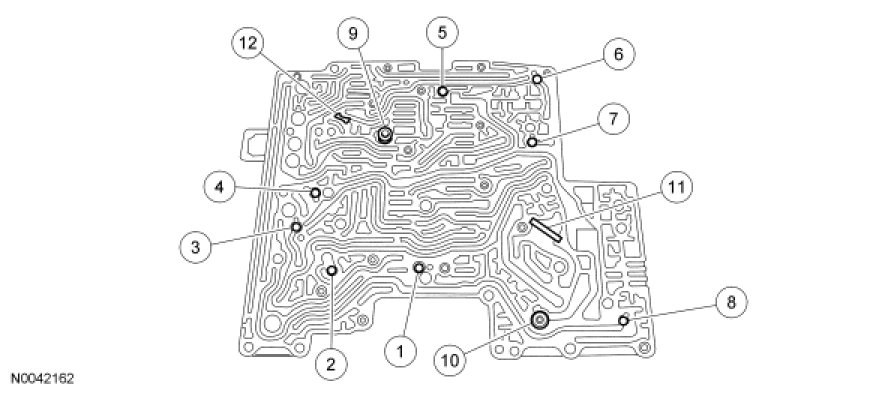

Check Ball Location
