Crankshaft Position Sensor: Service and Repair

Crankshaft Position (CKP) Sensor - 6.2L (2V)









Removal

1. Remove the intake manifold. For additional information, refer to Engine.

2. Disconnect the Crankshaft Position (CKP) sensor electrical connector.

3. Remove the bolt and the CKP sensor.

Installation

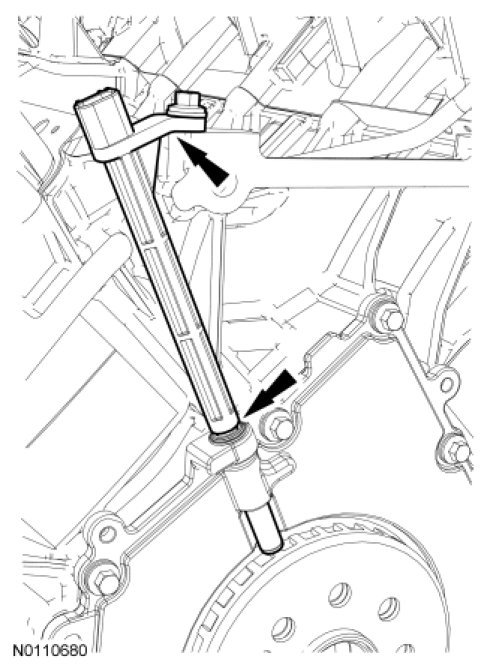

1. NOTICE: The Crankshaft Position (CKP) sensor must be positioned into the fitting on the crankshaft rear seal retainer plate and be flush against the boss on the engine block before the bolt is installed. If the CKP sensor is installed incorrectly, the CKP sensor can be damaged.

Position the CKP sensor and install the bolt.
- Tighten to 10 Nm (89 lb-in).





2. Connect the CKP sensor electrical connector.

3. Install the intake manifold. For additional information, refer to Engine.

4. Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
